More Than 8K: An Ultimate All-in-One Media Player

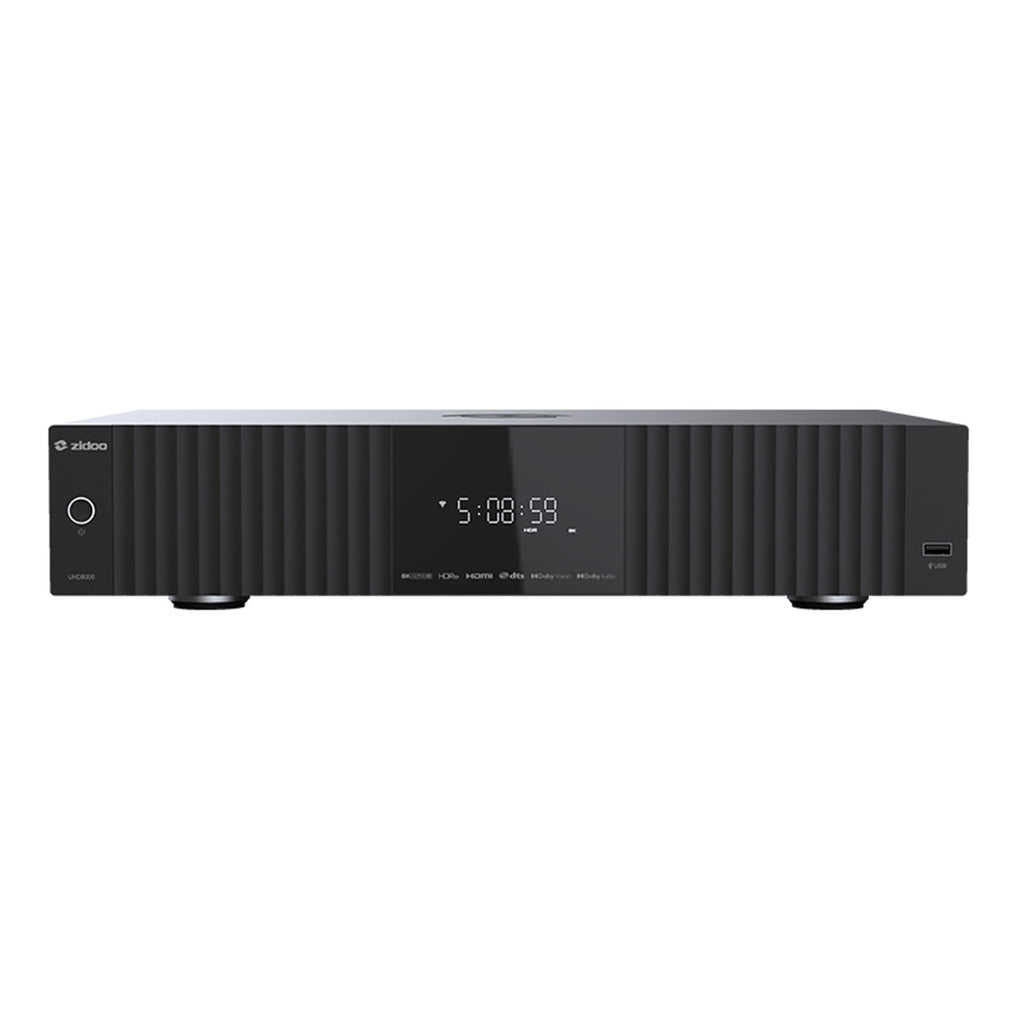

The Zidoo UHD8000 is an 8K media player compatible with Dolby Vision and HDR10+, and a music streamer supporting Hi-Fi streaming and decoding. It features refined craftsmanship, a powerful Amlogic S928X-K chipset, 8GB DDR4 RAM, and 64GB eMMC storage.
Features
- High-Performance Music Streamer Functionality
- Dual HDMI Audio-Video Separation Technology
- HDMI Main Output with HDMI 2.1 Support
- Up to 8K@60Hz Video Output
- Dedicated HDMI Audio Only Output
- High-Precision Audio-Specific Crystal Oscillators
- Audio Clock Reconstruction For Improved Sound Quality
- Built-in DAC Functionality (ESS9069Q DAC Chip)
- TIDAL Connect Support
- UPnP/DLNA Streaming Support
- Integrated Music-Service API Support
Powerful CPU
The UHD8000 is equipped with the Amlogic S928X-K ARM A76 + A55 five-core processor using 12nm technology. It features a 3.2 TOPS NPU and built-in AI picture-quality optimization engine, delivering strong processing capability and high-performance audio/video playback.
Large Memory, Smooth Response
8GB of next-generation DDR4 RAM provides fast and smooth playback response for movies and music. 64GB eMMC internal storage supports installing numerous applications, creating more possibilities for home entertainment.
Wi-Fi and Bluetooth
The UHD8000 includes a built-in 2.4GHz + 5GHz dual-band 2R2T MIMO Wi-Fi module supporting Wi-Fi 6, with wireless transmission speeds up to 1201 Mbps. It also features Bluetooth 5.2 for connecting compatible devices such as remotes, mice, speakers, and headphones.
Dual HDMI A/V Separate Output
Zidoo’s dual HDMI audio-video separation technology uses digital separation to help isolate interference. The HDMI Main port supports HDMI 2.1 and up to 8K@60P output, while the HDMI Audio Only port is designed for high-quality audio transmission to compatible AV receivers.
XMOS + Dual Crystal Oscillators
The UHD8000 is equipped with an XMOS chip designed for high-resolution audio transmission. Two high-precision crystal oscillators, 45.1584MHz and 49.152MHz, correspond to 44.1kHz and 48kHz multiplier sampling rates, helping reduce jitter and support accurate audio decoding.
Hi-End Hi-Fi Audio Decoding
With a USB DAC input, the UHD8000 can be connected to an external music streamer with USB output and used as a high-performance audio decoder. It uses the ESS9069Q DAC chip for pure, high-resolution sound output.
ESS9069Q Flagship DAC
The UHD8000 uses the ESS9069Q DAC, supporting up to DSD512 and PCM768@32-bit decoding. Claimed audio performance includes 0.00015% THD+N, 123 dB SNR, and 123 dB Dynamic Range.
Fully Balanced Signal
The UHD8000 uses a fully balanced design for DAC decoding and XLR output. RCA stereo output signals are also derived from the balanced output, helping improve noise immunity, channel separation, and signal stability.
Exquisite Craftsmanship, Handpicked Components
The UHD8000’s analog output is designed for audiophile-grade quality, with meticulous circuit design and high-quality materials. It uses a gold-plated PCB, four audiophile-grade operational amplifiers, and selected high-end components including Nichicon, WIMA, and ELNA capacitors.
Independent Dual Power Supplies
The UHD8000 uses independent power supplies for digital and analog circuits. A large toroidal linear power supply provides clean power for audio components, while a separate switching power supply is designed for digital circuits, helping improve audio and video output quality.
