Unlock powerful, flexible whole-home audio with the Yamaha XDA-AMP5400RK 8-Channel Multi-Room Amplifier, engineered specifically for custom installations. This slim 1U Class D amplifier delivers eight channels of audiophile-grade power, bridgeable for high-output applications and fully capable of driving 4-ohm loads. With four configurable audio buses, trigger I/O for seamless syncing with Yamaha’s XDA-QS5400RK, and advanced features like audio sensing and differential circuit design to eliminate ground loop hum, the XDA-AMP5400RK ensures clean, dynamic sound throughout the home. Built for integrators, it offers rack-friendly design, flexible zone expansion, and rock-solid performance for multi-room and custom home theater systems.

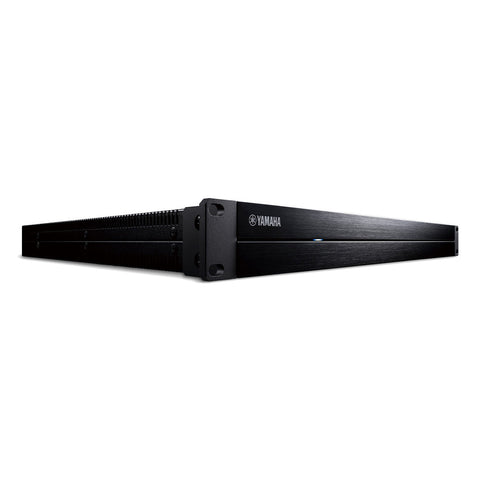

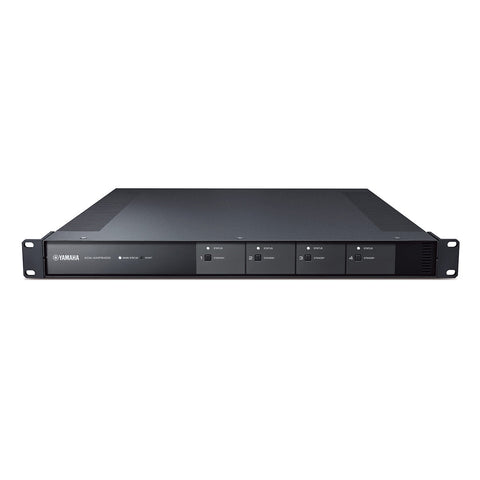

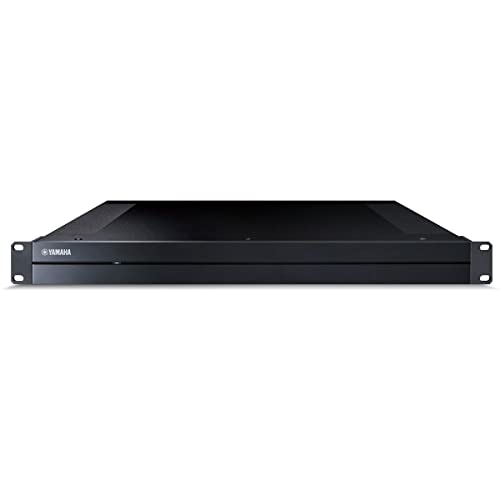

Yamaha XDA-AMP5400RKBL 8-Channel Multi-Room Home Theater Amplifier
mon0000024217
B09K4CQK7L
- $1,699.95
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
Unlock powerful, flexible whole-home audio with the Yamaha XDA-AMP5400RK 8-Channel Multi-Room Amplifier, engineered specifically for custom installations. This slim 1U Class D amplifier delivers eight channels of audiophile-grade power, bridgeable for high-output applications and fully capable of driving 4-ohm loads. With four configurable audio buses, trigger I/O for seamless syncing with Yamaha’s XDA-QS5400RK, and advanced features like audio sensing and differential circuit design to eliminate ground loop hum, the XDA-AMP5400RK ensures clean, dynamic sound throughout the home. Built for integrators, it offers rack-friendly design, flexible zone expansion, and rock-solid performance for multi-room and custom home theater systems.
- Eight Class D channels, bridgeable, 4-ohm ready
- Four audio buses with jumper flexibility
- Trigger I/O for power sync with XDA-QS5400RK
- Integration features: audio sensing, IR I/O
- 1U rack enclosure with removable ears and faceplate
- Description: 2-channel × 4-zone multi-room amplifier (8 channels total)
- Minimum Speaker Load Capability: 4 Ω
- BTL Connection: Yes

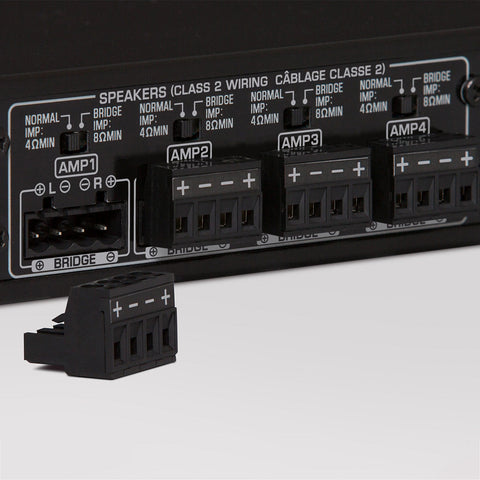

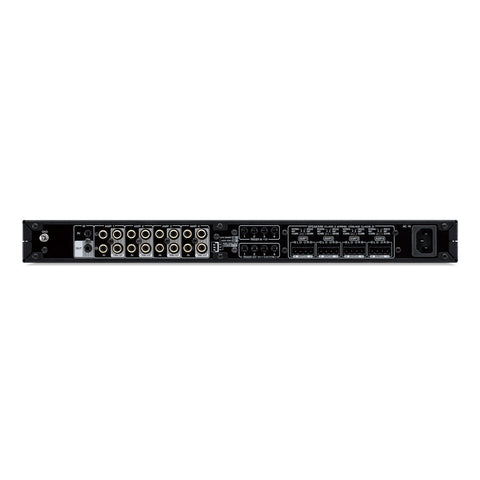

- Speaker Output Terminal: 4 (Euroblock)
- Audio Input Terminal: RCA × 4
- Audio Output Terminal: RCA (2-ch through out) × 4
- Trigger In / Out: 4 / 4
- Remote In / Out: 1 / 1
- Rated Output Power (1 kHz, 0.9% THD, 2ch driven): Normal (4 / 8 Ω): 90 / 50 W, Bridge (8 Ω): 100 W
- Rated Output Power (1 kHz, 0.9% THD, 1ch driven): Normal (4 / 8 Ω): 100 / 50 W, Bridge (8 Ω): 200 W
- Dynamic Power (20 Hz–20 kHz, 0.08% THD, 2ch, 20 ms burst): Normal (4 / 8 Ω): 80 / 40 W, Bridge (8 Ω): 150 W
- Dynamic Power (1 kHz, 0.9% THD, 2ch, 20 ms burst): Normal (4 / 8 Ω): 100 / 50 W, Bridge (8 Ω): 200 W
- Dynamic Power (1 kHz, 0.9% THD, all channels driven, 20 ms burst): Normal (4 / 8 Ω): 80 / 50 W, Bridge (8 Ω): 170 W
- Maximum Effective Output Power [1ch driven, 1 kHz, 10% THD]: Normal (4 / 8 Ω): 130 / 65 W, Bridge (8 Ω): 260 W
- Total Harmonic Distortion [SP OUT, 20 Hz–20 kHz, 25 W, 8 Ω]: 0.04%
- Frequency Response [SP OUT AUX IN]: 5 Hz – 40 kHz
- Signal to Noise Ratio [SP OUT AUX IN]: 108 dB
- Maximum Input Signal [PRE OUT L / R, 0.9% THD]: 1 V
- Gain [SP OUT 1 V Input]: 25.8 dB
- Input Sensitivity: 150 mV for 1 W @ 8 Ω / 1.0 V for max (50 W) @ 8 Ω
- Power Consumption (All Zones On): 130 W
- Power Consumption (No Signal Condition): 32 W
- Audio Sense (All Zones Off): 14.8 W
- Standby Power Consumption (Audio Sense Disabled): 0.3 W
- Standby Power Consumption (Audio Sense Enabled / Mode): 0.5 W
- Power Management (Auto Power Standby): Yes (On / Off)
- Dimensions (W × H × D) in: 17-1/4″ × 1-3/4″ × 17-3/8″
- Rack-Mount Dimensions (W × H × D): 18-7/8″ × 1-3/4″ × 17-3/8″
- Weight: 13.2 lbs.

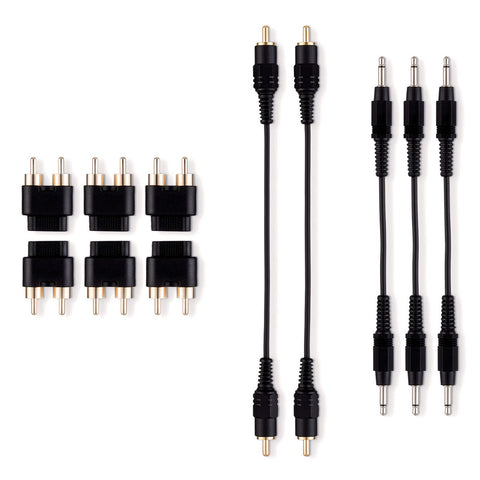

In the box:
- XDA-AMP5400RK 8 Channel Multi-Room Amplifier
- (6) Jumper Plugs
- (2) Brackets
- (4) Euroblock Plug
- Monaural RCA Cable
- (4) Non-Skid Pads
- (3) Control Cable
- (4) Screws
- Power Cord
- Manual
PRODUCT INFORMATION:
Model: XDA-AMP5400RKBL | Barcode: 027108957685
