For Custom Installation, High Audio Quality and Easy to Install
The use of high-quality materials for all drivers (Kevlar for the woofer, Aluminum for the midrange driver, Titanium for the tweeter) ensures superb sound quality from any source. Installation is made easy with gold plated push-type speaker terminals, paintable grills/frames, a cut-out template and a paint protective cover.

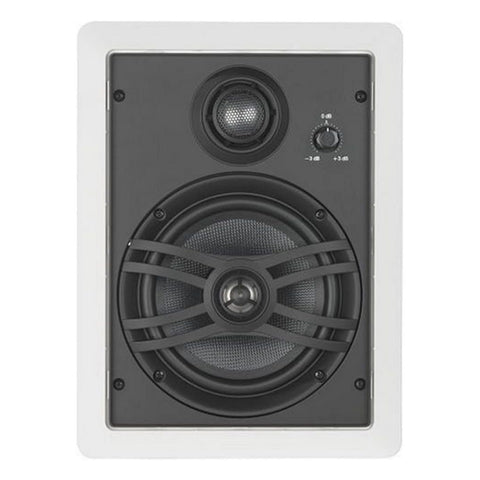

Swivel Tweeter and Midrange Driver, High-Level Adjustment
You can swivel the tweeter and midrange driver to " aim" the high frequency sounds toward the main listening position. To do so, simply press on the edge of the tweeter to change the direction it faces. You can also change the high frequency level of the tweeter by using a "High-Level" adjustor to suit the customer's taste or installation environment.

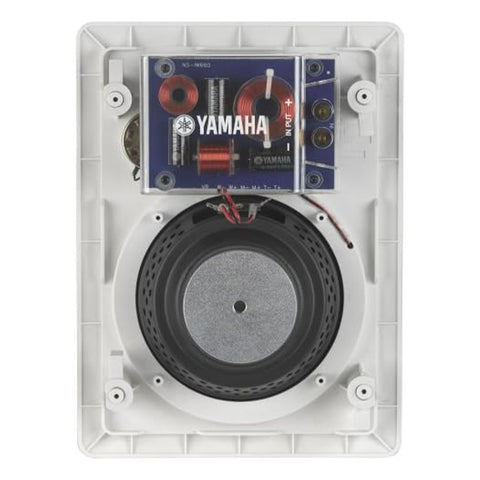

The NS-IW660 features a customized high quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network.
SPECIFICATIONS
Recommended Usage: In-wall front / Surround speakers
Type: 3-way in-wall
Woofers: 6-1/2" Kevlar® cone woofer
MidRange Driver: 1-5/8" aluminum dome driver
Tweeters: 1" titanium dome tweeter
Swivel Tweeter and Midrange Driver: Yes
Paintable Grill with Protective Cover Included: Yes
Frequency Response: 50 Hz - 28 kHz
Sensitivity: 88 dB/2.83 V/1 m
Input Power (Max / Nominal): 150 W / 50 W
Impedance: 8 ohms
Product Dimensions (W x H x D): 11-5/16" x 8-29/32" x 3-13/16"

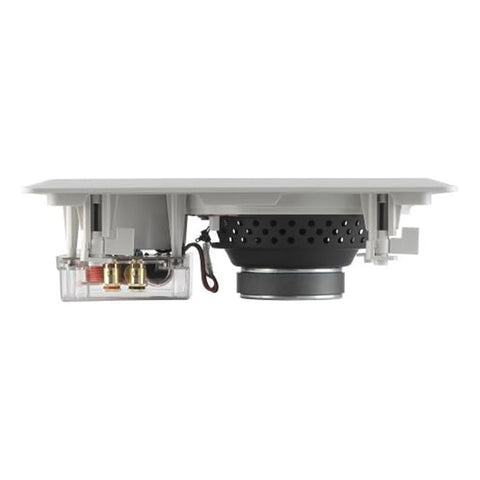

Mounting Depth: 3-1/16"
Product Weight (lbs. each): 4.4
DESCRIPTION
Easy-to-install, in-wall front/center speaker system delivers high-performance sound for the most demanding custom applications.
Features
Versatile, Perfect Design for Front & Center Channels
For Custom Installation, High Audio Quality and Easy to Install
The use of high-quality materials for all drivers (Kevlar for the woofer, Aluminum for the midrange driver, Titanium for the tweeter) ensures superb sound quality from any source. Installation is made easy with gold plated push-type speaker terminals, paintable grills/frames, a cut-out template and a paint protective cover.
Swivel Tweeter and Midrange Driver, High-Level Adjustment
You can swivel the tweeter and midrange driver to " aim" the high frequency sounds toward the main listening position. To do so, simply press on the edge of the tweeter to change the direction it faces. You can also change the high frequency level of the tweeter by using a "High-Level" adjustor to suit the customer's taste or installation environment.
The NS-IW660 features a customized high quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network.
SPECIFICATIONS
Recommended Usage: In-wall front / Surround speakers
Type: 3-way in-wall
Woofers: 6-1/2" Kevlar® cone woofer
MidRange Driver: 1-5/8" aluminum dome driver
Tweeters: 1" titanium dome tweeter
Swivel Tweeter and Midrange Driver: Yes
Paintable Grill with Protective Cover Included: Yes
Frequency Response: 50 Hz - 28 kHz
Sensitivity: 88 dB/2.83 V/1 m
Input Power (Max / Nominal): 150 W / 50 W
Impedance: 8 ohms
Product Dimensions (W x H x D): 11-5/16" x 8-29/32" x 3-13/16"
Mounting Depth: 3-1/16"
Product Weight (lbs. each): 4.4
