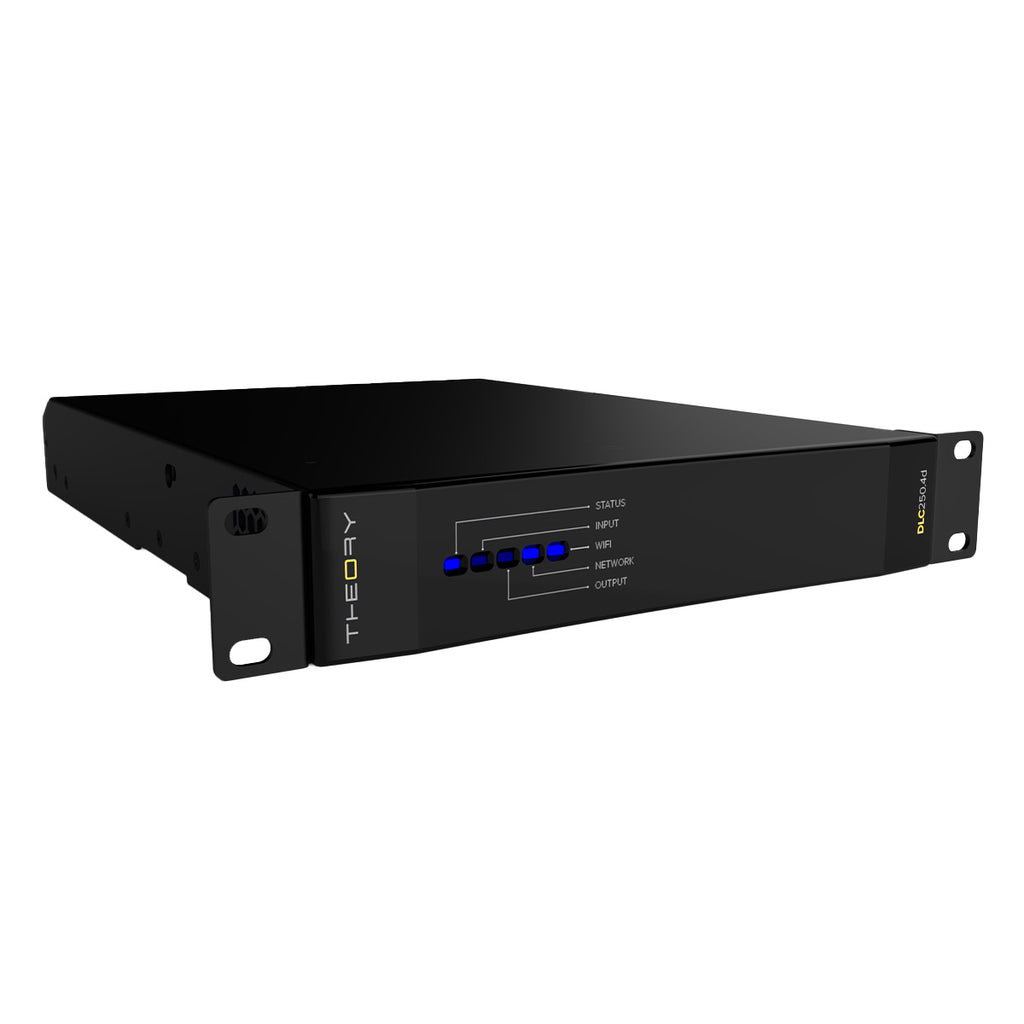

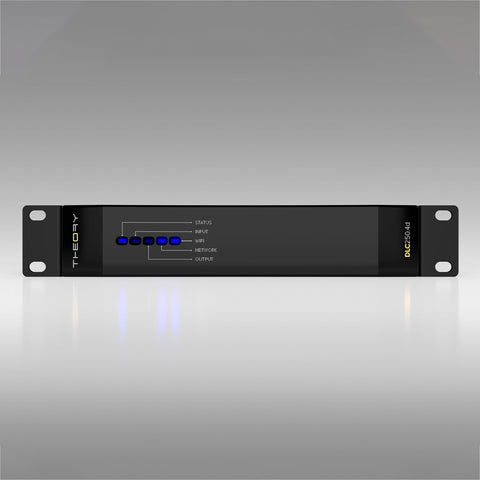

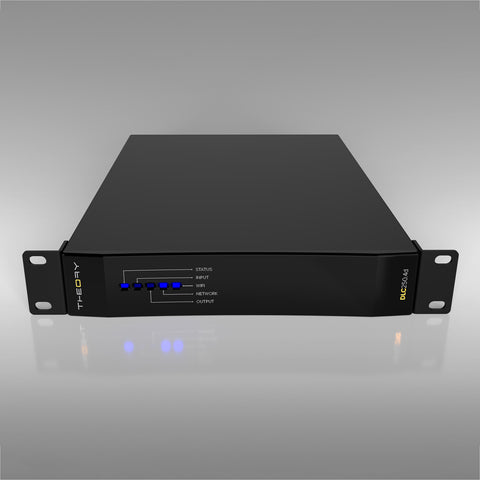

Theory Audio Design DLC-250.4d 4-Channel Amplified Loudspeaker Controller
$2,850.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
Just like its predecessor, the DLC-250.4d is small but mighty and it’s now even mightier with the addition of Dante and AES67. Capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven, this little 6.5lb., one-half rack loudspeaker controller packs a punch into minimal rack space. If that weren’t enough, the DLC-250.4d can drive 70V/100V hi-Z loudspeakers direct - no internal transformer required.
Features
250W per Channel @ 4, 8, 16-ohms and 70V/100V
125W per Channel @ 4, 8, 16-ohms All Channels Driven
125W per Channel @ 70V/100V All Channels Driven
Power Sharing Between Neighboring Channels
Dante / AES67
The DLC-250.4d is equipped with Dante / AES67 audio-over-IP digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog audio cables are required.
Highly Configurable
The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.
SPECIFICATIONS
Operation: LoZ and HiZ (70V/100V) Operation

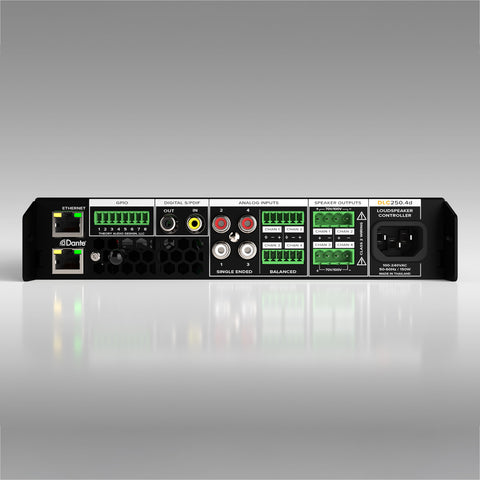

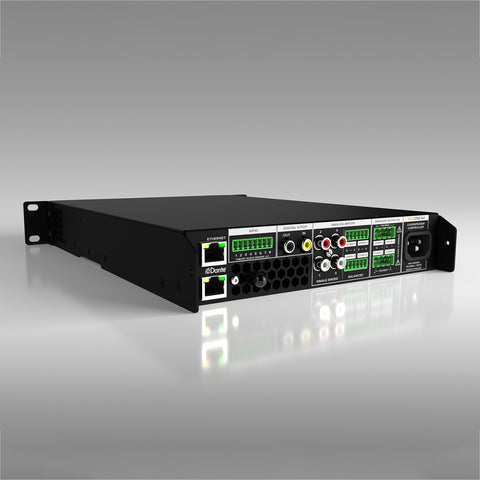

Inputs
4 x Balanced Analog Audio
4 x RCA Unbalanced Analog Audio
1 x S/PDIF Digital Audio (stereo)
4 x Dante / AES67 Digital Audio
Outputs
4 x Speaker Outputs
S/PDIF Digital Audio (stereo)
4 x Dante / AES67 Digital Audio
Trigger: +12VDC
Audio Operation: 48kHz/24-bit
On-Board DSP: 48kHz/32-bit
DSP Features
Loudspeaker Processing For All Theory Models, plus:
Input Matrix Mixer
5 Parametric Input EQ Filters
Input Trim
Stereo/Mono Inputs and Zones
Signal Routing Including Priority Automatic Routing
Audio Ducking
10 Parametric Output EQ Filters
Crossovers
Gain
Delay
Polarity
Peak and RMS Limiters
Frequency Response: 20Hz-20kHz, +/-0.25dB
Power Output
250W per channel @ 4, 8, 16-ohms and 70V/100V
125W per channel @ 4, 8, 16-ohms all channels driven
125W per channel @ 70V/100V all channels driven
Voltage Gain: Variable
Input Sensitivity (selectable)
+14dBu
+4dBu
-10dBV (Unbalanced RCA)
Power Requirements
Standby: <1W
(1/8 power, all ch. driven): 70W
Idle Noise(A-Wt): -78dBV
Signal to Noise Ratio: >106dB
Distortion (1kHz, 1dB below max output): <0.02%
AC Operation: 100V-240VAC, 50-60Hz
Terminals: Eurblock Connectors
Dimensions (W x H x D): 8.7" x 1.75" x 11.7"
Net Weight: 6.5 lbs.
