The TEAC W-1200 is a dual cassette deck that combines classic analog recording features with modern digital capabilities. It supports two one-way cassette mechanisms, allowing simultaneous recording on both decks, ideal for creating duplicate tapes. The deck includes a range of features for enhanced performance, such as a noise reduction system for improved playback quality, a pitch control to adjust tape speed, and Return-to-Zero (RTZ) functions for easy navigation.
Key features also include mic input with mixing for karaoke or speech recording, a dual-mode REC MUTE function for track gaps, and one-touch tape dubbing for easy duplication. The W-1200 is equipped with a USB digital output for archiving tapes in CD-quality (48kHz/16-bit PCM) to a computer, enabling users to enjoy their tape collections digitally. It also offers a timer REC/Play function for scheduled recordings with a third-party audio timer. The fluorescent display provides clear operational details, while the system's high-quality materials ensure reliable and versatile performance.

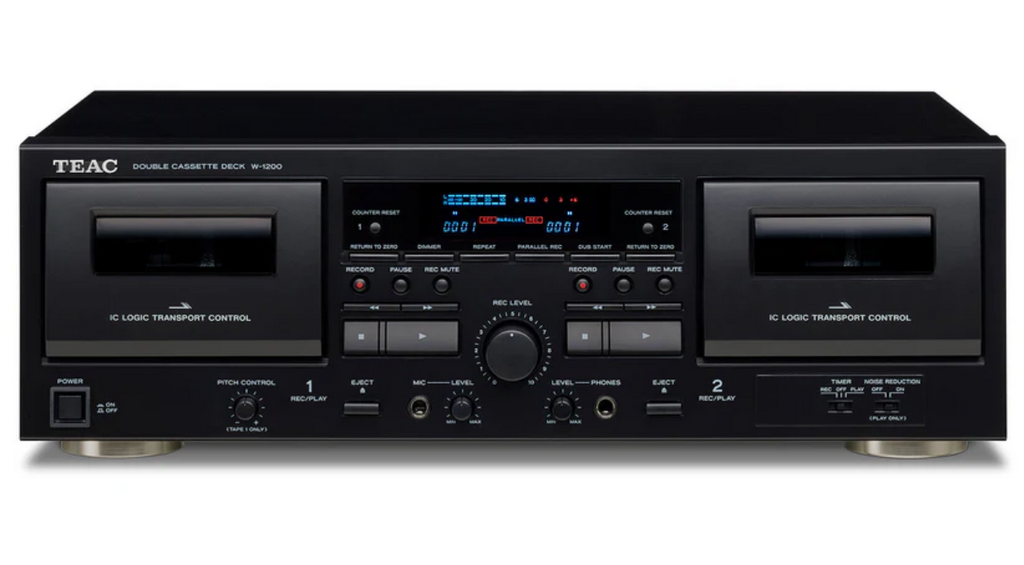

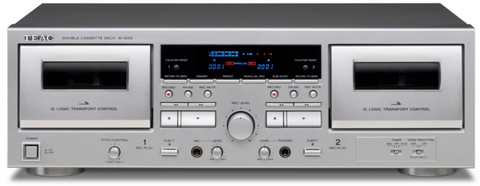

TEAC W-1200 Dual Cassette Deck
mon0000023356
B07G9NBW1L
- $599.99
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The TEAC W-1200 is a dual cassette deck that combines classic analog recording features with modern digital capabilities. It supports two one-way cassette mechanisms, allowing simultaneous recording on both decks, ideal for creating duplicate tapes. The deck includes a range of features for enhanced performance, such as a noise reduction system for improved playback quality, a pitch control to adjust tape speed, and Return-to-Zero (RTZ) functions for easy navigation.
Key features also include mic input with mixing for karaoke or speech recording, a dual-mode REC MUTE function for track gaps, and one-touch tape dubbing for easy duplication. The W-1200 is equipped with a USB digital output for archiving tapes in CD-quality (48kHz/16-bit PCM) to a computer, enabling users to enjoy their tape collections digitally. It also offers a timer REC/Play function for scheduled recordings with a third-party audio timer. The fluorescent display provides clear operational details, while the system's high-quality materials ensure reliable and versatile performance.
- Dual Deck for Recording & Playing
- Noise Reduction System
- Pitch Control & RTZ Functions
- Parallel Recording
- Mic Input & Mic Mixing
- USB Digital Output
Accessories

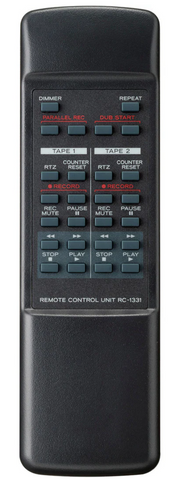

- Remote control (RC-1331)
- AA batteries × 2
- RCA Audio Cable
- Owner's Manual (Including Warranty)
Deck Section
- Tracking System: 4-track, 2-channel Stereo
Head configuration
- REC/PLAY Head: One Each for TAPE1 and TAPE2
- ERASE head: One Each for TAPE1 and TAPE2
- Tape speed: 4.8cm/sec.
- Pitch Control: ±12% (TAPE1 PLAYBACK only)
- Fast Rewinding Time: Approximately 120 Seconds (C-60 tape)
- Wow and Flutter: 0.25% (W.RMS)
Frequency Response
- Chrome tape (Type II): 30 to 15k Hz (±4dB)
- Normal tape (Type I): 30 to 13k Hz (±4dB)
- Total S/N Ratio: 59dB (at max recording level input, A-weight)

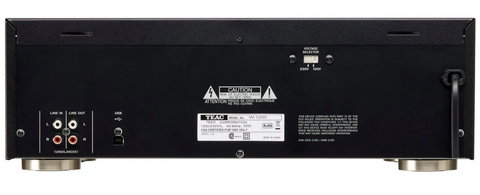

Input/Output
- Analog Audio Input
- Connectors: RCA × 1 pair
- Nominal input level :0.28V
- Input impedance: 33k ohms
Mic Input
- Connector: Standard 6.3mm (1/4") Stereo Jack
- Nominal Input Level: 0.38mV
- Input Impedance: 3k ohms or more
Analog Audio Output
- Connector: RCA × 1 pair
- Nominal output level: 0.46V
- Output Impedance: 1k ohms
Headphone Output
- Connector: Standard 6.3mm (1/4") Stereo Jack
- Output power: 15mW (at 32 ohms loaded)
USB Digital Output
- Connector: USB Type-B
- Protocol: USB2.0 Full Speed
- Sampling Frequency: 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48k Hz
- Bit-Depth: 8 / 16bit
General
- Operating Power: AC 120V, 60Hz
- Power Consumption: 22W
- Weight: 9.3lbs. / 4.2kg
Dimensions
- 17.1"(W) × 5.7"(H) × 11.3"(D) / 435(W) × 145(H) × 285.8(D)mm
PRODUCT INFORMATION:
Model: W-1200B | Barcode: 043774033515
