DESCRIPTION

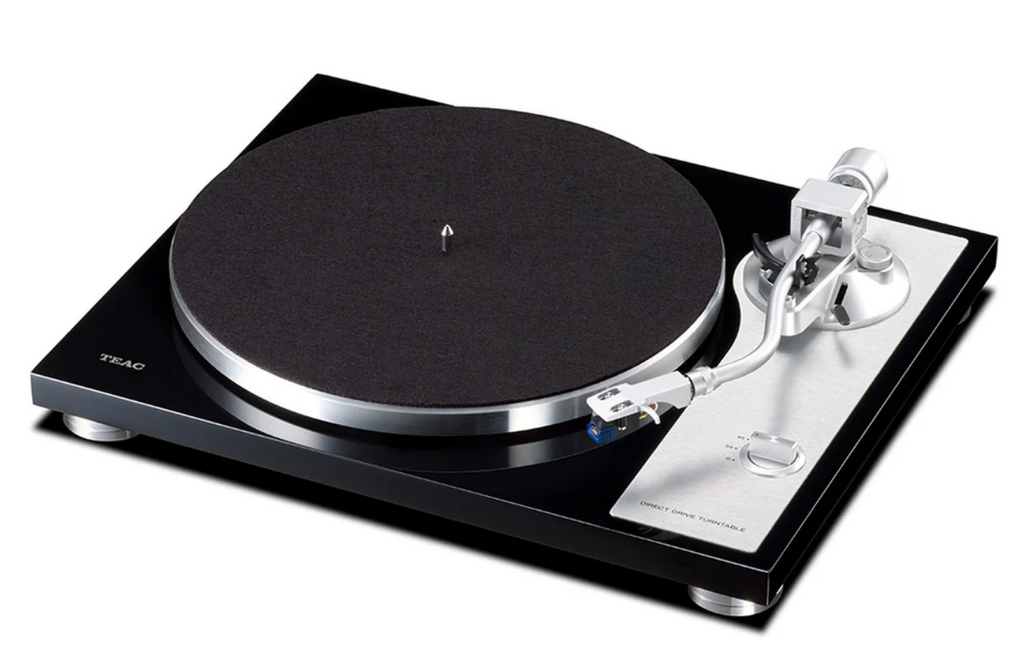

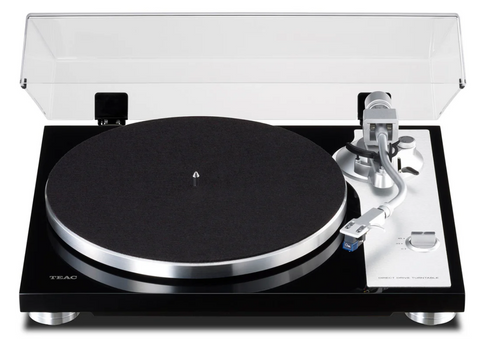

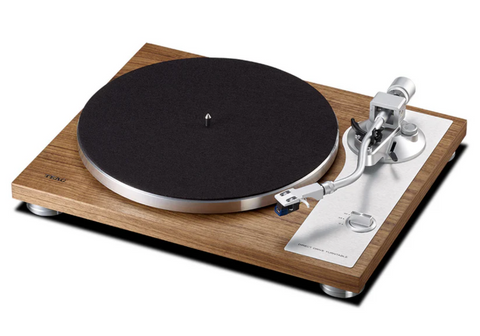

The TEAC TN-4D-SE is a high-quality direct-drive analog turntable designed for crisp and clear sound. It features a sleek, low-profile design made possible by a newly-developed brushless DC servo motor, which provides stable speed and smoother rotation, eliminating the issue of cogging. The tonearm uses knife-edge pivot-point bearings, delivering high-resolution sound that standard bearings cannot match. Additionally, it comes with a highly-regarded Oyster MM cartridge from SUMIKO and a built-in PHONO EQ amplifier, allowing direct connection to hi-fi systems. It also includes precision adjustments for stylus pressure and anti-skating, along with a die-cast aluminum platter and shock-absorbing feet. The turntable supports 33-⅓ and 45 rpm speeds, making it a versatile and stylish choice for audiophiles.

TEAC TN-4D-SE Manual Direct Drive Turntable

  • Sale
  • $ 749.99
  • FREE SHIPPING

Free standard shipping on all orders within the continental US.


Dedicated Support from Start to Finish

  • Concierge-Level Experience tailored to your needs
  • Assistance with Troubleshooting and Product Insights
  • Expert help for Product Set-Up
  • Fast & Free Shipping on all orders
DESCRIPTION

The TEAC TN-4D-SE is a high-quality direct-drive analog turntable designed for crisp and clear sound. It features a sleek, low-profile design made possible by a newly-developed brushless DC servo motor, which provides stable speed and smoother rotation, eliminating the issue of cogging. The tonearm uses knife-edge pivot-point bearings, delivering high-resolution sound that standard bearings cannot match. Additionally, it comes with a highly-regarded Oyster MM cartridge from SUMIKO and a built-in PHONO EQ amplifier, allowing direct connection to hi-fi systems. It also includes precision adjustments for stylus pressure and anti-skating, along with a die-cast aluminum platter and shock-absorbing feet. The turntable supports 33-⅓ and 45 rpm speeds, making it a versatile and stylish choice for audiophiles.

FEATURES
  • Direct-Drive Motor
  • Authentic 2-Speed Turntable
  • Pre-Installed Sumiko Oyster MM Cartridge
  • Die-Cast Aluminum Platter
  • Precision Anti-Skating and Stylus-Pressure Adjustments
  • High Density MDF Cabinet Construction
  • Built-In Phono EQ Pre-Amplifier
  • Insulating Feet with Excellent Shock Absorption

Accessories

  • Felt Mat
  • EP Adapter
  • Counterweight
  • Head-shell (SUMIKO Oyster Installed)
  • Platter
  • Dust Cover
  • Hinges × 2
  • RCA Audio Cable with Ground Terminal
  •  AC Adapter (GPE036W-24015)
  • Owner's Manual (Including Warranty card)
TECHNICAL SPECS

Turntable Section

  • Type: Direct Drive
  • Motor: Brush-less DC Motor
  • Rotation Speeds: 33-⅓ rpm, 45 rpm
  • Wow-and-Flutter: 0.1%
  • S/N Ratio: 67dB or higher (A-weighted, 20kHz LPF)

Turntable (Platter)

  • Material: Aluminum Diecast
  • Diameter: 30cm

Tone-Arm Section

  • Type: S-shaped, Static-balanced
  • Effective Length: 223mm
  • Needle Pressure Range: 0g to 5.0g
  • Compatible Cartridge Weight: 4.0g to 13.0g, 14g to 23g (including Head-shell)

Head-Shell and Cartridge Sections

  • Type: MM-type (SUMIKO Oyster factory installed)
  • Output Voltage: 4.0mV (1kHz)
  • Needle Pressure: 1.5 to 2.5g (appropriate value: 2.3g)
  • Weight: 5.3g
  • Head-shell weight: 10g (including nuts, screws, and wires)
  • Compatible Stylus: Styluses for SUMIKO Oyster

Analog Outputs

  • Connector: RCA Pin jack × 1 pair (PHONO/LINE switchable)

Output Voltage

  • PHONO: 4.0mV (1kHz)
  • LINE: 224mV (–13dBV)

General

  • Operating Power: AC 100 to 240V, 50/60Hz
  • Power Consumption: 2W
  • Standby Power: 0.5W or less
  • Weight: Approx. 6.1kg / 13.5 lbs.

Dimensions

  • (W×H×D) 420 × 117 × 356 mm / 16.5" × 4.6" × 14.0"
