DESCRIPTION

The TN-3B-SE is a high-performance belt-drive turntable designed for audiophiles and vinyl enthusiasts. It features a knife-edge, pivot-point tonearm developed with SAEC for superior stability and resolution. The turntable utilizes a belt-drive mechanism to minimize motor cogging effects, ensuring smooth and precise platter rotation. A pre-installed Audio-Technica AT-VM95E cartridge with an elliptical stylus, along with a built-in MM-type Phono EQ amplifier, allows for high-quality sound with low distortion. The turntable supports 33-⅓ and 45 rpm speeds and includes features like precision anti-skating, adjustable stylus pressure, and excellent shock absorption via insulating feet. With a sleek MDF plinth, honeycomb-patterned bottom panel, and a luxurious multi-layer lacquer finish, the TN-3B-SE combines stylish design with exceptional sound quality.

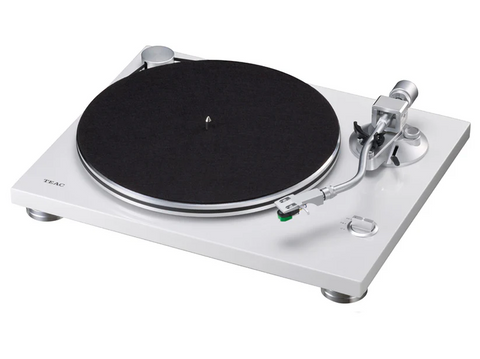

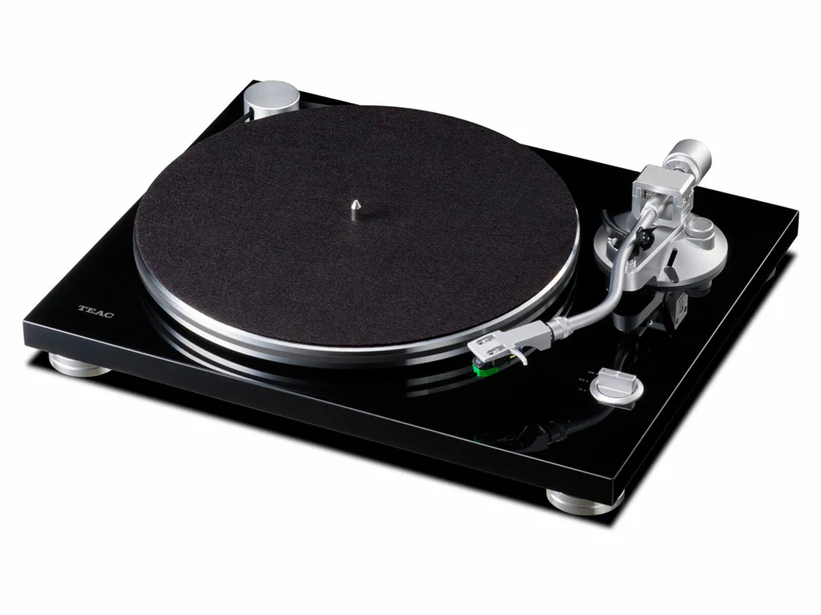

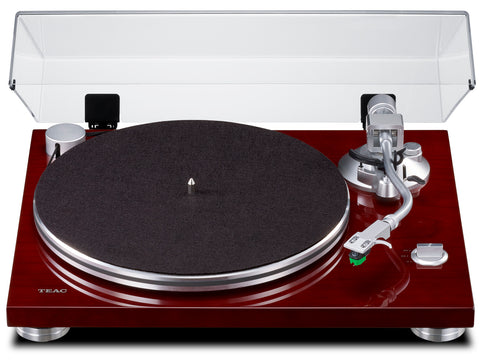

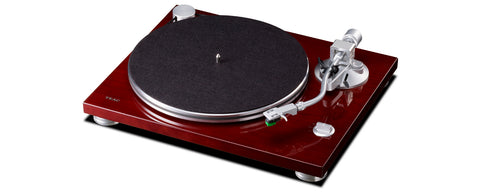

TEAC TN-3B-SE Manual Belt-Drive Turntable

  • Sale
  • $ 529.99
  • FREE SHIPPING

Free standard shipping on all orders within the continental US.


Dedicated Support from Start to Finish

  • Concierge-Level Experience tailored to your needs
  • Assistance with Troubleshooting and Product Insights
  • Expert help for Product Set-Up
  • Fast & Free Shipping on all orders
DESCRIPTION

The TN-3B-SE is a high-performance belt-drive turntable designed for audiophiles and vinyl enthusiasts. It features a knife-edge, pivot-point tonearm developed with SAEC for superior stability and resolution. The turntable utilizes a belt-drive mechanism to minimize motor cogging effects, ensuring smooth and precise platter rotation. A pre-installed Audio-Technica AT-VM95E cartridge with an elliptical stylus, along with a built-in MM-type Phono EQ amplifier, allows for high-quality sound with low distortion. The turntable supports 33-⅓ and 45 rpm speeds and includes features like precision anti-skating, adjustable stylus pressure, and excellent shock absorption via insulating feet. With a sleek MDF plinth, honeycomb-patterned bottom panel, and a luxurious multi-layer lacquer finish, the TN-3B-SE combines stylish design with exceptional sound quality.

FEATURES
  • External Belt-Drive Motor & Aluminum Die-Cast Platter
  • Authentic 2-Speed Turntable
  • Pre-Installed Audio-Technica AT-VM95E Cartridge
  • High Density MDF Cabinet Construction
  • Insulating Feet with Excellent Shock Absorption
  • Built-In Phono EQ Pre-Amplifier

Accessories

  • Felt Mat
  • EP Adapter
  • Counterweight
  • Head-shell (AT-VM95E installed)
  • Platter
  • Dust Cover Hinges × 2
  • RCA Audio Cable with Ground Terminal
  • AC Adapter (GPE053A-V120050)
  • Owner's Manual (including Warranty card)
TECHNICAL SPECS

Turntable Section

  • Type: Belt-drive (External drive)
  • Motor: DC Motor
  • Rotation Speeds: 33-⅓ rpm, 45 rpm
  • Wow-and-Flutters: 0.1% or less
  • S/N Ratio: 67dB (A-weighted, 20kHz LPF)

Turntable (Platter)

  • Material: Aluminum Diecast
  • Diameter: 30cm

Tone-Arm Section

  • Type: S-shape, Static-balanced
  • Effective Length: 223mm
  • Needle Pressure Range: 0g to 5.0g
  • Compatible Cartridge Weight: 3.0g to 12.0g
  • Compatible Cartridge Weight Including Head-Shell: 14g to 23g

Cartridge section

  • Type: MM-type
  • Output Voltage: 4.0mV (1kHz, 5cm/sec.)
  • Needle Pressure: 1.8 to 2.2g (2.0g recommended)
  • Weight: 6.1g
  • Head-shell weight: 11g (including screws, nuts, and wires)
  • Compatible Stylus: AT-VMN95E * Average stylus life: approx. 300 hours.

Analog Outputs

  • Connector: RCA Pin jack × 1 pair (Gold-plated)

Output Voltage

  • PHONO: 4.0mV (1kHz)
  • LINE: 224mV (–13dBV)

General

  • Operating Power: AC 100 to 240V, 50/60Hz
  • Power Consumption: 1.5W
  • Standby Power: 0.5W
  • Overall Dimensions (W×H×D): 420 × 117 × 356 mm / 16.5" × 4.6" × 14.0" (including protrusions)
  • Weight: approx. 5.0kg / 11.0 lbs.
