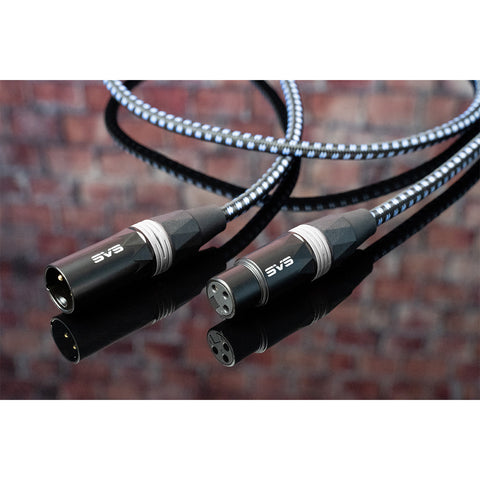

SVS SoundPath Balanced XLR Audio Cable - 49.21 ft. (15m)
$74.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
Cables should never be the weakest link in your system, nor should they cost more than your speakers and components. Through inspired engineering for world-class performance, SVS SoundPath Balanced XLR Audio Cables ensure signal purity, a secure connection, and rejection of interference from the innovative five-layer shielding system.
Available in lengths from 1 to 15 meters, SoundPath XLR cables are fit for the finest Class A amplifiers, preamps, subwoofers, pro audio gear, and other line-level components.
Features:
Available in 1, 2, 3, 5, 8 12, and 15 meter lengths
24K gold plated conductor pin for pure, stable connection
Five-layer isolation system rejects noise and electromagnetic interference (EMI)
Red and white marking for Left/Right channel designation
Protective cotton braided jacket for easy gripping and management
Work with preamps, power amplifiers, subwoofers, AV receivers, microphones, and other audio components with balanced XLR inputs and outputs
Inspired Engineering for World-Class Performance
Premium build materials and rigorous testing under extreme conditions ensure your system always sounds its best with SVS SoundPath Balanced XLR Audio Cables. Three-dimensional imaging, unveiled highs, neutral midrange, and tight, articulate bass.
Highly conductive cold-fused gold plating on all electrical contacts in both terminals
Three dedicated multi-strand high-purity conductors for superior connection integrity
Heavy-duty directionally connected 56-strand outer shield for resistance to RFI sources
Professional grade cast Zinc-Alloy terminals with black nickel-plating
Red and White marking bands for easy Left and Right designation
Densely braided easy-grip cotton jacket forms the fifth layer of RFI shield
Lockable, push-button release terminal clips ensure a secure connection
SPECIFICATIONS
Cable Construction Materials
Tri-balanced high gauge 99.99% oxygen-free-copper conductors individually isolated in independent HDPE dielectric jackets for consistent flow, high purity, and minimal signal loss
1.6mm HDPE inside core dielectric – the first of the five-layer insulation system shields twisted trio of dedicated conductors
Aluminum wrap shield – the second layer in the shielding and insulation system
56-strand spiral braid of 99.99% OFC tinned copper soldered to chassis ground terminal forms a critical third barrier in the five-layer insulation system to remove EMI and RF noise between electronics
High-density PVC jacket wrapped in densely braided cotton jacket provides flexibility, and easy gripping, and forms the final two layers in the five-layer insulation system
Five-layer isolation system rejects electromagnetic interference (EMI)
XLR Connector Construction Materials
Precision-soldered with high-grade lead-free solder to ensure durable and constant electrical contacts with consistent signal flow
24K gold-plated brass conductor pin for stable electrical contact and signal flow
Solid zinc-alloy terminal with black nickel plating provides stylish and durable body with comfortable handling
Red and white marking bands for easy left and right channel designation
Shield layer is hand-soldered to source terminal chassis connection for the best possible grounding and noise rejection
Electrical Properties
Conductor DCR = 77 mΩ/meter
Shield DCR: 40 mΩ/meter
Nominal Impedance: 110Ω. Cable and XLR connectors are impedance-matched to minimize Voltage Standing Wave Ratio (VSWR) and Return Loss
Nominal Capacitance: 39 pF/meter @ 1kHz
Rated Bandwidth: DC-5.0 MHz (3M cable) with ≤1.09 VSWR and ≥27dB Return Loss
