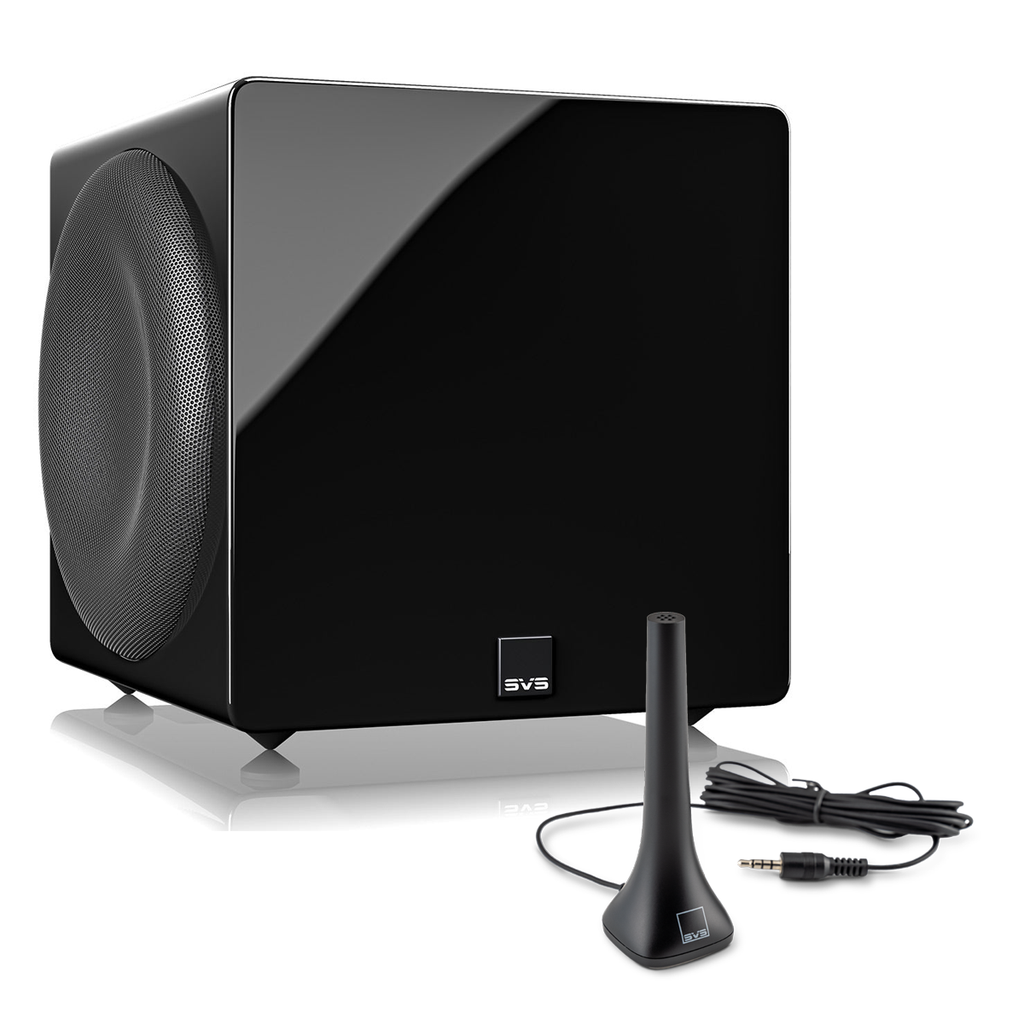

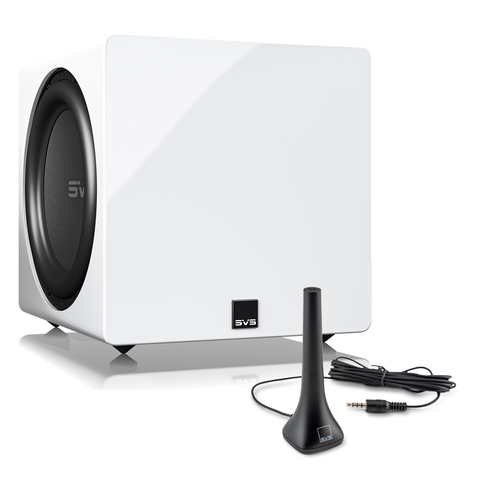

This bundle includes: (1) SVS 3000 Micro R|Evolution Dual Opposing 9” Active Subwoofer and (1) SVS Auto EQ Mic
The SVS 3000 Micro R|Evolution Subwoofer + Auto EQ Mic Bundle combines compact reference-grade bass performance with advanced room calibration for an optimized listening experience. At the heart of the bundle is the SVS 3000 Micro R|Evolution, featuring dual opposing 9-inch high-excursion drivers in a force-balanced sealed enclosure that minimizes cabinet vibration while delivering deep, powerful, and highly accurate bass. Powered by a 1,200-watt RMS (4,000+ watts peak) STA-1200D2 amplifier and advanced 56-bit DSP processing, it produces exceptional low-frequency extension, impact, and musical precision for both home theater and high-fidelity audio systems.
Included is the SVS Auto EQ Mic, a precision calibration microphone designed to work with the SVS Subwoofer Control App. It enables more accurate room measurements and automatic bass optimization, helping reduce room-induced peaks and nulls for smoother, tighter low-frequency performance. Together, this bundle delivers powerful, customizable bass with professional-grade room correction in a compact, space-friendly package.
SVS 3000 Micro R|Evolution Dual Opposing 9” Active Subwoofer Bundle with Auto EQ Mic
- $1,044.00
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
This bundle includes: (1) SVS 3000 Micro R|Evolution Dual Opposing 9” Active Subwoofer and (1) SVS Auto EQ Mic
The SVS 3000 Micro R|Evolution Subwoofer + Auto EQ Mic Bundle combines compact reference-grade bass performance with advanced room calibration for an optimized listening experience. At the heart of the bundle is the SVS 3000 Micro R|Evolution, featuring dual opposing 9-inch high-excursion drivers in a force-balanced sealed enclosure that minimizes cabinet vibration while delivering deep, powerful, and highly accurate bass. Powered by a 1,200-watt RMS (4,000+ watts peak) STA-1200D2 amplifier and advanced 56-bit DSP processing, it produces exceptional low-frequency extension, impact, and musical precision for both home theater and high-fidelity audio systems.
Included is the SVS Auto EQ Mic, a precision calibration microphone designed to work with the SVS Subwoofer Control App. It enables more accurate room measurements and automatic bass optimization, helping reduce room-induced peaks and nulls for smoother, tighter low-frequency performance. Together, this bundle delivers powerful, customizable bass with professional-grade room correction in a compact, space-friendly package.
SVS 3000 Micro R|Evolution Dual 9"
- Force-Balanced Dual Opposing Active 9-inch Drivers
- 1,200 Watts Power with 4,000+ Watts Peak
- STA-1200D2M MOSFET Amplifier
- Premium Grade 56bit Digital Audio Processing
- 295 MHz Analog Devices DSP
- Rigidly Braced Sealed Cabinet Design
- SVS Subwoofer Control Smartphone App
In The Box
- 3000 Micro R|Evolution Dual 9" Subwoofer
- (2) Protective Non-Resonant Steel Mesh Grilles
- Iso-Elastomer Feet
- Power Cord
- Manual
Auto EQ Mic
- External microphone for SVS Auto EQ room calibration
- Works with the SVS Subwoofer Control app
- Compatible with selected SVS R|Evolution subwoofers
- USB-C and MFi-certified Lightning adapter included
- Can be used with smartphones and tablets
In The Box: USB-C and MFi-certified Lightning Adapters.
SVS 3000 Micro R|Evolution Dual 9"
- Drivers: Dual opposing side-firing 9-inch high-excursion active drivers, acoustically and electrically in parallel
- Rear panel: OLED and control interface, includes Display Flip
- Grilles: Protective non-resonant steel metal mesh
- Cabinet: MDF with internal bracing
- Feet: Screw-in Iso-elastomer
- Dimensions (W x H x D) (with grille): 11.8" x 10.9" × 10.8"
- Weight, unboxed: 22.5 lbs.
- Acoustic Data
- Frequency response: 20 Hz to 230 Hz ±3 dB
- Room extension: 2–3 Hz deeper in small to mid-size rooms
- Roll-off slope: optimized for available room gain
- Measurement: 2-meter ground plane, away from reflective structures, quasi-anechoic
- Acoustic THD+N: 20% to 60% lower in critical low-frequency bandwidth vs. previous generation
- Driver configuration: Dual opposing 9-inch long-throw drivers, electrically and mechanically in parallel
- Excursion: 27.3 mm Xmax, 32.6 mm Xmech
- Baskets: Custom 9-inch, FEA-optimized, powder-coated steel
- Cone/coupler: 1100 aluminum, single piece
- Voice coil: High-current 4-layer copper winding
- Former/bobbin: High-temperature 3003-H18 aluminum
- Motor system: Oversized Y30 ferrite
- Motor/suspension parts: Precision-machined, narrow-tolerance
- T-yoke/top plate: Oversized low carbon 08AL steel
- Shorting ring: 6063 aluminum
- Surround: Proprietary injection-molded NBR
- Leads: Dual balanced 24-strand silver-plated Litz wire through 5-inch composite linear spider
- Amplifier: 1,200-watt continuous Class D, 4,000+ watts peak
- RMS power output: 50% higher than previous generation
- DSP: 295 MHz Analog Devices Audio DSP, double-precision 56-bit filtering, 5x+ processing power vs. previous generation
- DSP functions: Real-time power management, monitors power, driver excursion, and current thousands of times per second
- DAC/SNR: Premium DACs, 120+ dB signal-to-noise ratio
- Output stage: Four 60A 200V MOSFETs in full bridge, 100+ Vrms across both drivers
- Power supply: Digitally controlled SMPS, resonant LLC topology, regulated 160V rail voltage
- THD+N at rated power: < 0.05%
- EQ/limiter: custom EQ and DSP limiter settings for 3000 Micro R|Evolution
- RCA Input impedance: 10 kohm, up to 4 Vrms
- XLR Input impedance: 18 kohm, up to 4 Vrms / +14 dBu
- Interface: OLED and control interface
- USB: Powers SVS SoundPath Wireless Audio Adapter
- Power options: Auto/On and Trigger through app
- Trigger input: 3.5 mm, 3–12V AC/DC
- IR input: 3.5 mm
- Standby power: 0.5 watt
- Compliance: RoHS compliant, lead-free, worldwide safety certifications
- SVS App Features
- App platforms: Apple iOS, Google Android, Amazon Fire
- App controls: Volume, fully adjustable low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, more
- Presets: 3 Memory presets
- Auto Room EQ: Coming soon
- Finish options: Piano Gloss Black, Piano Gloss White
Auto EQ Mic
- Product type: External calibration microphone
- Function: SVS Auto EQ room calibration
- App: SVS Subwoofer Control app
- Compatible subwoofers: SVS 3000 R|Evolution, 5000 R|Evolution and 17-Ultra R|Evolution
- Device compatibility: iOS, Android and Amazon Fire
- Connection: USB-C and Lightning via included adapters
PRODUCT INFORMATION:
Model: SB3000MPB+EQMIC | Barcode: 632665612849
