The SVS 3000 Micro R|Evolution Dual 9" Subwoofer delivers reference-level bass performance from a remarkably compact enclosure. Featuring dual opposing 9-inch high-excursion drivers, this force-balanced design eliminates cabinet vibration while producing deep, powerful, and highly controlled low frequencies. Driven by a 1,200-watt RMS (4,000+ watts peak) STA-1200D2 MOSFET amplifier, it provides exceptional output, precision, and musical accuracy for both home theater and high-fidelity audio systems.
Advanced 56-bit DSP with a 295 MHz Analog Devices processor optimizes in-room performance, ensuring tight, distortion-free bass with impressive extension. The sealed cabinet is rigidly braced for acoustic integrity, delivering clean, accurate sound without resonance. The SVS subwoofer control app allows complete customization, including parametric EQ, phase, and room gain adjustments. Compact yet powerful, the 3000 Micro R|Evolution is engineered to deliver deep, impactful bass while maintaining clarity, speed, and tonal balance in any listening environment.

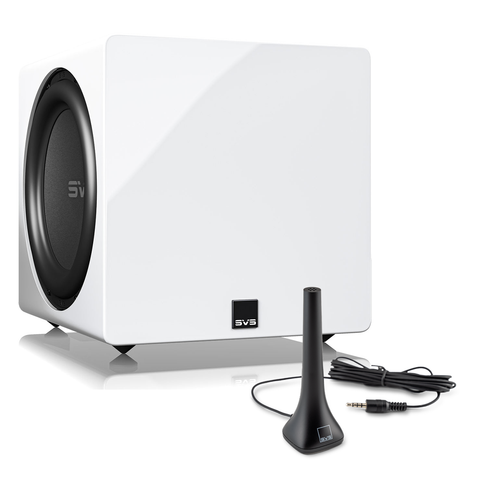

Optional SVS Auto EQ Mic Upgrade
For the most accurate bass performance, the SVS Auto EQ Mic is available as an optional accessory and can be added to your purchase. While the SVS Subwoofer Control App can perform Auto EQ calibration using your smartphone's built-in microphone, the dedicated SVS Auto EQ Mic provides more precise room measurements for improved results.
Using the SVS Subwoofer Control App, the microphone helps analyze your room and automatically optimize bass response, reducing boomy spots and uneven bass while improving clarity, balance, and impact. It's an easy way to get the best possible performance from your SVS subwoofer and achieve tighter, more balanced bass tailored to your listening space.
SVS 3000 Micro R|Evolution Dual Opposing 9” Active Subwoofer
mon0000025831
B0GX7FPZS5
- $999.00
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The SVS 3000 Micro R|Evolution Dual 9" Subwoofer delivers reference-level bass performance from a remarkably compact enclosure. Featuring dual opposing 9-inch high-excursion drivers, this force-balanced design eliminates cabinet vibration while producing deep, powerful, and highly controlled low frequencies. Driven by a 1,200-watt RMS (4,000+ watts peak) STA-1200D2 MOSFET amplifier, it provides exceptional output, precision, and musical accuracy for both home theater and high-fidelity audio systems.
Advanced 56-bit DSP with a 295 MHz Analog Devices processor optimizes in-room performance, ensuring tight, distortion-free bass with impressive extension. The sealed cabinet is rigidly braced for acoustic integrity, delivering clean, accurate sound without resonance. The SVS subwoofer control app allows complete customization, including parametric EQ, phase, and room gain adjustments. Compact yet powerful, the 3000 Micro R|Evolution is engineered to deliver deep, impactful bass while maintaining clarity, speed, and tonal balance in any listening environment.

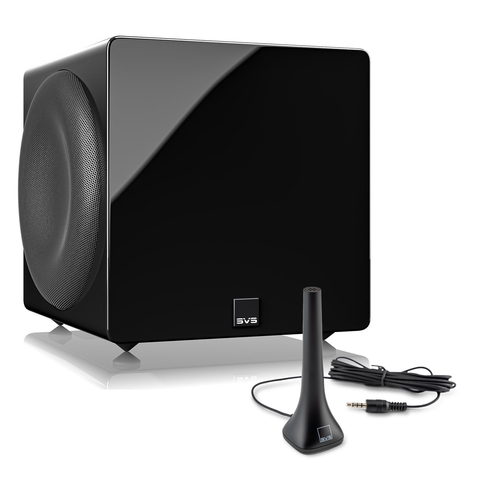

Optional SVS Auto EQ Mic Upgrade
For the most accurate bass performance, the SVS Auto EQ Mic is available as an optional accessory and can be added to your purchase. While the SVS Subwoofer Control App can perform Auto EQ calibration using your smartphone's built-in microphone, the dedicated SVS Auto EQ Mic provides more precise room measurements for improved results.
Using the SVS Subwoofer Control App, the microphone helps analyze your room and automatically optimize bass response, reducing boomy spots and uneven bass while improving clarity, balance, and impact. It's an easy way to get the best possible performance from your SVS subwoofer and achieve tighter, more balanced bass tailored to your listening space.
- Force-Balanced Dual Opposing Active 9-inch Drivers
- 1,200 Watts Power with 4,000+ Watts Peak
- STA-1200D2M MOSFET Amplifier
- Premium Grade 56bit Digital Audio Processing
- 295 MHz Analog Devices DSP
- Rigidly Braced Sealed Cabinet Design
- SVS Subwoofer Control Smartphone App
In The Box
- 3000 Micro R|Evolution Dual 9" Subwoofer
- (2) Protective Non-Resonant Steel Mesh Grilles
- Iso-Elastomer Feet
- Power Cord
- Manual
- Drivers: Dual opposing side-firing 9-inch high-excursion active drivers, acoustically and electrically in parallel

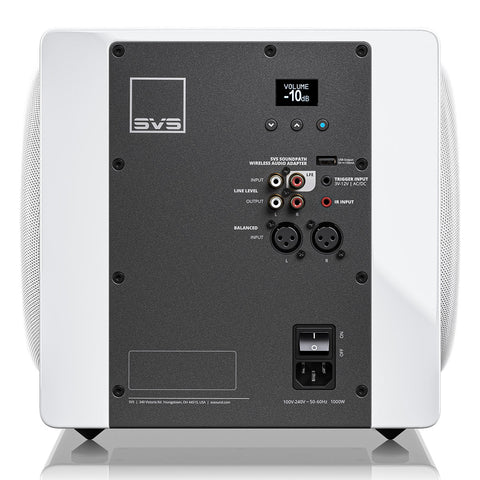

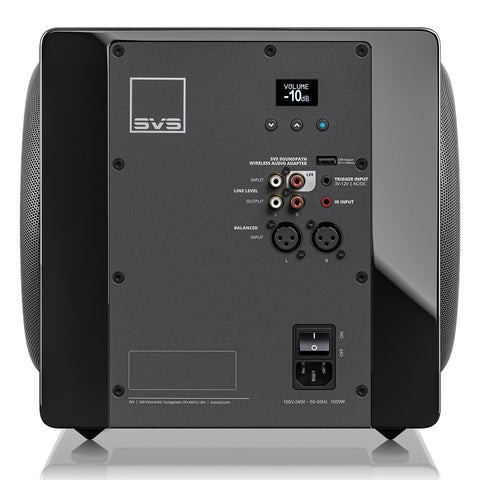

- Rear panel: OLED and control interface, includes Display Flip
- Grilles: Protective non-resonant steel metal mesh
- Cabinet: MDF with internal bracing
- Feet: Screw-in Iso-elastomer
- Dimensions (W x H x D) (with grille): 11.8" x 10.9" × 10.8"
- Weight, unboxed: 22.5 lbs.
- Acoustic Data
- Frequency response: 20 Hz to 230 Hz ±3 dB
- Room extension: 2–3 Hz deeper in small to mid-size rooms
- Roll-off slope: optimized for available room gain
- Measurement: 2-meter ground plane, away from reflective structures, quasi-anechoic
- Acoustic THD+N: 20% to 60% lower in critical low-frequency bandwidth vs. previous generation

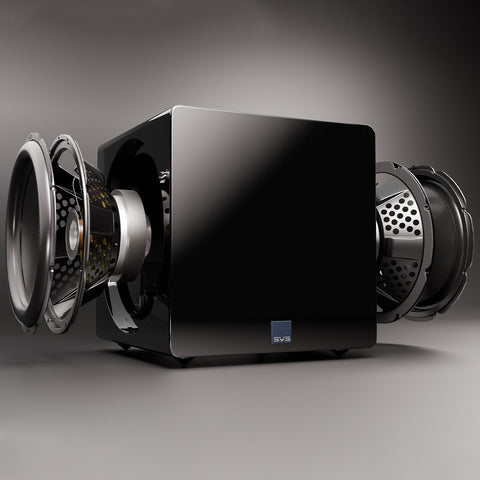

- Driver configuration: Dual opposing 9-inch long-throw drivers, electrically and mechanically in parallel
- Excursion: 27.3 mm Xmax, 32.6 mm Xmech
- Baskets: Custom 9-inch, FEA-optimized, powder-coated steel
- Cone/coupler: 1100 aluminum, single piece
- Voice coil: High-current 4-layer copper winding
- Former/bobbin: High-temperature 3003-H18 aluminum
- Motor system: Oversized Y30 ferrite
- Motor/suspension parts: Precision-machined, narrow-tolerance
- T-yoke/top plate: Oversized low carbon 08AL steel
- Shorting ring: 6063 aluminum
- Surround: Proprietary injection-molded NBR
- Leads: Dual balanced 24-strand silver-plated Litz wire through 5-inch composite linear spider
- Amplifier: 1,200-watt continuous Class D, 4,000+ watts peak
- RMS power output: 50% higher than previous generation
- DSP: 295 MHz Analog Devices Audio DSP, double-precision 56-bit filtering, 5x+ processing power vs. previous generation
- DSP functions: Real-time power management, monitors power, driver excursion, and current thousands of times per second
- DAC/SNR: Premium DACs, 120+ dB signal-to-noise ratio
- Output stage: Four 60A 200V MOSFETs in full bridge, 100+ Vrms across both drivers
- Power supply: Digitally controlled SMPS, resonant LLC topology, regulated 160V rail voltage
- THD+N at rated power: < 0.05%
- EQ/limiter: custom EQ and DSP limiter settings for 3000 Micro R|Evolution
- RCA Input impedance: 10 kohm, up to 4 Vrms
- XLR Input impedance: 18 kohm, up to 4 Vrms / +14 dBu
- Interface: OLED and control interface
- USB: Powers SVS SoundPath Wireless Audio Adapter
- Power options: Auto/On and Trigger through app
- Trigger input: 3.5 mm, 3–12V AC/DC
- IR input: 3.5 mm
- Standby power: 0.5 watt
- Compliance: RoHS compliant, lead-free, worldwide safety certifications
- SVS App Features
- App platforms: Apple iOS, Google Android, Amazon Fire
- App controls: Volume, fully adjustable low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, more
- Presets: 3 Memory presets
- Auto Room EQ: Coming soon

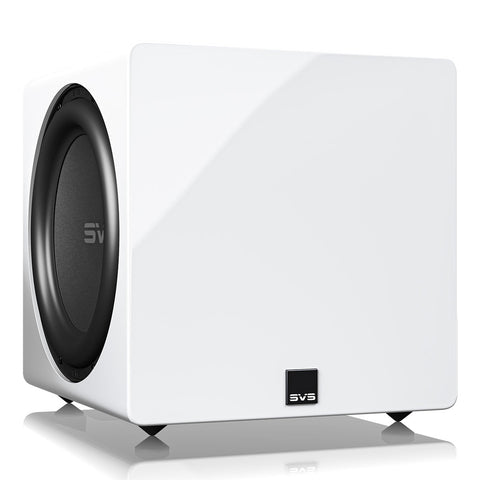

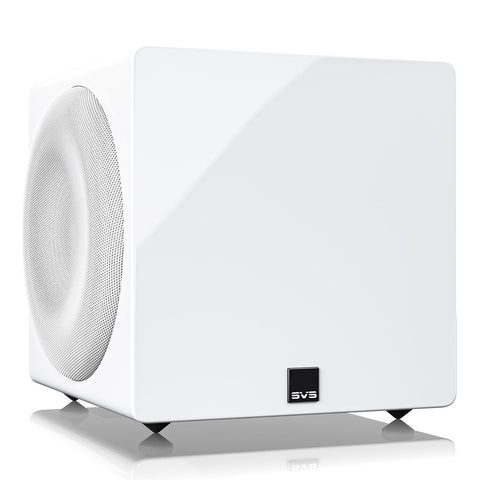

- Finish options: Piano Gloss Black, Piano Gloss White
PRODUCT INFORMATION:
Model: SB3000MPB | Barcode: 850062185630
