Contemporary look for custom installation speakers
A full line of Custom installation speakers in-wall and in-ceiling that inherits design and technical solutions from the entry level collection of Sonus faber, the Sonetto collection. Discreet and effective solution for any listening environment.
PALLADIO: THE NEW CUSTOM INSTALLATION
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.
THE VOICE OF SONUS FABER
It's timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
LEVEL 5 AND SONETTO: HARMONIC INTEGRATION
The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).
EASY TO INSTALL AND CUSTOMIZE
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
MAIN FEATURES
• FAMILY FEELING :

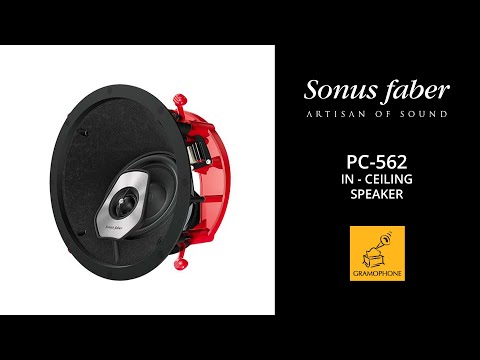

The PC-562 directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project and design.
The satin aluminum trim that frame the tweeter recalls the aesthetic of the “Voice of Sonus faber”.
• MAGNETIC GRILLES :
The PC-562 is equipped with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available.
• QUICK INSTALLATION :
Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.
Specifications:
SYSTEM
2 way in-ceiling loudspeaker system.
Infinite baffle.
LOUDSPEAKERS
Tweeter DAD™ driver: 29 mm / 1,1’’
Midwoofer: 165 mm / 6,5’’
POWER OUTPUT
40 – 200W
Undistorted signal.
DIMENSIONS
Frame outer: 234 mm / 9.2’’
Cut out: 208 mm / 8.19’’
Depth behind surface: 115 mm / 4.52’’
Protrusion: 10 mm / 0.40’
