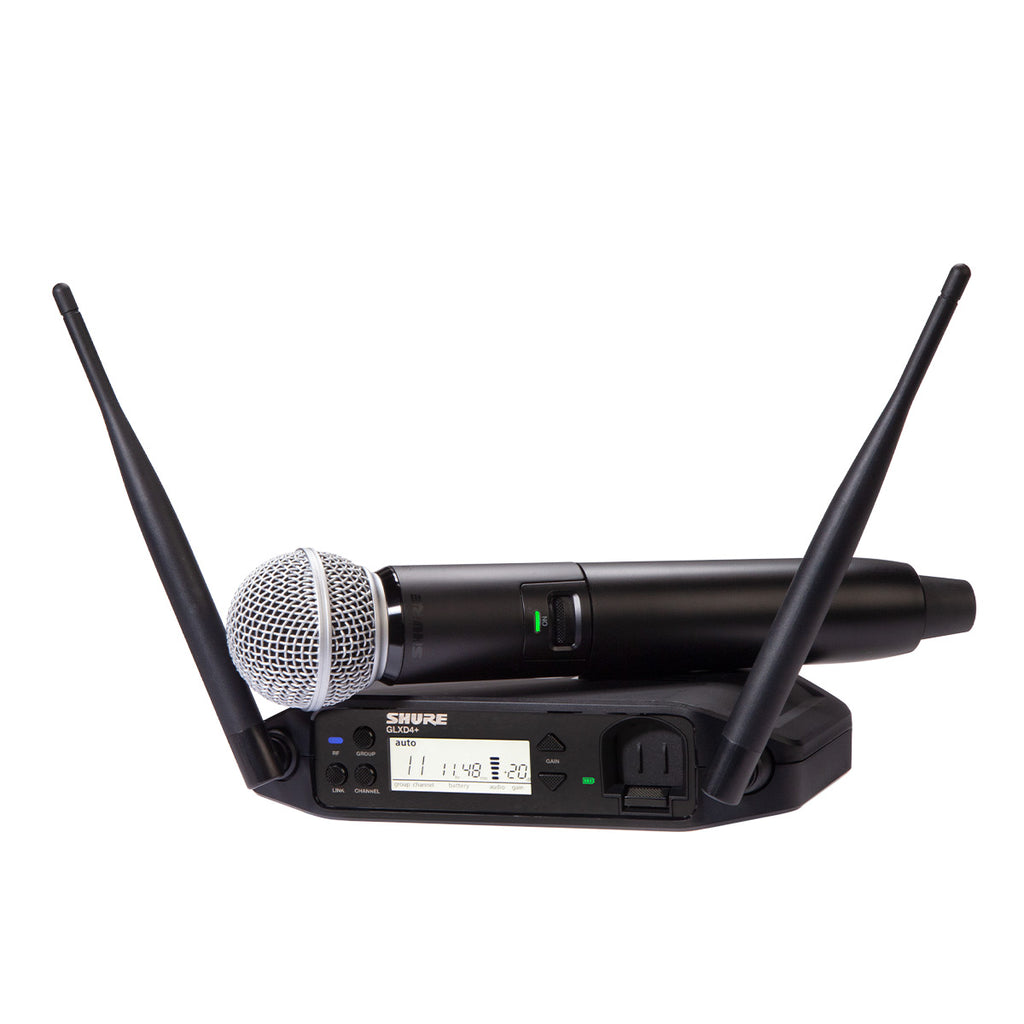

Featuring the industry standard SM58® vocal microphone, the new GLXD24+/SM58 Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

SPECS:

• System
  • Compatibility
    • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
    • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
  • System Operating Range
    • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
    • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
  • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
  • Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
  • Dynamic Range: 120 dB, A-weighted
  • RF Sensitivity: -88 dBm, typical
  • Total Harmonic Distortion: 0.07%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
  • Battery Life: Up to 12 hours

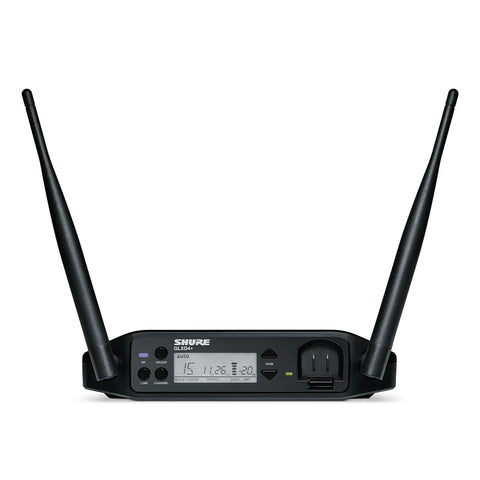

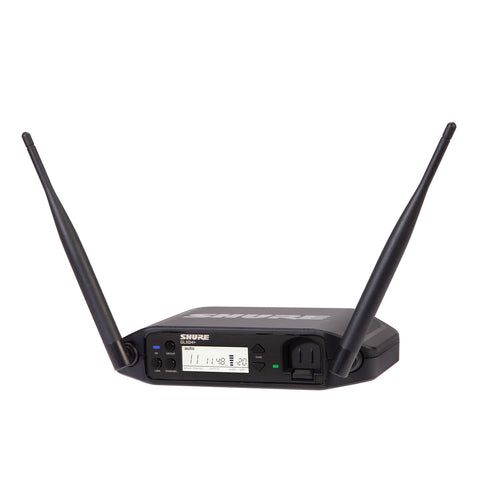

• GLXD4+ Dual Band Wireless Receiver

  • Dimensions (antenna folded) (W x H x D): 7.2” x 4.8” x 1.6”
  • Weight: 10.9 oz (310 g)
  • Housing: Molded Plastic
  • Power Requirements: 14.5 V - 17 V, 600mA
  • Spurious Rejection: >35 dB, typical
  • Gain Adjustment Range: −20 to 40 dB in 1 dB steps
  • Phantom Power Protection: Yes
  • Audio Output
    • Configuration
      • XLR Output: Impedance Balanced
      • 6.35 mm (1/4") output: Impedance balanced
    • Impedance
      • XLR Output: 100 Ω
      • 6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
    • Maximum Audio Output Level
      • XLR connector (into 600 Ω load) 1 dBV
      • 6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
    • Pin Assignments
      • XLR Output: 1=ground, 2=hot, 3=cold
      • 6.35 mm (1/4") connector: Tip=audio, Ring/ Sleeve=ground
  • Receiver Antenna Input
    • Impedance: 50 Ω
    • Antenna Type: Dual Band 1/2 WaveSleeve Dipole, non-removable
    • Maximum Input Level: −20 dBm

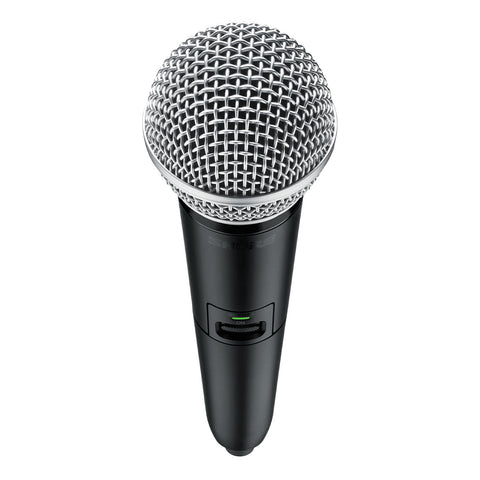

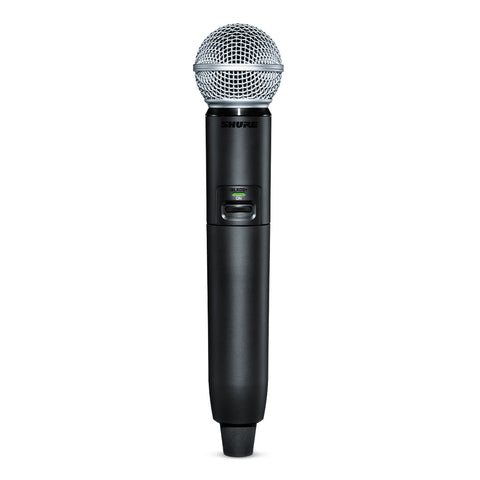

• GLXD2+ Dual Band Handheld Transmitter (SM58)
  • Dimensions (W x H x D): 2” x 9.9” x 1.5”
  • Weight (without battery): 275 g (9.70 oz)
  • Housing: Aluminum alloy, ABS plastic
  • Power Requirements: 3.6 V Rechargeable Li-Ion
  • RF Output Power: 10 mW E.I.R.P. max
  • Maximum Input Level: 146 dB SPL

IN THE BOX:

• GLXD24+/SM58-Z3 Dual Band Wireless System
  • GLXD4+ Tabletop Receiver
  • GLXD2+/SM58 Handheld Microphone
• SB904 Battery
• Swivel Adapter
• Carrying Case
• Power Supply
• Manual
