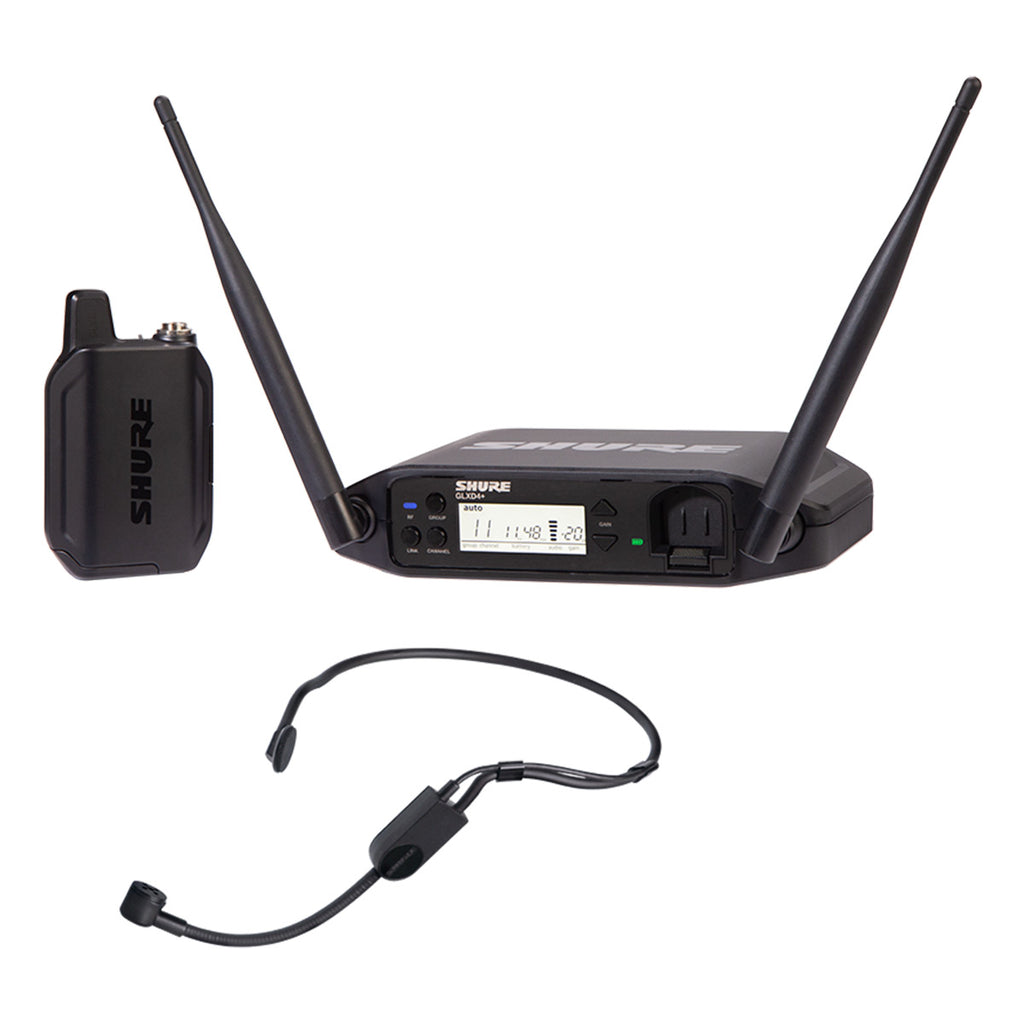

Shure GLXD14+/PGA31-Z3 Dual Band Wireless System with GLXD4+ Tabletop Receiver, GLXD1+ Bodypack Transmitter, & PGA31 Headset Condenser Microphone
$669.00
Regular price
$837.00
Save
$168.00
(20%)
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
Ready-to-go. Every time. Automatically.
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.
Features
Includes PGA31 Headset Microphone
Dual Band Wireless Technology
Automatic Frequency Management
Smart Rechargeability
Up to 16 Compatible Systems
Dropouts Won’t Steal the Show
With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.
Wireless Without Complication
GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.
Smart Rechargeability
End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15-minute charge.

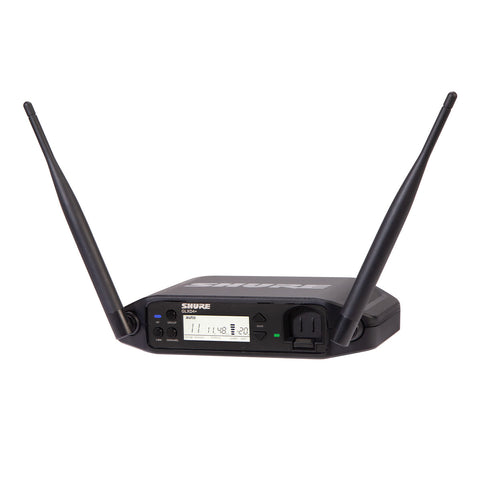

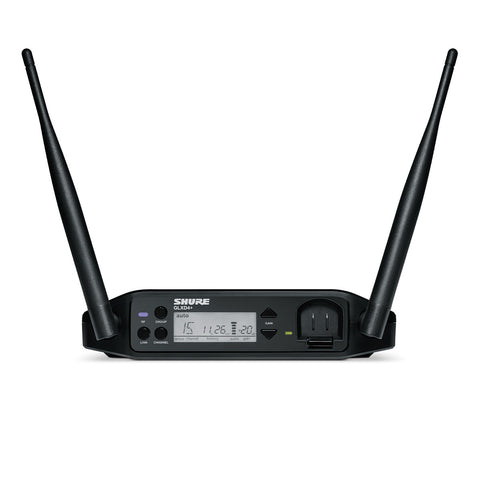

GLXD4+ Wireless Receiver
Exceptional digital audio clarity
Compatible with multiple legendary microphone options
Automatically moves away from interference without audio interruption
Rock-solid RF performance for multiple system installations
License-free frequency range
PGA31 Headset Condenser Microphone
Wearable wireframe headset fits securely for multi-instrumentalists and active performers
Permanently-charged electret condenser element for detailed, crisp vocals
Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
Included windscreen tames plosives for clean and intelligible sound reproduction
Available with a wide variety of Shure wireless systems, renowned for ease-of-use and reliable performance
Tailored frequency response primed for great sound on vocals
Legendary Shure precision engineering for durability and performance
SPECIFICATIONS
System
Compatibility
With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
System Operating Range
Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
Dynamic Range: 120 dB, A-weighted
RF Sensitivity: -88 dBm, typical
Total Harmonic Distortion: 0.07%, typical
RF Output Power: 10 mW E.I.R.P. max
Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
Battery Life: Up to 12 hours
GLXD4+ Dual Band Wireless Receiver
Dimensions (antenna folded) (W x H x D): 7.2” x 4.8” x 1.6”
Weight: 10.9 oz (310 g)
Housing: Molded Plastic
Power Requirements: 14.5 V - 17 V, 600mA
Spurious Rejection: >35 dB, typical
Gain Adjustment Range: −20 to 40 dB in 1 dB steps
Phantom Power Protection: Yes
Audio Output
Configuration
XLR Output: Impedance Balanced
6.35 mm (1/4") output: Impedance balanced
Impedance
XLR Output: 100 Ω
6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
Maximum Audio Output Level
XLR connector (into 600 Ω load) 1 dBV
6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
Pin Assignments
XLR Output: 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector: Tip=audio, Ring/ Sleeve=ground
Receiver Antenna Input
Impedance: 50 Ω
Antenna Type: Dual Band 1/2 WaveSleeve Dipole, non-removable
Maximum Input Level: −20 dBm
PGA31 Headset Condenser Microphone
Weight (g) / (lbs): 45 g / 0.099 lbs
Transducer Type: Condenser
Polar Pattern: Cardioid
Frequency Range From (Hz): 60
Frequency Range To (kHz): 20
Sensitivity dBV/Pa: -50.00
Sensitivity mvpa: 3.16
Equivalent Selfnoise: 28 dB(A)
Maximum Sound Pressure: 145 dB
Impedance (Ω): 600
Switchable Low Cut: No
Output Connectors: TQG (TA4F, 4-Pin Mini)
Attenuation PAD: No
Interchangeable Capsule: No
Requires Phantom Power (VDC): 5v DC (bias)
Cable: 1.3m / 50 in
DESCRIPTION
Ready-to-go. Every time. Automatically.
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio. Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities.
Features
Includes PGA31 Headset Microphone
Dual Band Wireless Technology
Automatic Frequency Management
Smart Rechargeability
Up to 16 Compatible Systems
Dropouts Won’t Steal the Show
With the new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling your available bandwidth for reliable dropout-free audio.
Wireless Without Complication
GLX-D+ Dual Band Digital Wireless System is the ideal solution to go wireless without complication. Every aspect of its operation is managed automatically, allowing you to focus on your performance.
Smart Rechargeability
End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 batteries can be charged directly in the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15-minute charge.
GLXD4+ Wireless Receiver
Exceptional digital audio clarity
Compatible with multiple legendary microphone options
Automatically moves away from interference without audio interruption
Rock-solid RF performance for multiple system installations
License-free frequency range
PGA31 Headset Condenser Microphone
Wearable wireframe headset fits securely for multi-instrumentalists and active performers
Permanently-charged electret condenser element for detailed, crisp vocals
Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
Included windscreen tames plosives for clean and intelligible sound reproduction
Available with a wide variety of Shure wireless systems, renowned for ease-of-use and reliable performance
Tailored frequency response primed for great sound on vocals
Legendary Shure precision engineering for durability and performance
SPECIFICATIONS
System
Compatibility
With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
System Operating Range
Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
Dynamic Range: 120 dB, A-weighted
RF Sensitivity: -88 dBm, typical
Total Harmonic Distortion: 0.07%, typical
RF Output Power: 10 mW E.I.R.P. max
Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
Battery Life: Up to 12 hours
GLXD4+ Dual Band Wireless Receiver
Dimensions (antenna folded) (W x H x D): 7.2” x 4.8” x 1.6”
Weight: 10.9 oz (310 g)
Housing: Molded Plastic
Power Requirements: 14.5 V - 17 V, 600mA
Spurious Rejection: >35 dB, typical
Gain Adjustment Range: −20 to 40 dB in 1 dB steps
Phantom Power Protection: Yes
Audio Output
Configuration
XLR Output: Impedance Balanced
6.35 mm (1/4") output: Impedance balanced
Impedance
XLR Output: 100 Ω
6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
Maximum Audio Output Level
XLR connector (into 600 Ω load) 1 dBV
6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV
Pin Assignments
XLR Output: 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector: Tip=audio, Ring/ Sleeve=ground
Receiver Antenna Input
Impedance: 50 Ω
Antenna Type: Dual Band 1/2 WaveSleeve Dipole, non-removable
