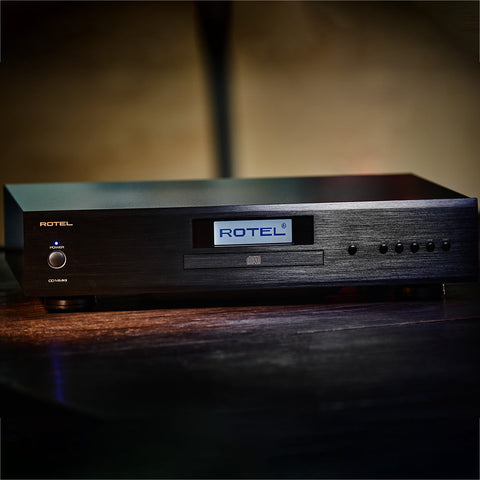

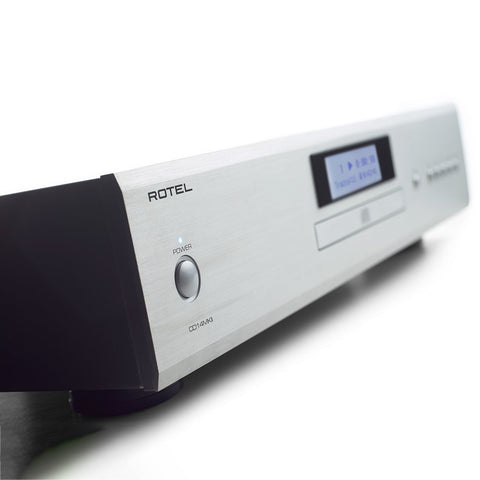

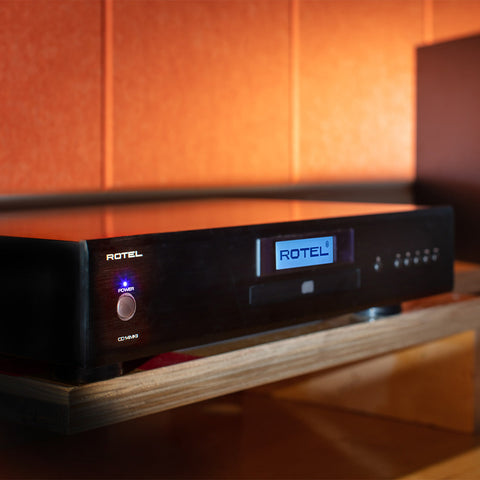

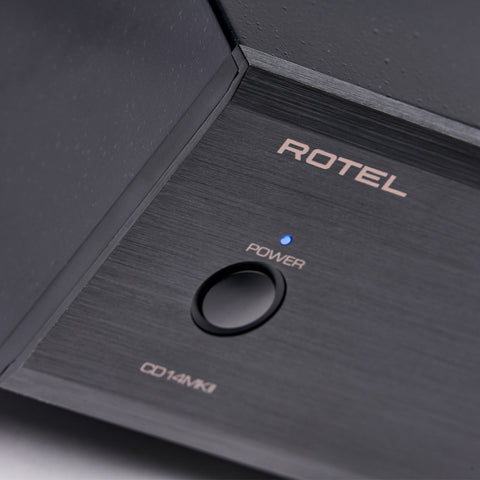

The CD14MKII follows Rotel’s tradition of award-winning CD players with innovations to the power supply, and newly tuned acoustic component resulting in a more accurate reproduction of the audio with rich, genuine detail. Critical Digital to Analog conversion is managed by a premium Texas Instruments 32-bit DAC with independent power supplies eliminating unwanted distortion and isolating motor controls from sensitive audio circuits reducing noise and distortion.
FEATURES
- Texas Instruments premium 32-bit/384kHz Digital to Analogue Converter

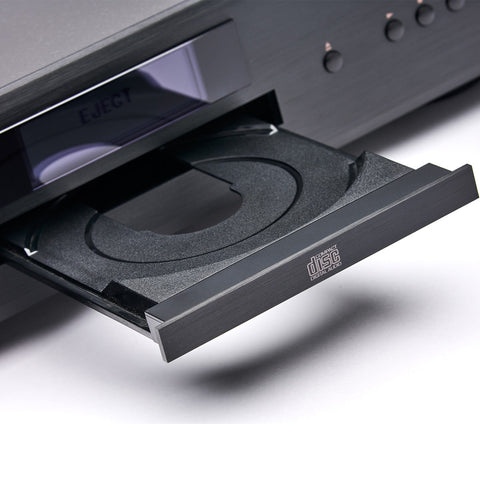

- Smooth tray loading CD mechanism
- 12 volt trigger input
- Coax output for use as a transport
- Includes remote control
TECHNICAL SPECS
- POWER REQUIREMENTS: 120V, 60Hz
- POWER CONSUMPTION: 15W
- STANDBY POWER CONSUMPTION: <0.5W
- DIMENSIONS (W × H × D): 430 × 98 × 314mm(17" × 3.8" × 12.3")
- NET WEIGHT: 6.51kg (14.35lbs.)
- TOTAL HARMONIC DISTORTION (THD): 0.0035% @ 1kHz
- FREQUENCY RESPONSE: 20Hz - 20kHz ±0.5dB
- PHASE LINEARITY: ±0.5 degree
- DIGITAL OUTPUT: 0.5V, Peak to Peak
- ANALOG OUTPUT IMPEDANCE: 100Ω
- LOAD IMPEDANCE: 75Ω
