DESCRIPTION
Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier delivering on Rotel’s 60 Year heritage of Performance, Quality, and Value.
Features
Robust Class AB Power
Optical & Digital Inputs
Custom Engineered Toroidal Transformer
12 Volt Trigger
Rack Ears Included
Four 24-bit/192kHz Digital to Analog Converters
Oversized Toroidal Transformer

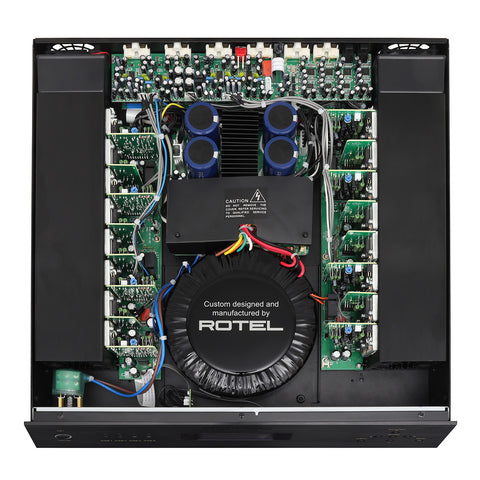

The oversized in-house manufactured toroidal transformer drives thirty-two high current output transistor devices for effortless, deep, controlled bass energy. Outputs can be bridged providing 4 channels of 300 Watts per channel, capable of driving even the most demanding loudspeakers and exceptional audio clarity in critical listening zones.
Connection

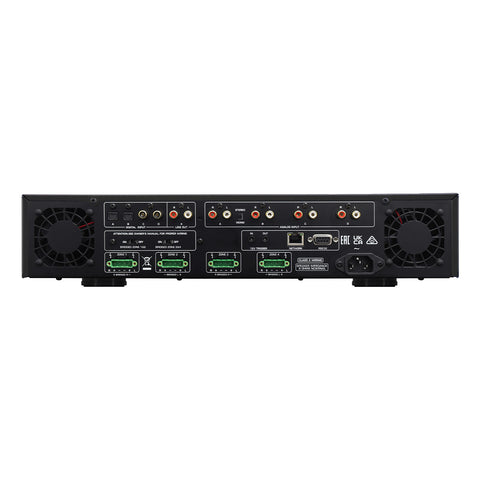

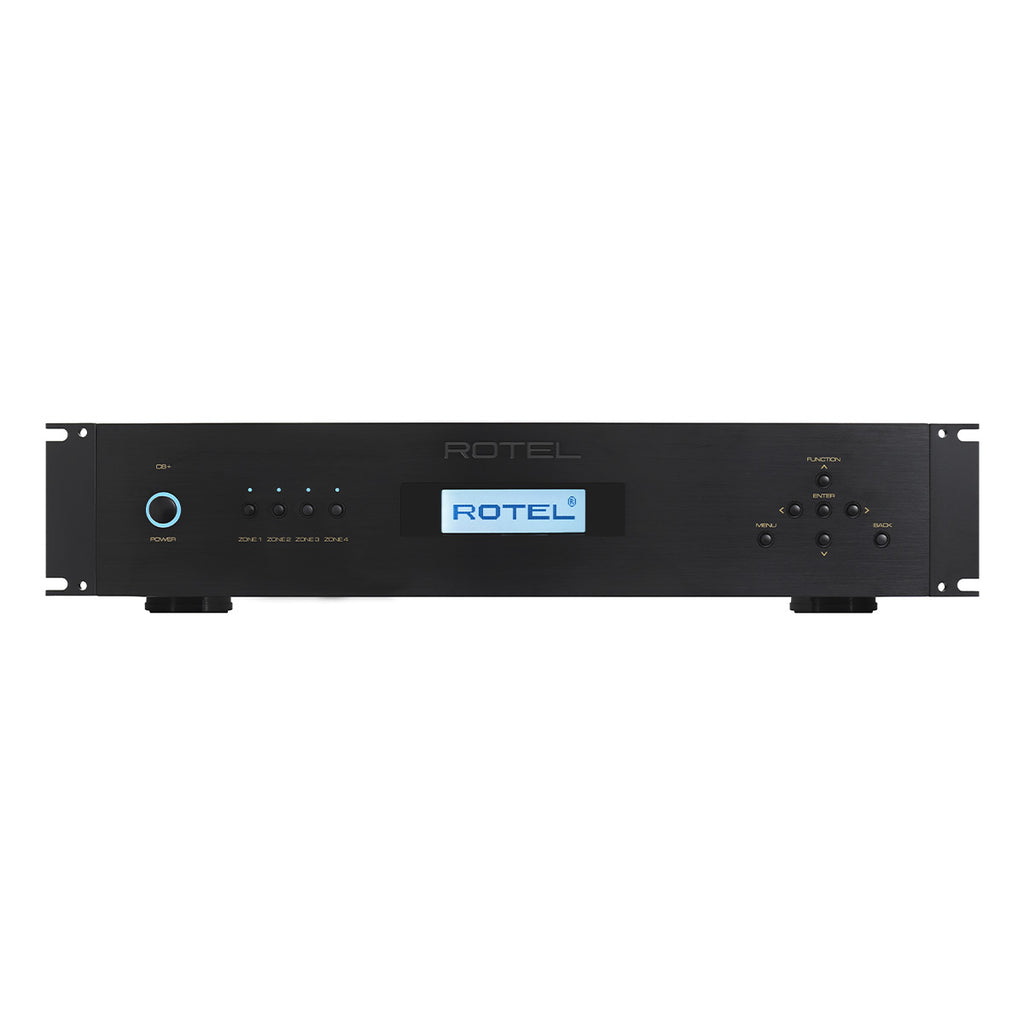

For ultimate installation flexibility the C8+ includes 4 Analog, 2 Coaxial and 2 Optical (24-bit/192kHz) inputs available to all Zones through internal matrix-switching with a Priority Zone PA Override feature allowing critical announcements to be broadcasts to all Zones. The front panel display and user controls provide selection of the matrixed source input and independent volume, bass and treble settings for each zone ensuring the C8+ can be tuned to the speaker and room characteristics. Device setup is also available via the front panel for easy system configuration when mounted in remote locations.
Phoenix Connectors
Speaker outputs utilize detachable Phoenix connectors for prewire installations with secure-locking screw terminals reducing service calls.
Control System Integration
Control system integration is available via IP and RS232 interfaces and the 12-Volt trigger input offers simplified power control.
SPECIFICATIONS
Maximum Power Output: 150W/Ch (8 channels driven, 4Ω)
Continuous Power Output: 100W/Ch (8 channels driven, 8Ω)
Front Panel Height: 2U / 3.5"
Power Requirements: 120V, 60Hz
Power Consumption: 980W
Standby Power Consumption
Normal: <0.5W
Network Standby: <2W
BTU Rating (4Ω, 1/8th power): 1537 BTU/h
Total Harmonic Distortion (THD)<0.1%
Frequency Response
Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 100dB
Dimensions (W × H × D): 17" × 3.9" × 16.3"
Net Weight: 40.79 lbs.
