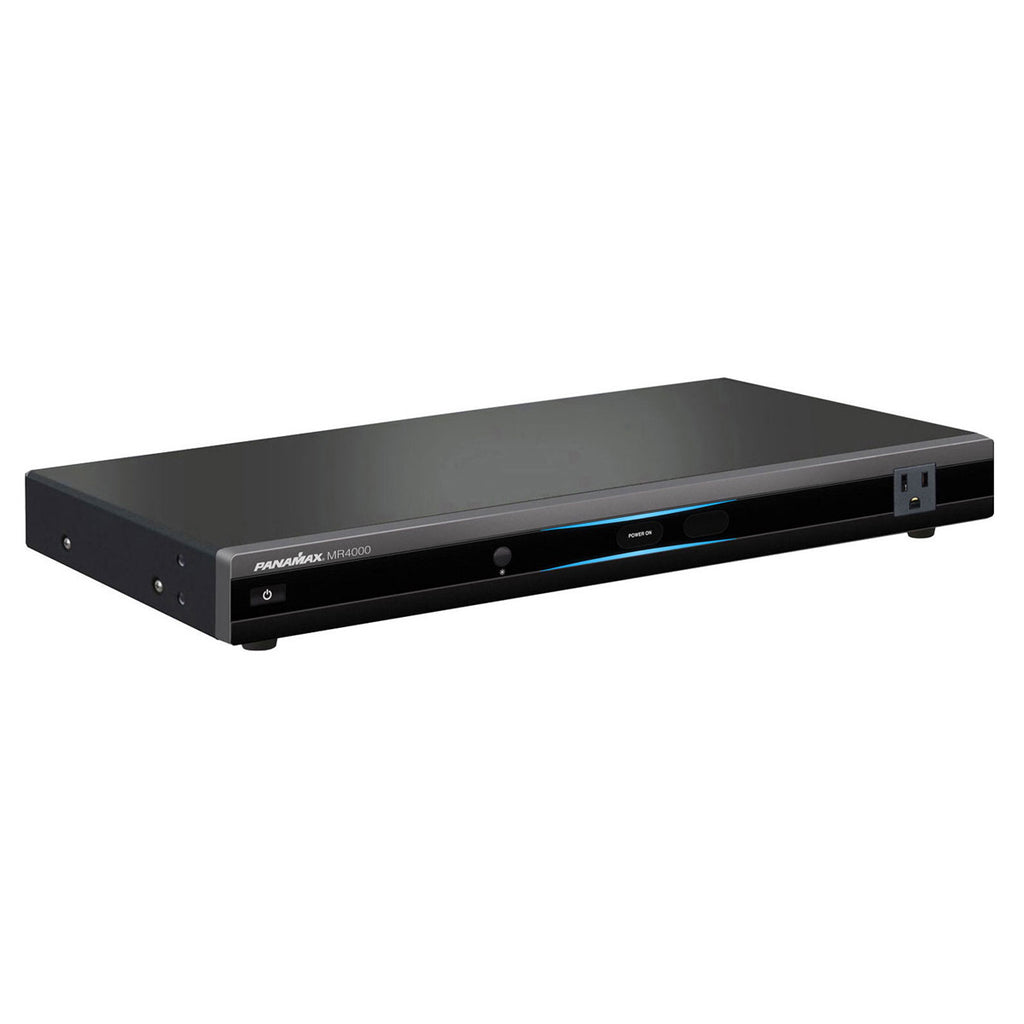

Panamax MR4000 8-Outlet Home Theater Power Management
$259.00
Regular price
$343.74
Save
$84.74
(24%)
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
Power Management for Your Home Theater System
The MR4000 8-Outlet Home Theater Power Management is specifically designed and engineered to provide protected and filtered power to your home theater system.
Panamax’s MR family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity), a flashing red lightning bolt will be displayed, and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.
The other layer of surge protection Panamax offers is their exclusive Protect or Disconnect technology, which completely protects your equipment from strong powers surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment.
Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.
Features
Eight protected and filtered power outlets
Exclusive Automatic Voltage Monitoring (AVM)
Protect or Disconnect technology
Panamax level 2 noise filtration
Antenna, cable, or satellite and LAN signal protection
8-foot power cable with low profile plug
SPECIFICATIONS
General
Line voltage: 120V
Number of outlets: 8
Outlet descriptions:
1 (filtered outlet, front panel)
7 (filtered outlets, rear panel)
Rack mountable: Yes
Rack ears included: Yes
Front panel meter(s): No
Front media light(s): No
Control: On/off control to all outlets through front panel power button
Voltage regulation: No
Compliance: cCSAus
USB charging: N/A
Low voltage trigger: N/A
AC power cord: 8 ft. captive, with low profile plug
Dimensions (W x D x H): 17" x 6" x 1.75"
Weight: 6.5 lbs.
AC Protection
AC protection technology:
Protect or disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G protection modes
Thermal fusing
Automatic Voltage Shutoff: Yes
Undervoltage shutoff: 95V ± 2V
Overvoltage shutoff: 140V ± 4V
Maximum current rating: 15 (Amps)
Initial clamping level: 200V peak
Filtration
Filtration technology: RFI/EMI filtration
Filtration rating
All outlets
-30dB min. @ 100kHz
-55dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -60dB @ 300kHz
Signal Line Protection
Signal line protection: 1 LAN, 1 cable/satellite
Other Specifications
Voltage protection rating (UL 1449 3rd Edition, 3,000A): 400V
Single pulse energy dissipation: 1350 Joules
Response time: < 1ns
Peak impulse current: 52,000 Amps
LAN - wires protected: 8 wires
LAN - compatibility: 10/100bT
LAN - clamping level: 50V
Coax - shielded: Yes
Coax - insertion loss: < 0.5dB
Coax - HD 1080 i/p ready: Yes
Coax - frequency range: 0MHz - 2.2GHz
Coax - connections: Female "F", gold-plated
Coax - clamping level: 75V
Coax - bidirectional: Yes
DESCRIPTION
Power Management for Your Home Theater System
The MR4000 8-Outlet Home Theater Power Management is specifically designed and engineered to provide protected and filtered power to your home theater system.
Panamax’s MR family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity), a flashing red lightning bolt will be displayed, and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.
The other layer of surge protection Panamax offers is their exclusive Protect or Disconnect technology, which completely protects your equipment from strong powers surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment.
Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.
Features
Eight protected and filtered power outlets
Exclusive Automatic Voltage Monitoring (AVM)
Protect or Disconnect technology
Panamax level 2 noise filtration
Antenna, cable, or satellite and LAN signal protection
8-foot power cable with low profile plug
SPECIFICATIONS
General
Line voltage: 120V
Number of outlets: 8
Outlet descriptions:
1 (filtered outlet, front panel)
7 (filtered outlets, rear panel)
Rack mountable: Yes
Rack ears included: Yes
Front panel meter(s): No
Front media light(s): No
Control: On/off control to all outlets through front panel power button
Voltage regulation: No
Compliance: cCSAus
USB charging: N/A
Low voltage trigger: N/A
AC power cord: 8 ft. captive, with low profile plug
Dimensions (W x D x H): 17" x 6" x 1.75"
Weight: 6.5 lbs.
AC Protection
AC protection technology:
Protect or disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G protection modes
Thermal fusing
Automatic Voltage Shutoff: Yes
Undervoltage shutoff: 95V ± 2V
Overvoltage shutoff: 140V ± 4V
Maximum current rating: 15 (Amps)
Initial clamping level: 200V peak
Filtration
Filtration technology: RFI/EMI filtration
Filtration rating
All outlets
-30dB min. @ 100kHz
-55dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -60dB @ 300kHz
Signal Line Protection
Signal line protection: 1 LAN, 1 cable/satellite
Other Specifications
Voltage protection rating (UL 1449 3rd Edition, 3,000A): 400V
