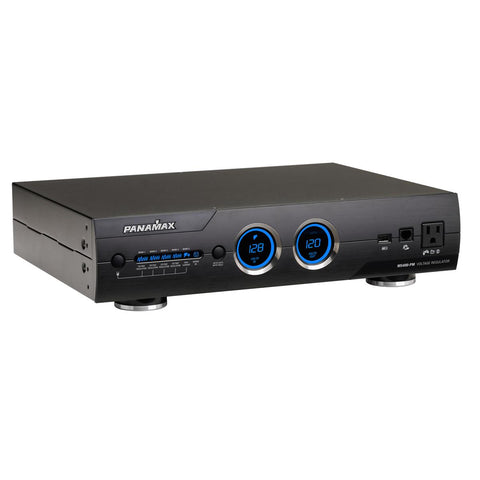

Panamax M5400-PM 11-Outlet Home Theater Power Conditioner

  • Sale
  • $ 739.95


Panamax PM family’s highest level of power filtration plus voltage regulation ensure components receive a consistent level of clean power. Improves picture and sound quality by eliminating noise across the entire AC bandwidth.

AUTHORIZED DEALER - FULL WARRANTY

  • Feature Sheet
  • Clean power level 4+
  • Voltage regulation
  • Automatic voltage monitoring (AVM)
  • High current outlets
  • USB charger
  • Gaming LAN port
  • 5 isolated outlet banks
  • 12 volt trigger
  • Power sequencing
  • 11 outlets
  • Weight: 20 lbs
  • Rack Ears: Included
  • Dimensions: 17"w x 12.75"d x 3.5"h , (4.1" including feet)
  • AC Power:
    • UL1449 Suppression Rating: 330V
    • Thermal Fusing: Yes
    • Protection Modes: L-N, L-G, N-G
    • Power Cord: 10 ft detachable
    • Peak Impulse Current: 72,000 A
    • Maximum Current Rating: 15 A
    • Line Voltage: 120V, 60Hz
    • Initial Clamping Level: 200V
    • Energy Dissipation: 2125 Joules
    • Catastrophic Surge Circuit: Yes
    • Auto-Resetting Under-voltage shutoff: 86V ± 6V
    • Auto-Resetting Over-voltage shutoff: 142 VAC ± 8 VAC
  • EMI/RFI Noise Filtration:
    • Banks: 1, 2, 3, 4 80 db, 100 KHz − 2 MHz
    • Bank 5, High Current Outlets: 60 db, 100 KHz − 2 MHz
  • Voltage Regulation: (Banks 1-4)
    • Power / Current: 1500 VA / 12A
    • Output Voltage Range: 120 VAC ± 6 VAC
    • Input Voltage Range: 100-136 VAC
    • Buck Stage: reduces voltage in the 125-136 V range
    • Boost Stage 2: boosts voltage in the 100-109 V range
    • Boost Stage 1: boosts voltage in the 109-119 V range
  • DC Trigger Input:
    • Voltage and Polarity: 3 - 24V DC, Bidirectional
    • Jacks: 3.5mm (1/8" mono mini-plug)
    • Current Requirement: 4.6 mA @3V, 58 mA @24V
  • DC Trigger Output: Positive = Tip, Negative = Ring
  • Pass through: No delay
  • LAN Circuits:
    • Wires Protected: 8-Wires
    • Connectors: RJ-45
    • Compatibility: 10/100bT
    • Clamping Level: 52V
  • USB Circuit:
    • Power Delivery: 500 mA @ 5VDC
    • Jacks: USB-A
  • Telco Protection:
    • Wires Protected: 2-Wire, Pins 4 & 5
    • Suppression Modes: Metallic & Longitudinal
    • Fuseless/Auto-resetting: Yes
    • Connectors: RJ-11
    • Clamping Level: 260V
    • Capacitance: 30pf (approx.)
  • Universal Coax Protection:
    • Shielded: Yes
    • Insertion Loss: < 0.5 dB
    • HD 1080 i/p Ready: Yes
    • Frequency Range: 0 MHz - 2.2 GHz
    • Connections: Female "F", Gold Plated
    • Clamping Level: 75V
    • Bidirectional: Yes
