DESCRIPTION

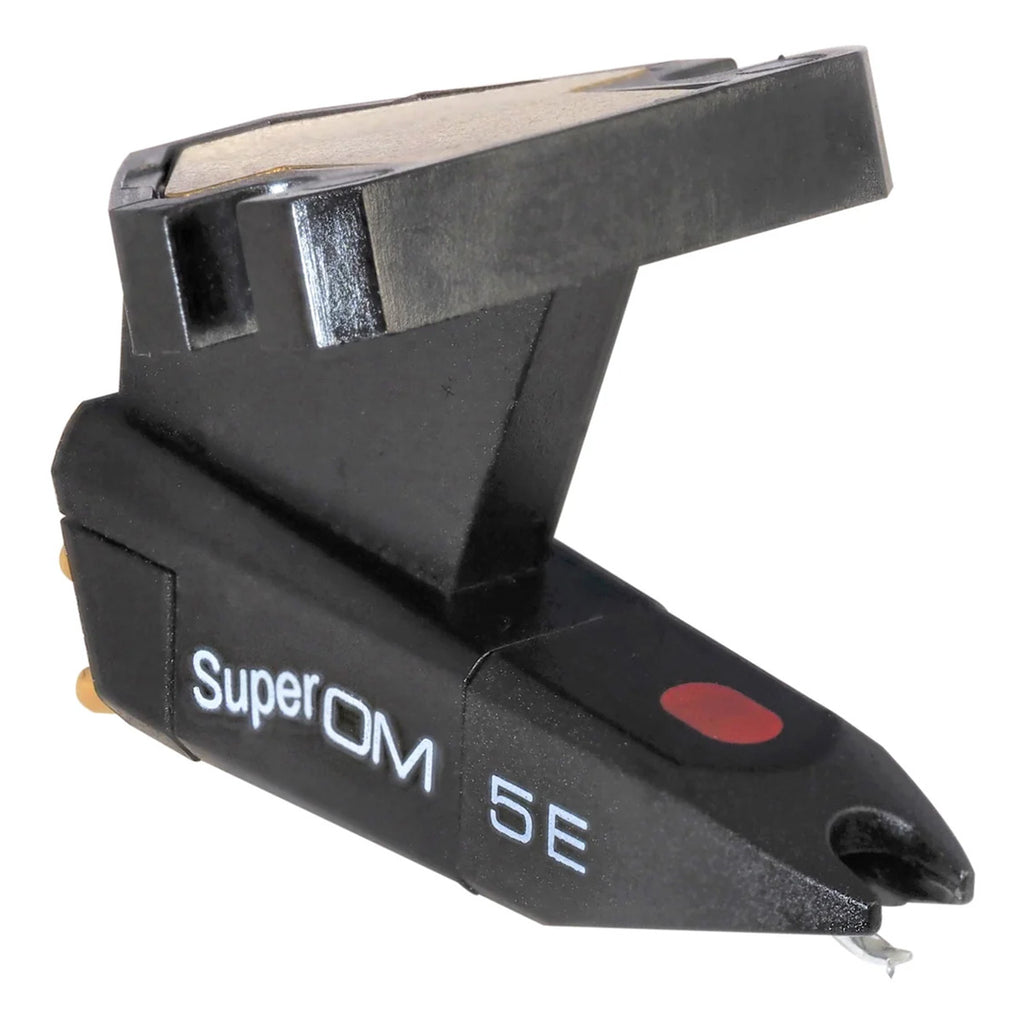

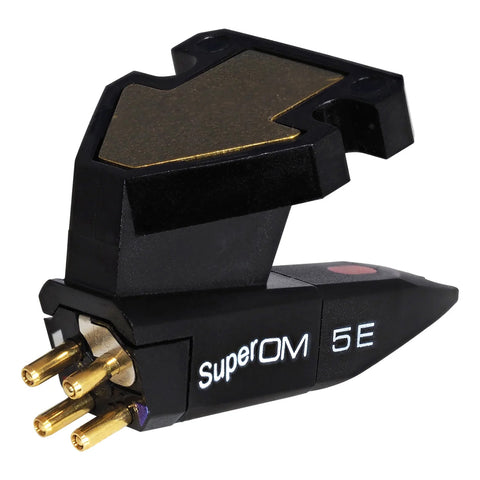

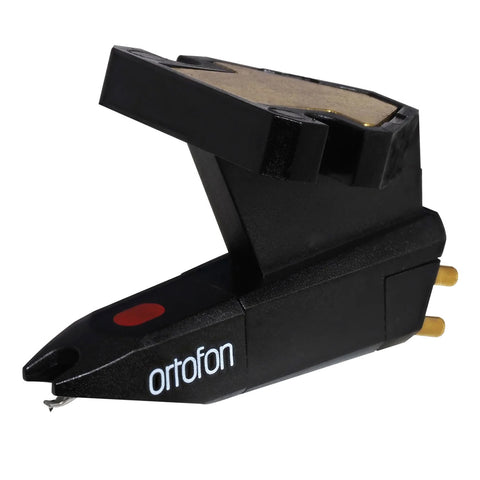

The Super OM 5E features improved linearity, higher channel separation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.
Features
Eliptical Stylus
Ortofon's Lowest-Mass Range of MM Cartridge
Removable Weight-Plate
Designed for Easy Mounting & Alignment
Excellent Stylus Compatibility
Styli Types And Interchangeability
By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget. In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.
Stylus Compatibility
Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.
Tracking ability at 315Hz at recommended tracking force: 60 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.5-2.0 g (15-20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1 kOhm
Cartridge color: Black/Black
Cartridge weight
incl. extra weight: 5 g
excl. extra weight: 2.5 g
Recommended load resistance: 47 kOhm
Internal inductance: 580 mH
Recommended load capacitance: 200-500 pF
