DESCRIPTION

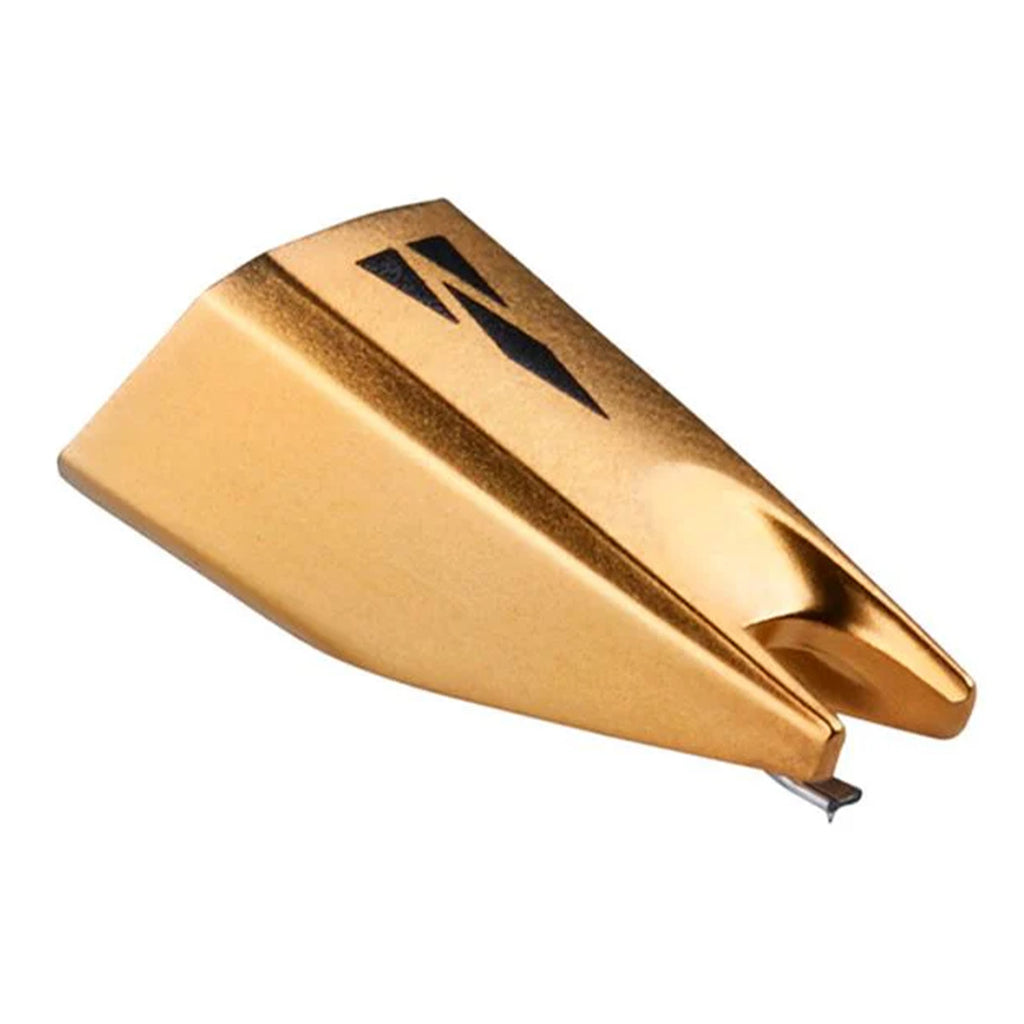

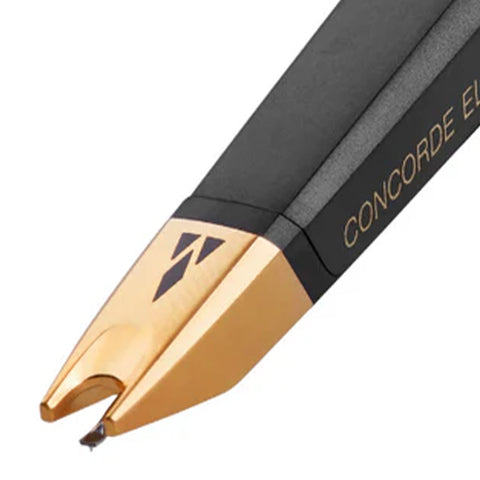

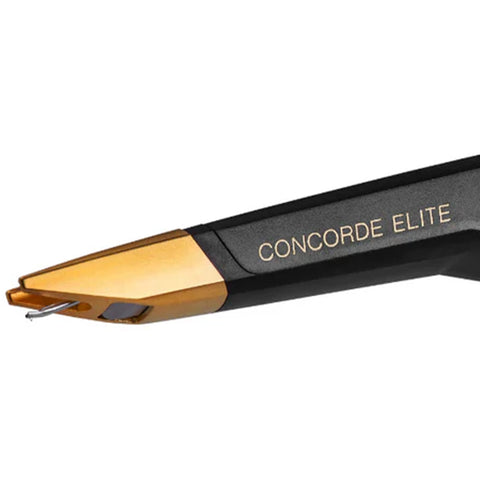

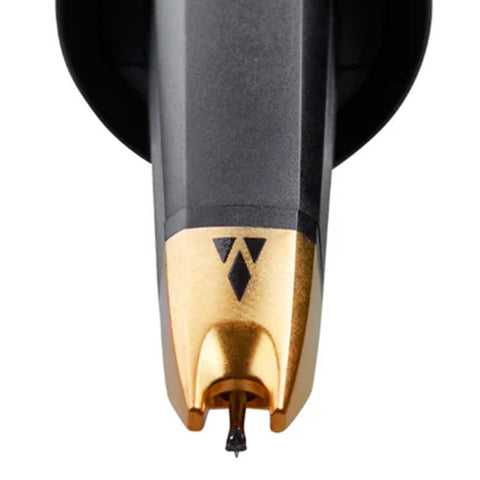

The Replacement Stylus for the Concorde Elite features a special-molded stylus body with real gold plating. Encased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.
The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details, and track even the highest frequency information.
SPECIFICATIONS
Channel balance at 1 kHz: 1 dB
Output voltage at 1 kHz, 5cm/sec: 8.5 mV
Channel separation at 1 kHz: 25 dB
Tracking ability at 315Hz: 100 μm
Compliance, dynamic, lateral: 13 μm/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 μm
Tracking force range: 2.0–4.0 g
Tracking force, recommended: 3.0 g
Tracking angle: 20°
Cartridge weight: stylus = 1 g
DESCRIPTION
The Replacement Stylus for the Concorde Elite features a special-molded stylus body with real gold plating. Encased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.
The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details, and track even the highest frequency information.
