DESCRIPTION
Optimum Compatibility and Sonic Purity

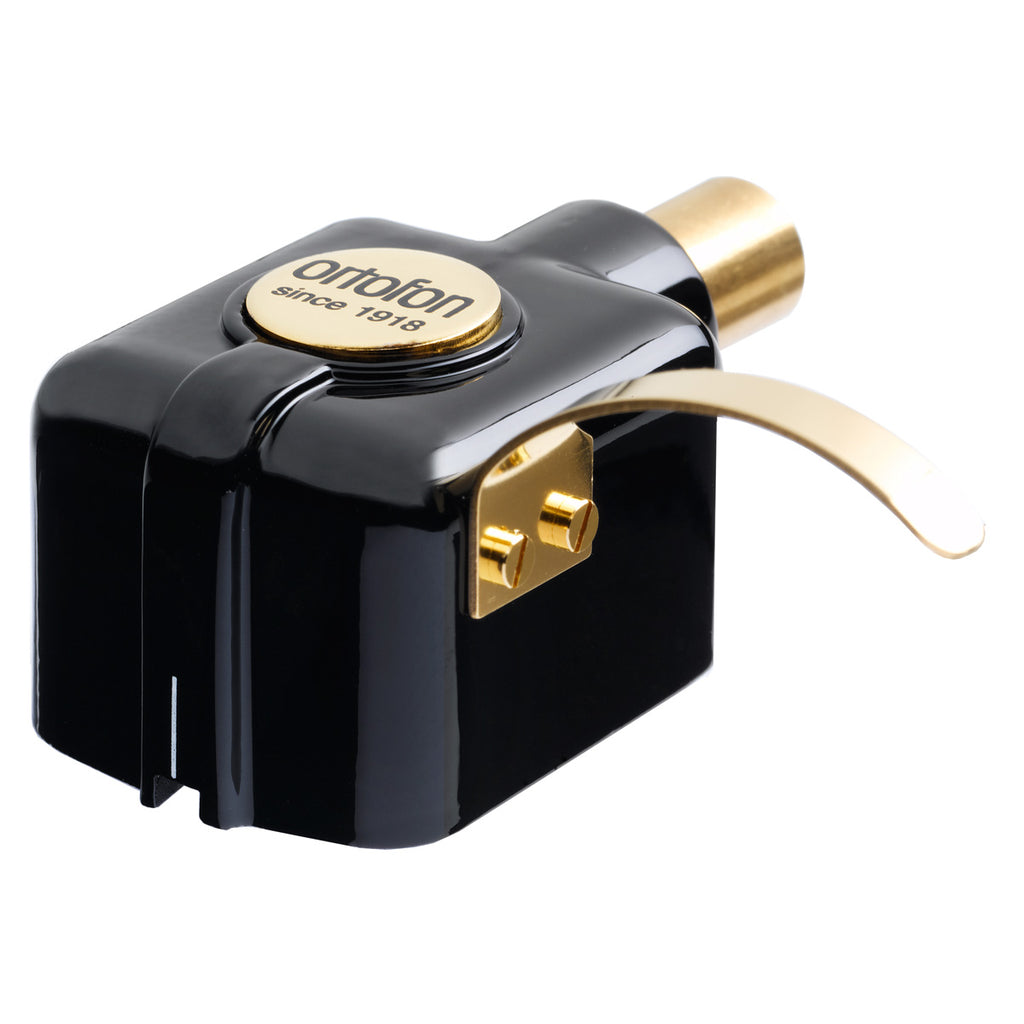

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems. While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.
SPECIFICATIONS
Output voltage at 1000Hz, 5cm/sec: 0.5mV
Channel balance at 1kHz: <1.5dB
Channel separation at 1kHz: >23dB
Channel separation at 15kHz > 15dB
Frequency response: 20 - 20,000Hz ± 2dB
Tracking ability at 315Hz at recommended tracking force: >70 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 2.5 - 3.5g (25 - 35mN)
Tracking force, recommended: 3.0g (30mN)
Tracking angle: 20°
Internal impedance, DC resistance: 2 ohm
Recommended load impedance: 10 - 50 ohm
Cartridge body material: Ground wood and resin composite
Coilwire material: High purity copper
Cartridge color: Shiny black
Cartridge weight: 30g
