DESCRIPTION

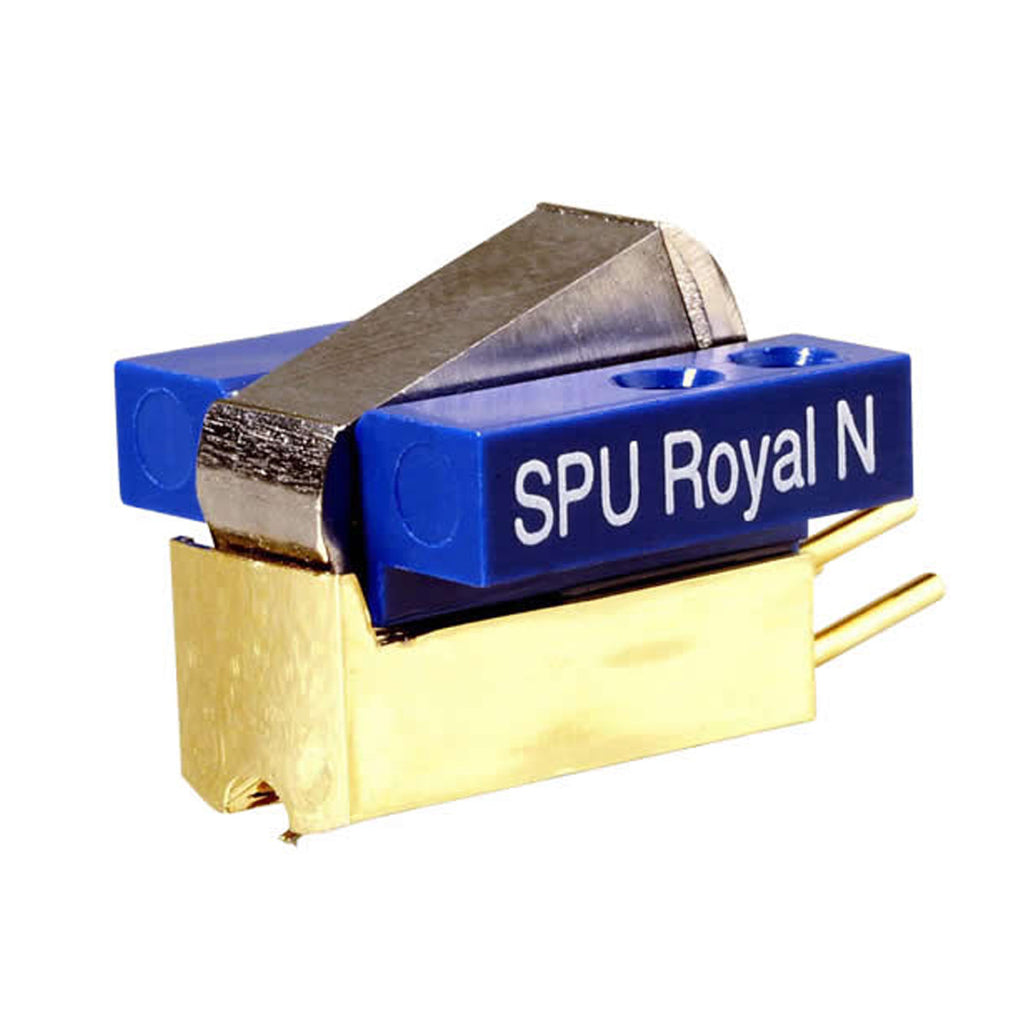

The SPU Royal N provides the same sound reproduction properties as the SPU Royal GM series. The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provide uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieve a higher level of linearity. High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
Note: The SPU Royal N is sold without the integrated headshell unit.
SPECIFICATIONS
Output voltage at 1kHz, 5cm/sec.: 0.2mV
Channel balance at 1kHz: <1dB
Channel separation at 1kHz: >25dB
Channel separation at 15kHz: >10dB
Frequency response: 20Hz - 20kHz ±1.5/-0dB
Tracking ability at 315Hz at recommended tracking force: >70μm
Compliance, dynamic, lateral: 8μm/mN
Stylus type: Nude Ortofon replicant 100
Stylus tip radius: r/R 5/100μm
Tracking force range: 2.5g - 3.5g (25 - 35mN)
Tracking force, recommended: 3.0g (30mN)
Tracking angle: 20º
Internal impedance, DC resistance: 6 ohm
Recommended load impedance: > 100 ohm
Coilwire material: Electrum
Cartridge weight: 13g
