DESCRIPTION

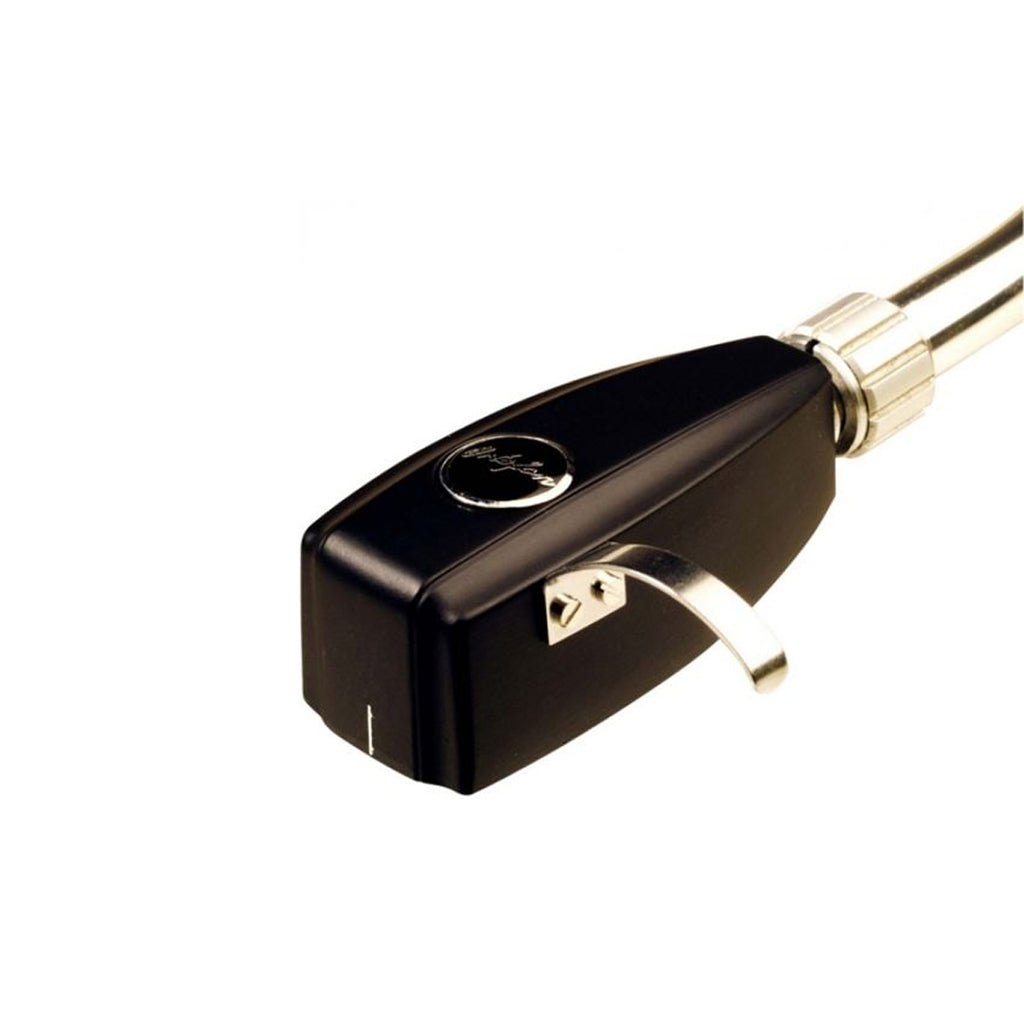

The Mono CG 25 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile, for the playback of early 25 µm mono recordings. The CG 25 Di MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII.
SPECIFICATIONS
Output voltage at 1000Hz, 5cm/sec: 1.5mV
Frequency response: 20 - 15,000Hz + 3/-1dB
Tracking ability at 315Hz at recommended tracking force: >60 µm
Compliance, dynamic, lateral: 7 µm/mN
Stylus type: Spherical
Stylus tip radius: R 25 µm
Tracking force range: 3.0 - 4.0g (30 - 40mN)
Tracking force, recommended: 3.5g (30mN)
Tracking angle: 20°
Internal impedance, DC resistance: 6 ohm
Recommended load impedance: >100 ohm
Cartridge body material: Ground wood and resin composite
Coilwire material: High purity copper
Cartridge color: Shiny black
Cartridge weight: 37g
