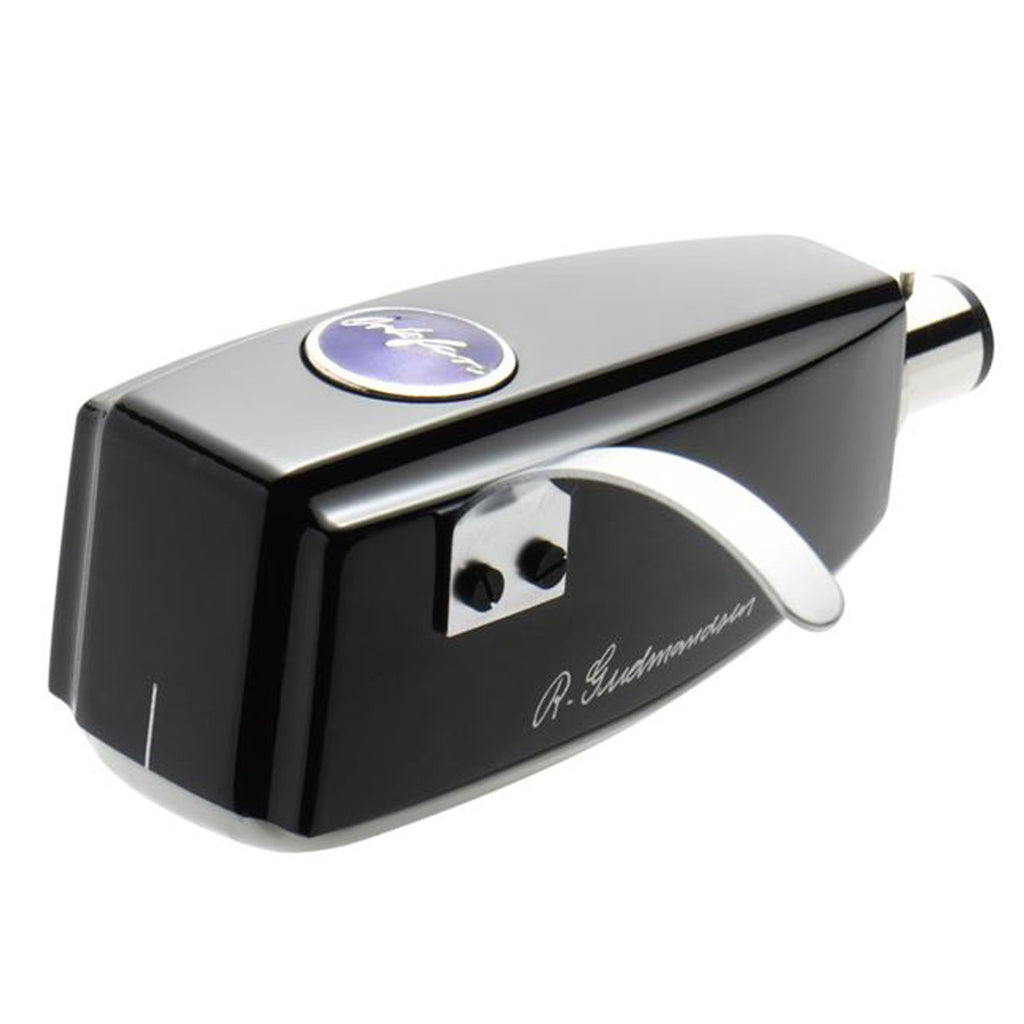

Ortofon SPU Meister Silver GM MKII Movng Coil Cartridge (Black)
$2,276.99
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
Improved Coil Winding Material, Stylus, and Magnet
The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999%) for a more open and revealing high end presentation. The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail. The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.
SPECIFICATIONS
Output voltage at 1000Hz, 5cm/sec: 0.3mV
Channel balance at 1kHz: <1dB
Channel separation at 1kHz: >20dB
Channel separation at 15kHz > 10dB
Frequency response: 20 - 20,000Hz + 2/-1dB
Tracking ability at 315Hz at recommended tracking force: >70 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 3.0 - 5.0g (30 - 50mN)
Tracking force, recommended: 4.0g (40mN)
Tracking angle: 20°
Internal impedance, DC resistance: 3 ohm
Recommended load impedance: >10 ohm
Cartridge body material: Ground wood and resin composite
Coilwire material: Silver, 6-nines
Cartridge color: Shiny black
Cartridge weight: 30g
DESCRIPTION
Improved Coil Winding Material, Stylus, and Magnet
The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999%) for a more open and revealing high end presentation. The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail. The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.
SPECIFICATIONS
Output voltage at 1000Hz, 5cm/sec: 0.3mV
Channel balance at 1kHz: <1dB
Channel separation at 1kHz: >20dB
Channel separation at 15kHz > 10dB
Frequency response: 20 - 20,000Hz + 2/-1dB
Tracking ability at 315Hz at recommended tracking force: >70 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 3.0 - 5.0g (30 - 50mN)
Tracking force, recommended: 4.0g (40mN)
Tracking angle: 20°
Internal impedance, DC resistance: 3 ohm
Recommended load impedance: >10 ohm
Cartridge body material: Ground wood and resin composite
