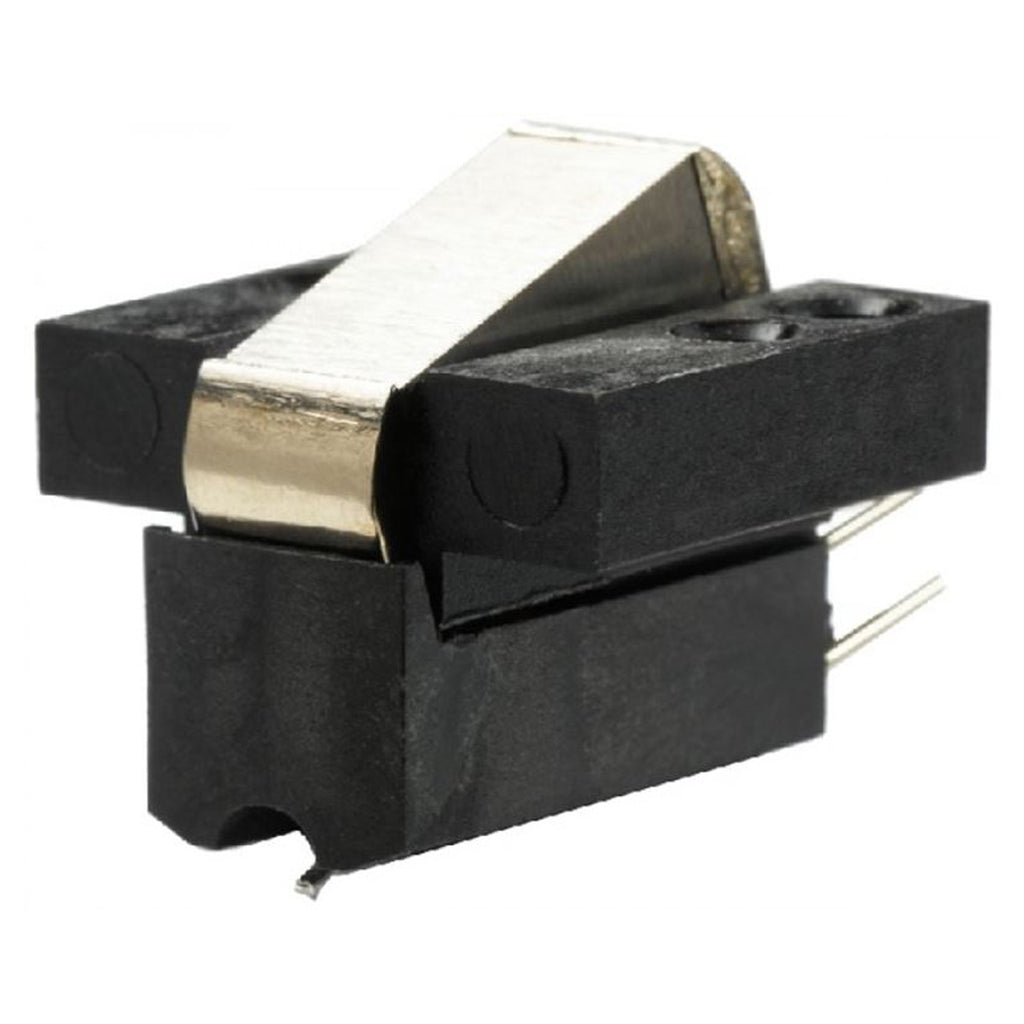

Ortofon SPU Classic N Moving Coil Cartridge (Black)
$1,037.99
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile that provides the same sound reproduction properties as the SPU Classic GM series.
Listeners who wish to mount the SPU Classic on a traditional headshell may do so by using an SPU N adaptor.
Note: The SPU Classic N is sold without the integrated headshell unit.
SPECIFICATIONS
Output voltage at 1kHz, 5cm/sec.: 0.2mV
Channel balance at 1kHz: <1dB
Channel separation at 1kHz: >20dB
Channel separation at 15kHz: >10dB
Frequency response: 20Hz - 20kHz ±3dB
Tracking ability at 315Hz at recommended tracking force: 65μm
Compliance, dynamic, lateral: 8μm/mN
Stylus type: Nude spherical
Stylus tip radius: R 18μm
Tracking force range: 3.0g - 5.0g (30 - 50mN)
Tracking force, recommended: 4.0g (40mN)
Tracking angle: 20º
Internal impedance, DC resistance: 2.5 ohm
Recommended load impedance: > 10 ohm
Coilwire material: High purity copper
Cartridge weight: 13g
DESCRIPTION
The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile that provides the same sound reproduction properties as the SPU Classic GM series.
Listeners who wish to mount the SPU Classic on a traditional headshell may do so by using an SPU N adaptor.
Note: The SPU Classic N is sold without the integrated headshell unit.
SPECIFICATIONS
Output voltage at 1kHz, 5cm/sec.: 0.2mV
Channel balance at 1kHz: <1dB
Channel separation at 1kHz: >20dB
Channel separation at 15kHz: >10dB
Frequency response: 20Hz - 20kHz ±3dB
Tracking ability at 315Hz at recommended tracking force: 65μm
