DESCRIPTION
Dynamic and Powerful Sound Reproduction

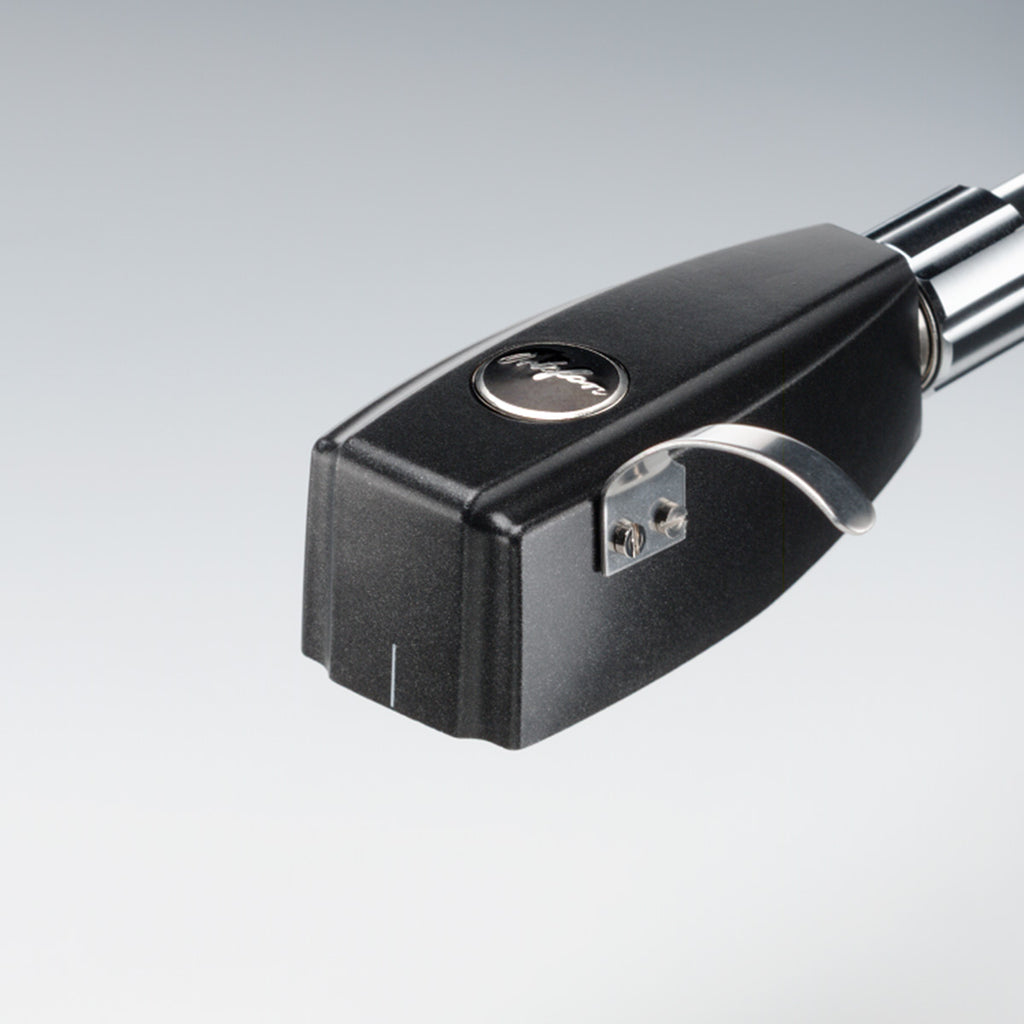

The SPU Classic GM MkII is a moving coil cartridge with an 18 µm spherical stylus profile. The SPU Classic series embodies the essence of the original moving coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
SPECIFICATIONS
Output voltage at 1000Hz, 5cm/sec: 0.2mV
Channel balance at 1kHz: <1dB
Channel separation at 1kHz: >20dB
Channel separation at 15kHz > 10dB
Frequency response: 20 - 20,000Hz + 3/-3dB
Tracking ability at 315Hz at recommended tracking force: >65 µm
Compliance, dynamic, lateral: 8 µm/mN
Stylus type: Nude spherical
Stylus tip radius: R 18 µm
Tracking force range: 3.0 - 5.0g (30 - 50mN)
Tracking force, recommended: 4.0g (40mN)
Tracking angle: 20°
Internal impedance, DC resistance: 2 ohm
Recommended load impedance: >10 ohm
Cartridge body material: Ground wood and resin composite
Coilwire material: High purity copper
Cartridge color: Shiny black
Cartridge weight: 30g
