Ortofon MC Quintet Bronze Moving Coil Cartridge (Bronze)
$849.99
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The Quintet Bronze Moves Into Higher League of Quintets

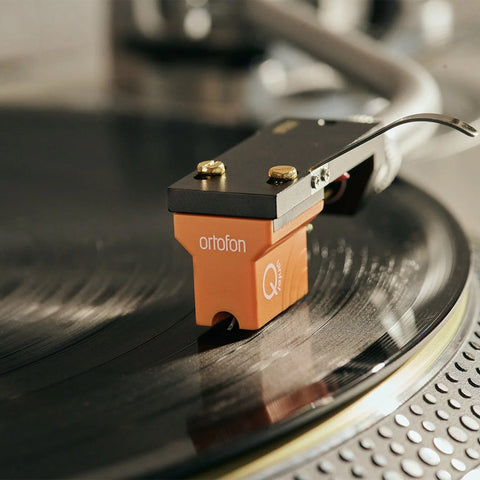

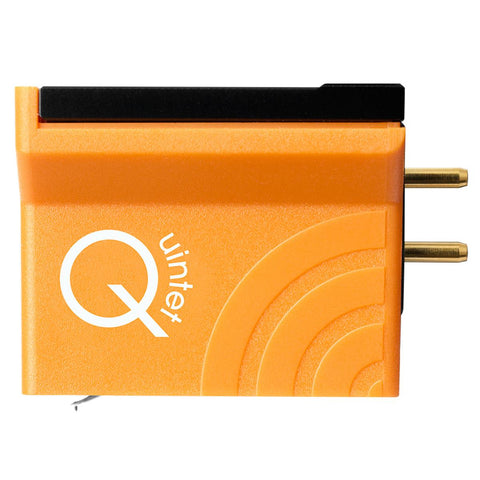

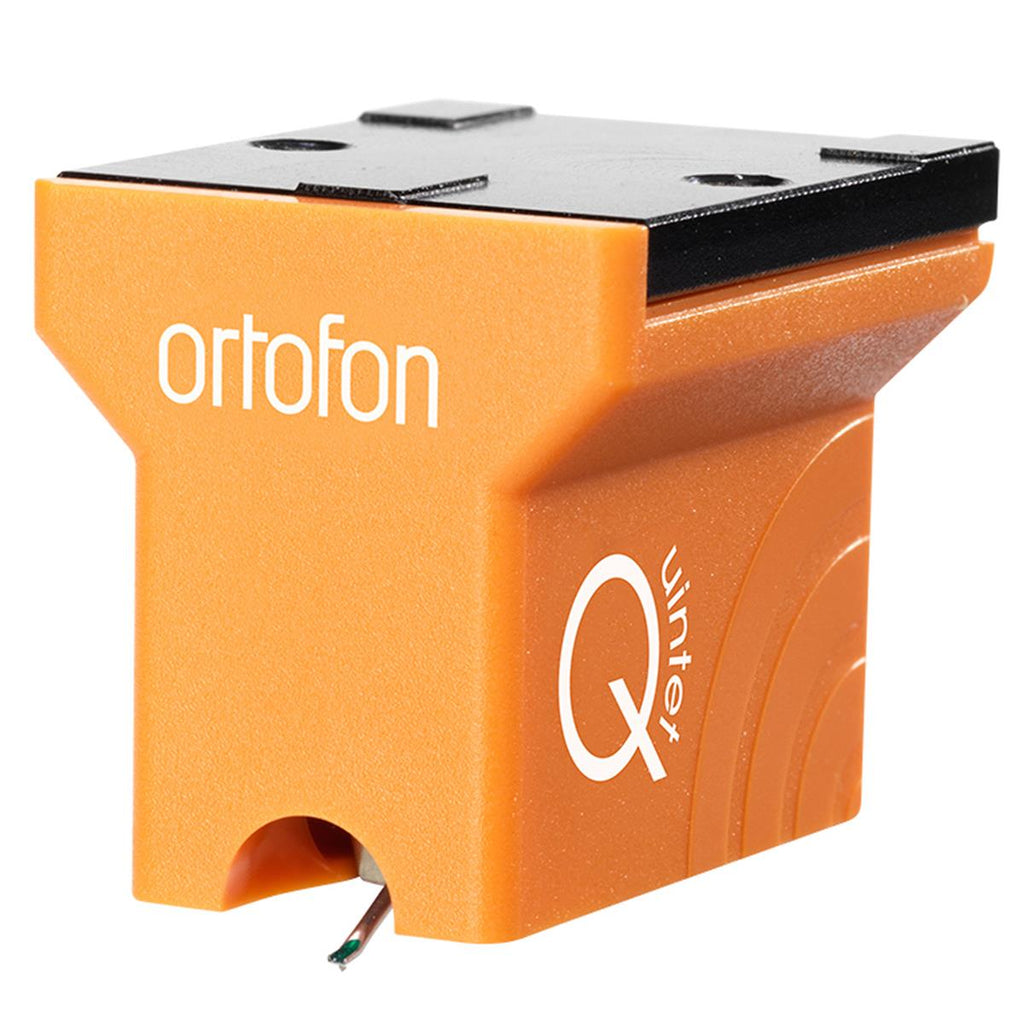

The slim profile of the Quintet Bronze Moving Coil's Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally its larger footprint ensures reduced distortion and record wear. The sound will be very even-handed with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
Ease of use
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminum frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell. The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
SPECIFICATIONS
Output voltage at 1000Hz, 5cm/sec.: 0.3mV
Channel balance at 1kHz: <1.2dB
Channel separation at 1kHz: >23dB
Channel separation at 15kHz: >15dB
Frequency range at -3dB: 20Hz - 25kHz
Frequency response: 20Hz - 20kHz +/-1.5
Tracking ability at 315Hz at recommended tracking force: 80μm
Compliance, dynamic, lateral: 15μm/mN
Stylus type: Nude Fine Line
Stylus tip radius: r/R 8/40μm
Tracking force range: 2.1g - 2.5g (21 - 25mN)
Tracking force, recommended: 2.3g (25mN)
Tracking angle: 20º
Internal impedance, DC resistance: 5 ohm
Recommended load impedance: >20 ohm
Cartridge body material: ABS aluminum
Coil wire material: Pure 4-nines copper
Cartridge weight: 9g
