DESCRIPTION
Step into an Era of Authenticity with the 2MR Mono Cartridge, thoughtfully crafted with a stylus' tip that features an R 18µm Nude Spherical diamond to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.
Features
Nude Spherical Diamond Stylus
Authentic Mono Record Playback
High-Performance Quad Coil Motor
True Mono Strapped Output
Low-Profile Cartridge Housing
Quick Two-Screw Mounting
Stylus
Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.
Output
The 2MR Mono features a high-performance motor system with quad coils and Ortofon’s very own invention: the split pole pins. The 2MR Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
Compatibility

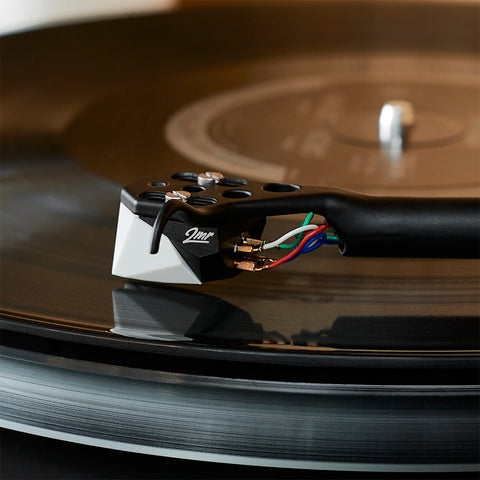

The 2MR Mono 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.
SPECIFICATIONS
Output Voltage At 1 kHz, 5cm/sec: 4 mV
Frequency Response 20 Hz–20 kHz: +3 / -1 dB
Tracking Ability At 315 Hz: 70 µm
Compliance, Dynamic, Lateral: 18 µm/mN
Cantilever Material: Aluminium
Stylus Type: Nude Spherical
Stylus Tip Radius: R18 µm
Tracking Force Range: 1.6–2.0 g (16–20 mN)
Tracking Force, Recommended: 1.8 g (18 mN)
Tracking Angle: 20°
Internal Impedance, DC Resistance: 700 Ohm
Cartridge Colour: Black/White
Cartridge Weight: 0.013 lbs
Recommended Load Resistance: 47 kOhm
Internal Inductance: 350 mH
Stylus Colour: White
Mounting Type: Half Inch Mount
