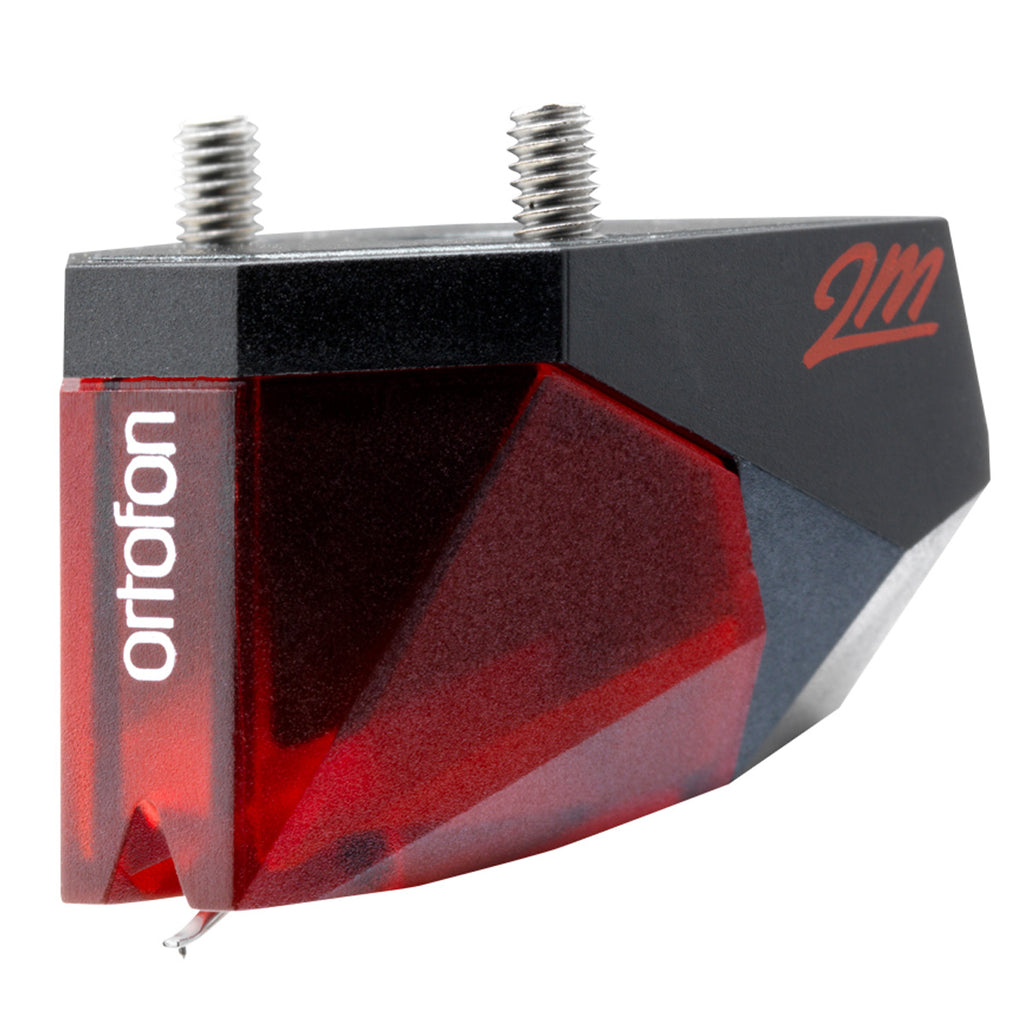

Ortofon 2M Red Verso Moving Magnet Cartridge (Red)
$139.99
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
An Alternative Product for Bottom Mount Tonearms
In addition to the range of acclaimed 2M top-mount models, Ortofon is proud to present the new 2M Verso configuration for bottom mounting. Every 2M model is now also available in “Verso” configuration to allow easy mounting on tonearms which do not allow the screws to pass through the top of the headshell.
Features
Advancements in Sound
The 2M Series features Ortofon’s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 and Ortofon OM Series.
Ease of Use
The weight and size of 2M Series have been optimized to fit the most common turntables on the market today. The cartridge body has also been streamlined to provide easy mounting and alignment. The name “2M” was chosen as it represents the abbreviation for moving magnet, MM. Moving magnet cartridges provide excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.
Stylus Types
All of the 2M cartridges feature diamonds that are polished to the highest standards of the industry.
SPECIFICATIONS
Output voltage at 1kHz, 5cm/sec.: 5.5mV
Channel balance at 1kHz: 1.5dB
Channel separation at 1kHz: 22dB
Channel separation at 15kHz: 15dB
Frequency range at -3dB: 20 - 25,000Hz
Frequency response: 20 - 22,000Hz +3/-1dB
Tracking ability at 315Hz at recommended tracking force: 70μm
Compliance, dynamic, lateral: 20μm/mN
Stylus type: Elliptical
Stylus tip radius: R 8/18μm
Tracking force range: 1.6g - 2g (16 - 20mN)
Tracking force, recommended: 1.8g (18mN)
Tracking angle: 20º
Internal impedance, DC resistance: 1.3kOhm
Internal inductance: 700mH
Recommended load resistance: 47k Ohm
Recommended load capacitance: 150 - 300pF
Cartridge weight without screws: 7.2g
DESCRIPTION
An Alternative Product for Bottom Mount Tonearms
In addition to the range of acclaimed 2M top-mount models, Ortofon is proud to present the new 2M Verso configuration for bottom mounting. Every 2M model is now also available in “Verso” configuration to allow easy mounting on tonearms which do not allow the screws to pass through the top of the headshell.
Features
Advancements in Sound
The 2M Series features Ortofon’s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 and Ortofon OM Series.
Ease of Use
The weight and size of 2M Series have been optimized to fit the most common turntables on the market today. The cartridge body has also been streamlined to provide easy mounting and alignment. The name “2M” was chosen as it represents the abbreviation for moving magnet, MM. Moving magnet cartridges provide excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.
Stylus Types
All of the 2M cartridges feature diamonds that are polished to the highest standards of the industry.
SPECIFICATIONS
Output voltage at 1kHz, 5cm/sec.: 5.5mV
Channel balance at 1kHz: 1.5dB
Channel separation at 1kHz: 22dB
Channel separation at 15kHz: 15dB
Frequency range at -3dB: 20 - 25,000Hz
Frequency response: 20 - 22,000Hz +3/-1dB
Tracking ability at 315Hz at recommended tracking force: 70μm
