The NAD CI 8-120 DSP V2 8-Channel Distribution Amplifier is a powerful, rack-mountable solution designed for high-performance multi-room audio systems. Delivering 120 watts per channel into 8 ohms across eight channels, this amplifier uses advanced HybridDigital amplification with Hypex UcD technology for low distortion, high efficiency, and consistent, dynamic sound. It can be bridged to four channels at 200 watts per channel, providing flexible power for demanding speaker loads and long cable runs.
Built for custom installations, the CI 8-120 DSP V2 features integrated DSP with a 5-band parametric EQ, high/low pass filters, and advanced tuning controls accessible via a web-based interface. Ethernet connectivity enables IP control, diagnostics, and seamless integration with systems like Control4 and Crestron. Its compact 1U rack design, thermostatic cooling, and energy-efficient standby modes ensure reliability and space efficiency. Ideal for residential or commercial installations, this amplifier delivers audiophile-grade performance with complete system control.

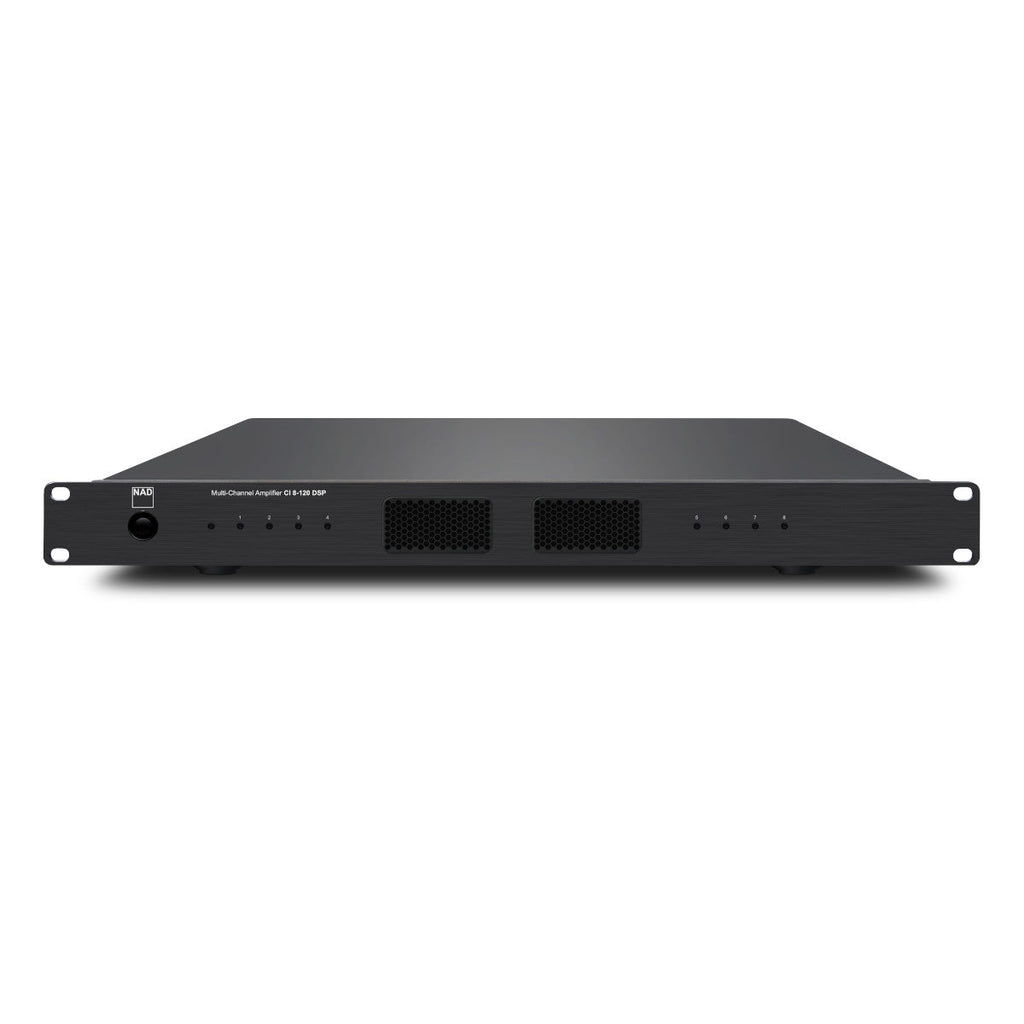

NAD Electronics CI 8-120 DSP V2 8 Multi-Channel Network Power Amplifier (Black)
- $3,299.00
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The NAD CI 8-120 DSP V2 8-Channel Distribution Amplifier is a powerful, rack-mountable solution designed for high-performance multi-room audio systems. Delivering 120 watts per channel into 8 ohms across eight channels, this amplifier uses advanced HybridDigital amplification with Hypex UcD technology for low distortion, high efficiency, and consistent, dynamic sound. It can be bridged to four channels at 200 watts per channel, providing flexible power for demanding speaker loads and long cable runs.
Built for custom installations, the CI 8-120 DSP V2 features integrated DSP with a 5-band parametric EQ, high/low pass filters, and advanced tuning controls accessible via a web-based interface. Ethernet connectivity enables IP control, diagnostics, and seamless integration with systems like Control4 and Crestron. Its compact 1U rack design, thermostatic cooling, and energy-efficient standby modes ensure reliability and space efficiency. Ideal for residential or commercial installations, this amplifier delivers audiophile-grade performance with complete system control.
- 8 Channels x 120 Watts @ 8 Ohms, HybridDigital with Hypex UcD
- Bridgeable to 4 Channels x 200 Watts @ 8 Ohms
- Effectively Handles Long Cable Runs and Difficult Speaker Loads
- Ethernet Port for IP Control, Custom Web UI with Virtual I/O Panel, and Performance Diagnostics
- DSP with 5 Band Parametric EQ, Plus High and Low Pass Filters
- Dual Global Inputs/Outputs
- 1U Rack Height
- 5W Standby Mode, 3W Network Standby
- 12V Trigger In; IR In/Out
- Thermostatic Fan Cooling with Front Vents
- Auto Sense Turn On and Eco Mode
- Control Drivers for Crestron, Control4, Elan, RTI, URC
In The Box
- CI 8-120 DSP V2 8 Channel Distribution Amplifier
- Power Cord
- Manual
- Connections
- Line Input: Yes
- Speaker Out: Yes
- Power Output
- Continuous Output Power into 8 Ohms: >120 W (all channels driven), >130 W (two channels driven)
- Continuous Output Power into 4 Ohms: >135 W (all channels driven), >230 W (two channels driven)
- Continuous Output Power into 8 Ohms (Bridged Mode): >200 W (all channels driven), >320 W (two channels driven)
- Performance
- THD (20 Hz – 20 kHz): <0.05% (1 W to 100 W, 8 ohms and 4 ohms)
- Signal-to-Noise Ratio: >88 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping Power (All Channels Driven): >130 W (1 kHz, 8 ohms, 0.1% THD), >150 W (1 kHz, 4 ohms, 0.1% THD)
- Clipping Power into 8 Ohms (Bridged Mode): >300 W (1 kHz, 0.1% THD – all channels driven), >400 W (1 kHz, 0.1% THD – two channels driven)
- IF Dynamic Power (All Channels Driven):
- 8 Ohms: 125 W
- 4 Ohms: 200 W
- 2 Ohms: 180 W
- IHF Dynamic Power (Two Channels Driven):
- 8 Ohms: 145 W
- 4 Ohms: 260 W
- 2 Ohms: 300 W
- IHF Dynamic Power (Bridged Mode, All Channels Driven):
- 8 Ohms: 440 W
- 4 Ohms: 350 W
- 2 Ohms: 230 W
- IHF Dynamic Power (Bridged Mode, Two Channels Driven):
- 8 Ohms: 480 W
- 4 Ohms: 380 W
- 2 Ohms: 300 W
- Peak Output Current: >20 A (1 ohm, 1 ms)
- Damping Factor: >110 (ref. 8 ohms, 20 Hz to 6.5 kHz)
- Frequency Response: ±0.5 dB (20 Hz – 20 kHz)
- Channel Separation: >70 dB (1 kHz), >65 dB (10 kHz)
- Input/Output
- Maximum Undistorted Input Level: 2900 mV
- Input Sensitivity (for 120 W in 8 Ohms, Maximum Volume): 1150 mV
- Analog Input Audio Sense Threshold (One Channel with Signal): 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
- Trigger In Level: 3 – 30 VDC
- Power
- Standby Power: 0.5 W
- Dimension and Weight
- Dimensions (W x H x D): 19-1/16 x 1-13/16 x 17-3/16”
- Shipping Weight: 22 lbs
PRODUCT INFORMATION:
Model: CI 8-120 DSP V2 | Barcode: 786357003108
