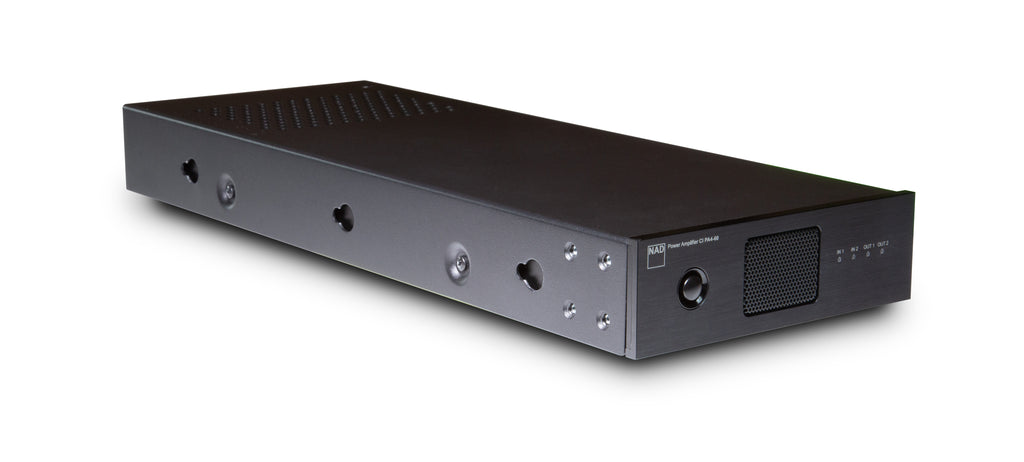

The NAD CI PA4-60 Power Amplifier Module is a high-performance, rack-friendly 4-channel amplifier built for custom installations. Delivering 4 × 60 W or 2 × 120 W with DirectDigital™ amplification, it ensures transparent, dynamic sound with long cable runs and demanding speaker loads. Flexible inputs with stereo/mono selection, gain controls, and RCA loop outputs make it easy to expand systems up to 12 channels in just 1U of rack space. With thermostatic cooling, Phoenix connectors, 12 V triggers, signal sensing, and NAD’s innovative ChassisLink system, the CI PA4-60 offers installers unmatched reliability, scalability, and installation flexibility for distributed audio or home theater applications.
NAD CI PA4-60 Power Amplifier Module
- $1,099.00
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The NAD CI PA4-60 Power Amplifier Module is a high-performance, rack-friendly 4-channel amplifier built for custom installations. Delivering 4 × 60 W or 2 × 120 W with DirectDigital™ amplification, it ensures transparent, dynamic sound with long cable runs and demanding speaker loads. Flexible inputs with stereo/mono selection, gain controls, and RCA loop outputs make it easy to expand systems up to 12 channels in just 1U of rack space. With thermostatic cooling, Phoenix connectors, 12 V triggers, signal sensing, and NAD’s innovative ChassisLink system, the CI PA4-60 offers installers unmatched reliability, scalability, and installation flexibility for distributed audio or home theater applications.
- 4 x 60 W or 2 x 120 W (continuous into 8 ohms) DirectDigital™ amplification
- Dynamic Power Management auto-detects speaker loads and routes power
- Load-invariant design handles long cable runs and difficult speaker loads
- Compact 1/3 width x 1U height with ChassisLink rack mount system
- Thermostatic fan cooling

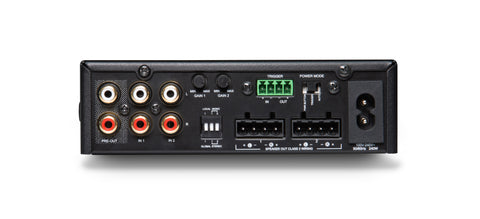

- Two RCA line inputs with gain control and stereo/mono selection
- Global/local input switching for flexible signal routing
- Stereo/mono selection for Inputs 1 and 2
- RCA loop output from Input 1 for daisy-chaining
- Two 4-pin snap-on Phoenix speaker connection blocks
- Multiple power control options: 12 V trigger in/out, front-panel switch, signal sensing
- Flexible rack-mount, and surface placement options
Included Accessories
- 120V AC Power Cord
- 230V AC Power Cord
- 2 x Short rack ears (also used as wall mount brackets)
- 2 x Long Rack ears/Blacnking plates
- 2 x Shoulder Bolts + 2 x Rubber Washers (already attached for ChassisLink)
- 2 x 4-PIN Snap On PHX 5.08mm Speaker Connectors
- 1 x 4-PIN PHX Connector for 12v Trigger In/Out
- 4x optional stick on rubber feet
- Signal-to-Noise Ratio: -102dBA
- Distortion: THD+N, 0.005%
- Amplification: DirectDigital™
- Rated Power Output: Dynamic Power Management - 120W x 2 or 60W x 4 (8 Ohms)
- IHF Dynamic Power: 300W (4ohm)/200w (8ohm)
- Power Supply: Universal 2-pin AC cord input (100-240AC)
- Inputs: 2 x Stereo RCA
- Outputs: 1 x Stereo RCA Pre-Out, 2 x Speaker outputs
- Speaker Terminals: 2x 4-PIN Snap On PHX 5.08mm Connector (Supports up to 12 AWG)
- 12v Trigger Input: x1 (Unit Power On)
- 12v Trigger Output: x1
- Input Gain Control: x2 Input Gain Potentiometers (-6 to +6 dB range)
- Power Mode Control: 3-way switch (Power Button, 12v Trigger, Signal Sense options)
- Input Control: Input 1 Local/Global, x2 Input Stereo/Mono selection
- Status Indicator: Power Status LED
- Source Status Indicator: x2, Connected Input Active
- Output Status Indicator: x2, Output pair 1, Output Pair 2 (Output active, Temperature/Protection warning)
- Max Power Consumption: TDB
- Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
- Operating Environment: 0°C to 40°C
- Product Dimensions: 146.5 x 44 x 384 mm | 5.77 x 1.73 x 15.11 inches
- Product Weight: 2.35 kg/5.18 lbs
PRODUCT INFORMATION:
Model: PA4-60 | Barcode:
