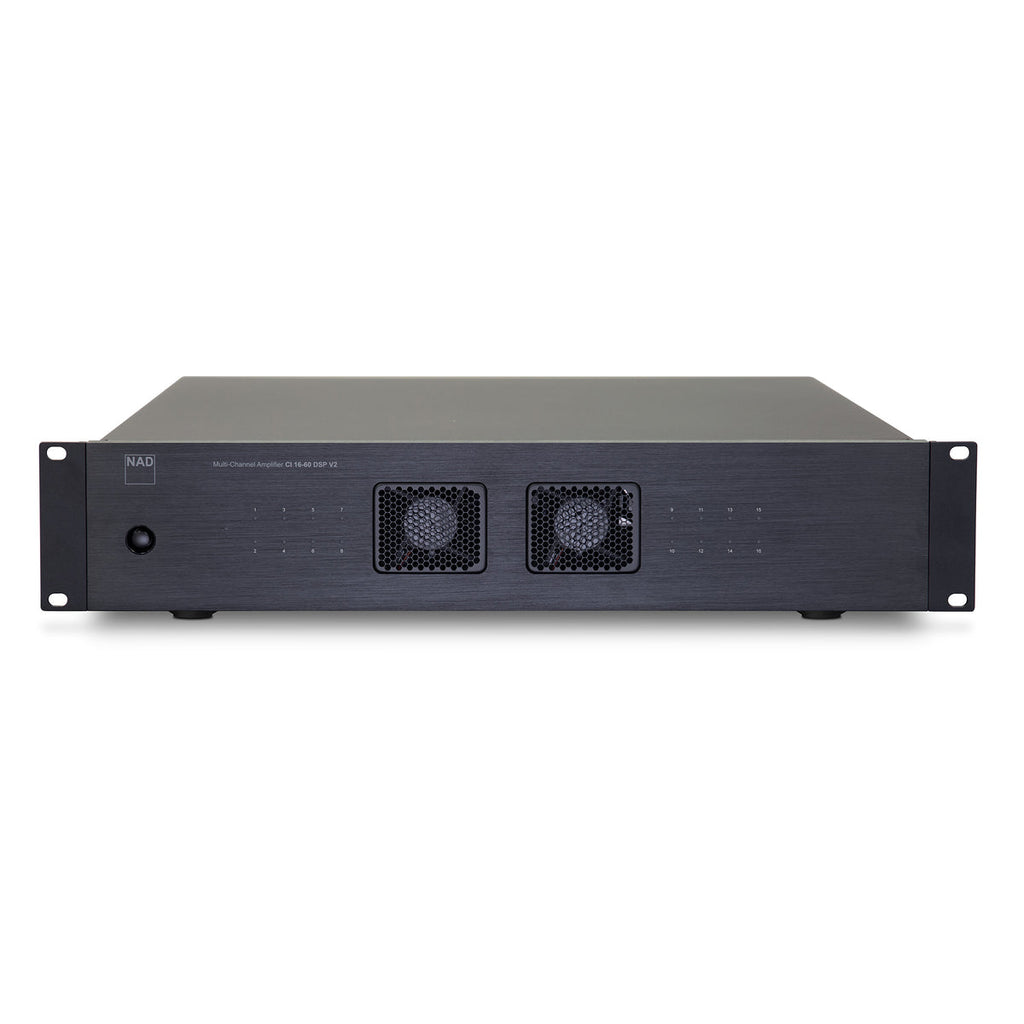

The NAD CI 16-60 DSP V2 Multi-Channel Network Power Amplifier is a high-performance solution designed for modern distributed audio and custom installation systems. Delivering 16 channels of efficient HybridDigital™ amplification at 60 watts per channel into 8 ohms, this rack-mount amplifier provides reliable, continuous power for multi-zone residential and commercial environments. Built for scalability, it pairs seamlessly with the NAD CI 580 V2 network music player, creating a cost-effective, high-quality whole-home audio system.
With bridgeable channel pairs, flexible line-level inputs, and automation-friendly controls, the CI 16-60 DSP V2 adapts easily to complex installations. Integrated DSP enables precise tuning, ensuring balanced sound, optimized speaker performance, and consistent audio quality across all zones. NAD’s Full Disclosure Power (FDP) guarantees honest, real-world performance with all channels driven simultaneously. Engineered for efficiency, low heat, and long-term reliability, this amplifier is the ideal backbone for scalable, high-density audio distribution systems.
NAD CI 16-60 DSP V2 16 Multi-Channel Network Power Amplifier
- $3,899.00
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The NAD CI 16-60 DSP V2 Multi-Channel Network Power Amplifier is a high-performance solution designed for modern distributed audio and custom installation systems. Delivering 16 channels of efficient HybridDigital™ amplification at 60 watts per channel into 8 ohms, this rack-mount amplifier provides reliable, continuous power for multi-zone residential and commercial environments. Built for scalability, it pairs seamlessly with the NAD CI 580 V2 network music player, creating a cost-effective, high-quality whole-home audio system.
With bridgeable channel pairs, flexible line-level inputs, and automation-friendly controls, the CI 16-60 DSP V2 adapts easily to complex installations. Integrated DSP enables precise tuning, ensuring balanced sound, optimized speaker performance, and consistent audio quality across all zones. NAD’s Full Disclosure Power (FDP) guarantees honest, real-world performance with all channels driven simultaneously. Engineered for efficiency, low heat, and long-term reliability, this amplifier is the ideal backbone for scalable, high-density audio distribution systems.
- 16 channels of HybridDigital amplification for distributed audio systems
- 60 watts per channel into 8 ohms
- Bridgeable channel pairs for high-power output when required
- Rack-mount chassis for space-efficient installations
- Optimized for continuous, long-term operation

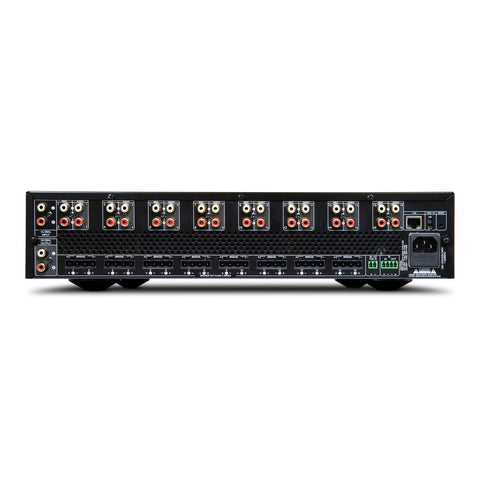

- Line-level inputs and loop outs forflexible system compatibility
- Automation-friendly trigger and control options
- Designed for scalability in large multi-zone systems
- Continuous output power into 8 ohms: 60 W (all channels driven, 1kHz 0.05% THD
- Into 4 ohms: 65 W (all channels driven, 1kHz 0.05% THD
- Continuous output power into 8 ohms at Bridged mode: 140 W (all channels driven, 1kHz 0.05% THD
- THD (1 W to 50 W, 8 ohms and 4 ohms): 0.05 % (20 Hz – 3 kHz)
- Signal-to-Noise Ratio: 80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping power (all channels driven): 60 W (1 kHz 8 ohms 1 % THD)
- Clipping power into 8 ohms at Bridged mode: 150 W (1 kHz 1 % THD - all channels driven)
- IHF Dynamic Power (all channels driven): 8 ohms: 65 W
- IHF Dynamic Power (two channels driven): 8 ohms: 70 W
- IHF dynamic power (Bridged mode, all channels driven): 8 ohms: 270 W
- IHF Dynamic Power (two channels driven): 8 ohms: 280 W
- Peak output current: 15 A (1 ohm, 1 ms)
- Damping factor: 110 (20 Hz to 1 kHz 8 ohms)
- Frequency response: ±1dB (20 Hz - 20 kHz)
- Channel separation: 60 dB (1 kHz)
- Maximum undistorted input level: 2900 mV
- Input sensitivity (for 50 W in 8 ohms, maximum volume): 760 mV
- Input impedance: 20 kohms//220pF
- Analog input audio sense threshold (one channel with signal): 3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)
- Trigger IN level: 3 - 30 Vdc
- Standby power: 0.5W
- Gross dimensions (W x H x D)*: 19.01x3.93x17.12
PRODUCT INFORMATION:
Model: CI 16-60 DSP V2 | Barcode: 786357001401
