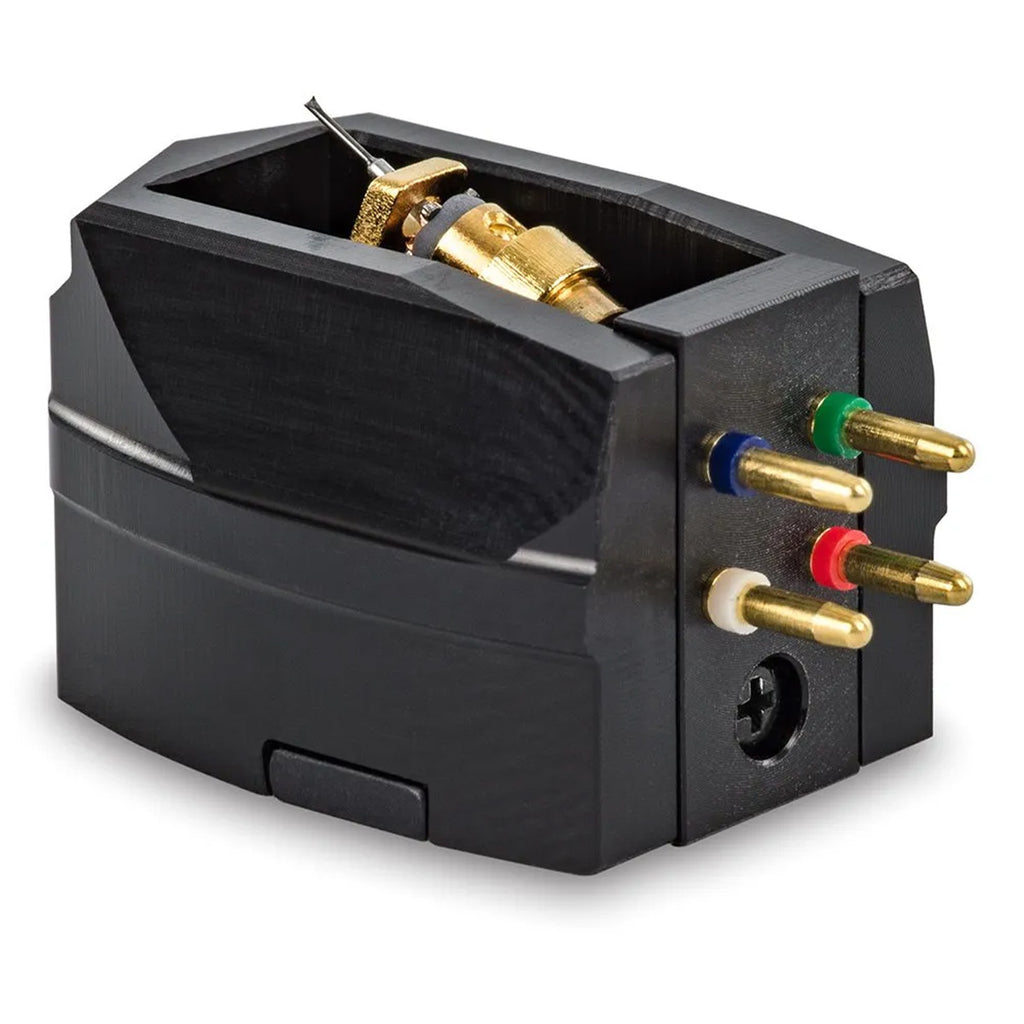

Michell Audio Cusis S Moving Coil Cartridge with Shibata Stylus
$2,299.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The Cusis S offers extended frequency response and incredible detail retrieval whilst retaining a level of musicality that is second to none.
Features
Shibata stylus
Boron cantilever
Extended frequency response
Large aluminium chassis
High density Acetyl body
Samarium-Cobalt Magnet
All of Michell's Cusis cartridges share the same moving coil design. At the heart of the cartridge is a samarium-cobalt magnet which is combined with pure iron to create a very stable magnetic field within the cartridge.
Specially Designed Damper
30μ pure copper wire is used to precision wind the cartridge coils onto an ultra-lightweight armature, which is mounted onto a specially designed damper. The damper has been specifically designed to give the stylus assembly the perfect support, which ensures the stylus tracks the groove precisely.
Vibration Reduction
The construction of the cartridge has been carefully designed to eliminate vibration and resonance. The aluminum chassis is designed to absorb unwanted vibration and give a rigid platform to mount the cartridge parts. The body materials, shapes and exterior patterns have also been designed to further reduce vibration and resonance, resulting in truly unrivalled levels of detail and neutrality.
SPECIFICATIONS
Model: Cusis S
Tracking Force: 2.0g
Loading: 100 Ω
Frequency Response: 20-35000hz
Output Voltage: 0.4mV
Weight: 8.9g
Cantilever Material: Boron
Stylus Profile: Shibata
Channel Balance: <1dB
Channel Separation: 25dB
Compliance: 8x10-6cm/dyne
Tracking Ability: 70µ / 2.0g
Internal Impedance: 4.5 Ω
Type: Moving Coil
Coil Material: Pure 30µ Copper
Run-in Period: > 40 Hours
Body Material: Acetyl
