TAKE CONTROL OF YOUR SOUND

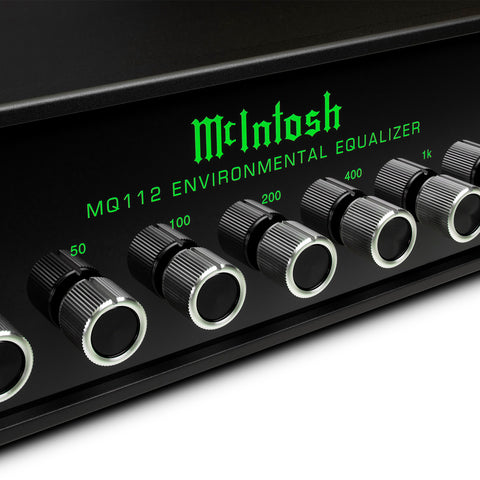

The quest for perfect sounding audio in your house can be frustrating as virtually no space in a home is designed with sound reproduction in mind. This can lead to constantly tinkering with acoustic treatments, changing speaker placement, or even rearranging furniture (which may not go over too well with other members of the household). Instead of wasting time fiddling with your system or room, take control of your sound with the MQ112 Environmental Equalizer and spend more time listening to your music.
In the relentless pursuit of perfect audio, we understand the frustration of adapting your living space for optimal sound reproduction. With the MQ112, you can make changes to the music itself so that room acoustic problems can be overcome. The results can be stunning and can make even a great sounding stereo system sound even better.
FEATURES:
- 8-band analog equalizer
- Adjust the audio signal at 8 key bands in the 25Hz – 10kHz audio frequency range
- ±12dB range of adjustment for each band
- TILT knob for further customization with subtle tonal balance shift of ±6dB
SPECS:
-
- Rated Output Voltage
- 2.5V Unbalanced
5V Balanced
-
- Maximum Output Voltage
- 10V Unbalanced
20V Balanced
-
- Maximum Input Voltage
- 10V Unbalanced
20V Balanced
-
- Voltage Gain (all controls flat)
- Unbalanced: IN to OUT 0dB
Balanced: IN to OUT 0dB
-
- Frequency Response (all controls flat)
- +0, -0.5dB from 20Hz to 20kHz
+0, -1dB from 10Hz to 100kHz
-
- Signal To Noise Ratio
- 115dB (below rated output)
-
- Total Harmonic Distortion
- 0.005% from 20Hz to 20kHz
-
- Input Impedance
- 10k ohms Unbalanced
20k ohms Balanced
-
- Output Impedance
- 500 ohms Unbalanced
1000 ohms Balanced
-
- Equalizer Controls
- ±12dB at 25Hz, 50Hz, 100Hz, 200Hz, 400Hz, 1kHz, 3kHz, and 10kHz
-
- Tilt Control
- ±6dB at 20Hz and 20kHz
650Hz Tilt Axis
-
- Unit Dimensions (W x H x D)
- 17-1/2” (44.5cm) x 3-15/16” (10cm) x 15-11/16” (39.8cm)
-
- Unit Weight
- 15 lbs (6.8kg)
PRODUCT INFORMATION:
Model: MQ112 | Barcode: 842548112971
