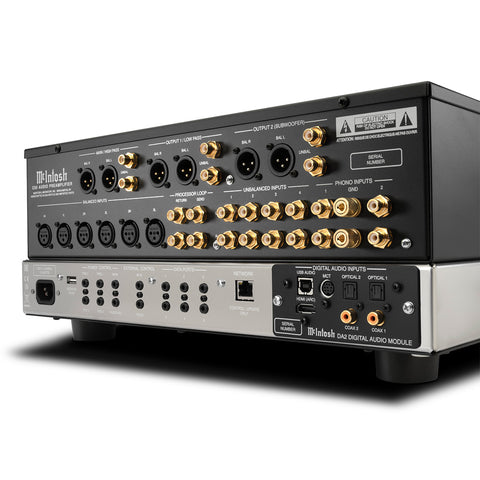

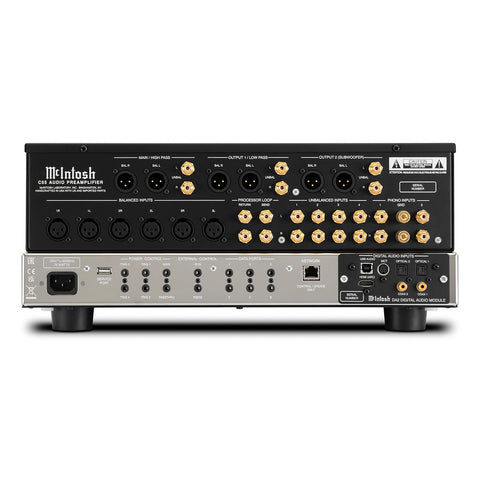

- 16 inputs: 7 analog, 2 phono, 7 digital
- Dedicated Subwoofer output
- Controllable by McIntosh Connect app
- Includes Processor Loop and 8-band analog equalizer
- Supports 24-bit/192kHz and DSD512 files
- Roon Tested

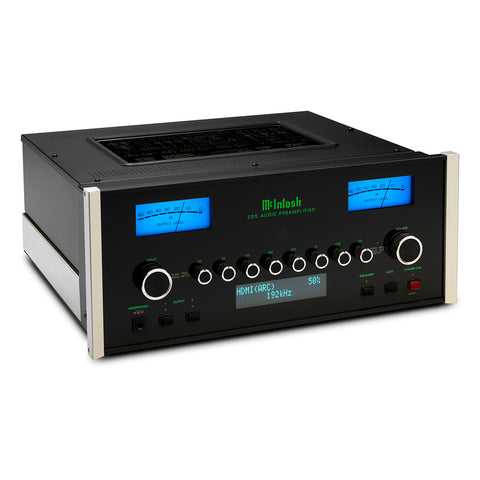

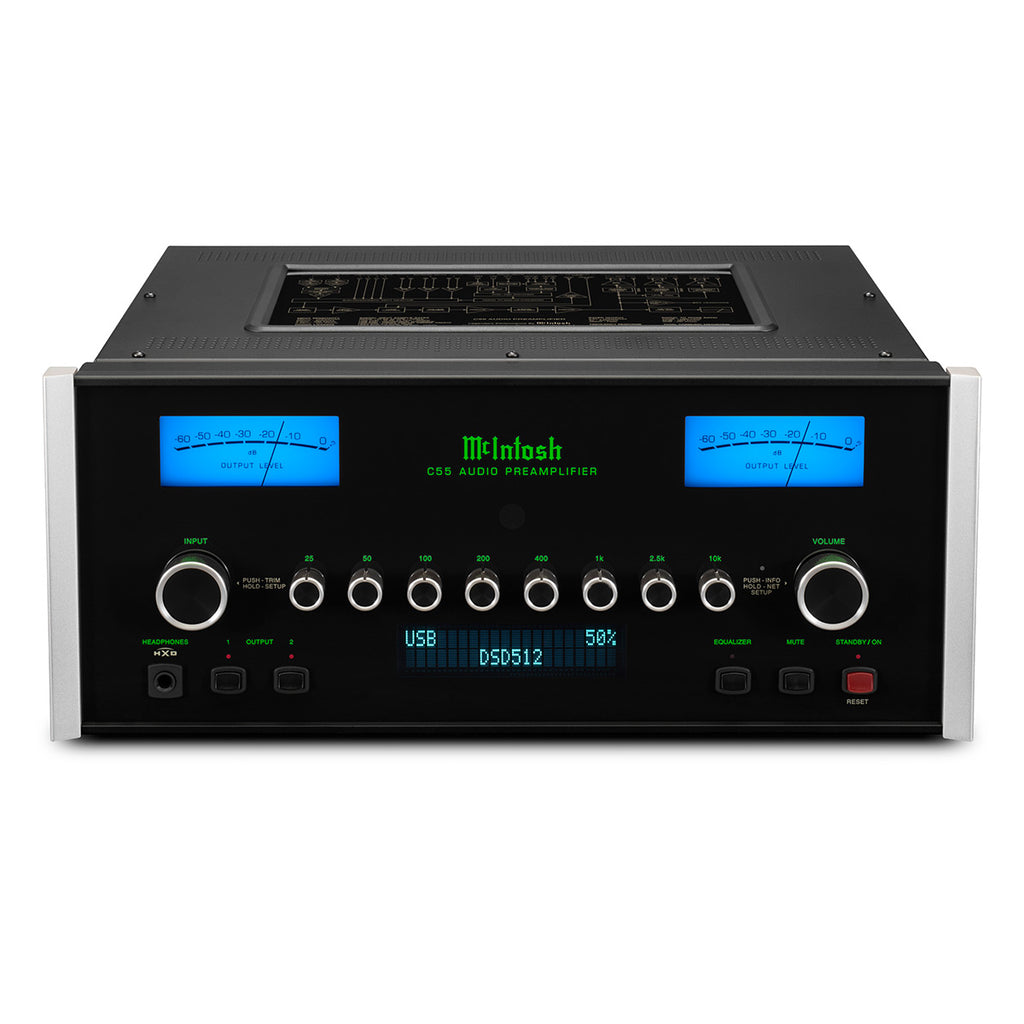

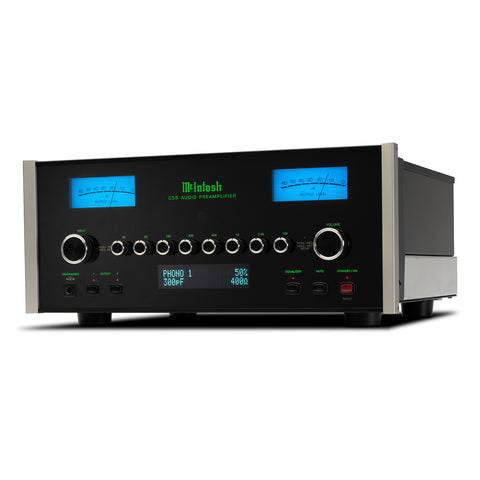

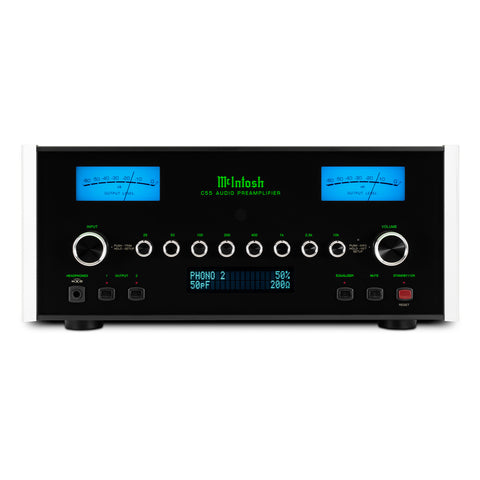

The C55 Preamplifier is a pinnacle of sonic excellence designed for audiophiles, music enthusiasts, and dedicated McIntosh fans alike. As a torchbearer of innovation, it takes the baton from its predecessor, the multi award-winning C53, and propels your home audio experience into new realms of audio nirvana. With precision and craftsmanship, the C55 proudly takes its place as a true industry leader.
ELECTRONIC SPECIFICATIONS
-
- Number of Channels
- 2
-
- Total Harmonic Distortion
- 0.005%
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz
-
- Maximum Volts Out (Balanced / Unbalanced)
- 16V RMS / 8V RMS
-
- Sensitivity High Level (Balanced / Unbalanced)
- 900mV / 450mV
-
- Sensitivity Phono (Moving Coil)
- 0.45mV
-
- Sensitivity Phono (Moving Magnet)
- 4.5mV
-
- Signal To Noise Ratio (High Level)
- 100dB
-
- Signal To Noise Ratio (Moving Coil)
- 80dB
-
- Signal To Noise Ratio (Moving Magnet)
- 82dB
-
- Voltage Gain (High Level)
- 15dB
-
- Voltage Gain (Moving Coil)
- Selectable 40dB, 46dB, 52dB, 58dB, or 64dB
-
- Voltage Gain (Moving Magnet)
- Selectable 40dB, 46dB, 52dB, 58dB, or 64dB
-
- Input Impedance (Balanced / Unbalanced)
- 44K ohm, 22K ohm
GENERAL SPECIFICATIONS
-
- Multi-Chassis or Single
- Single, two-layer
-
- Output Meters
- Yes
-
- Vacuum Tube or Solid State
- Solid State
-
- Power Consumption (On)
- 75 Watts
WEIGHTS & DIMENSIONS
-
- Unit Dimensions (W x H x D)
- 17.5" (44.45cm) x 7.625" (19.4cm) x 16.5" (41.9cm)
-
- Unit Weight
- 28 lbs (12.5 kg)
-
- Shipping Weight
- 43.5 lbs (19.7 kg)
