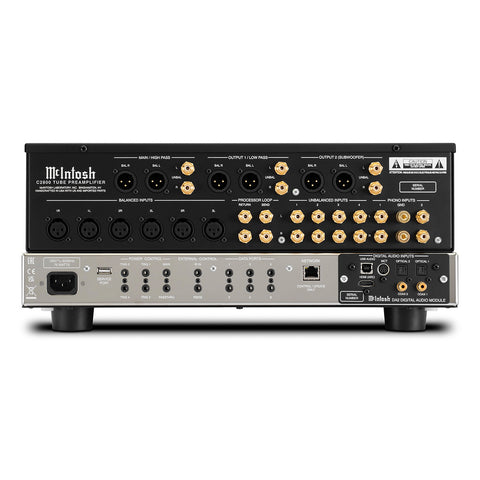

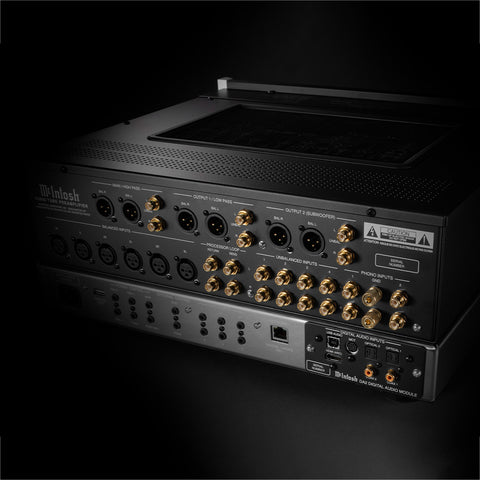

- 16 inputs: 7 analog, 2 phono, 7 digital
- 4 Vacuum Tubes: (3) 12AX7A and (1) 12AT7
- Dedicated Subwoofer output
- Controllable by McIntosh Connect app
- Includes Processor Loop
- Supports 24-bit/192kHz and DSD512 files
- Roon Tested

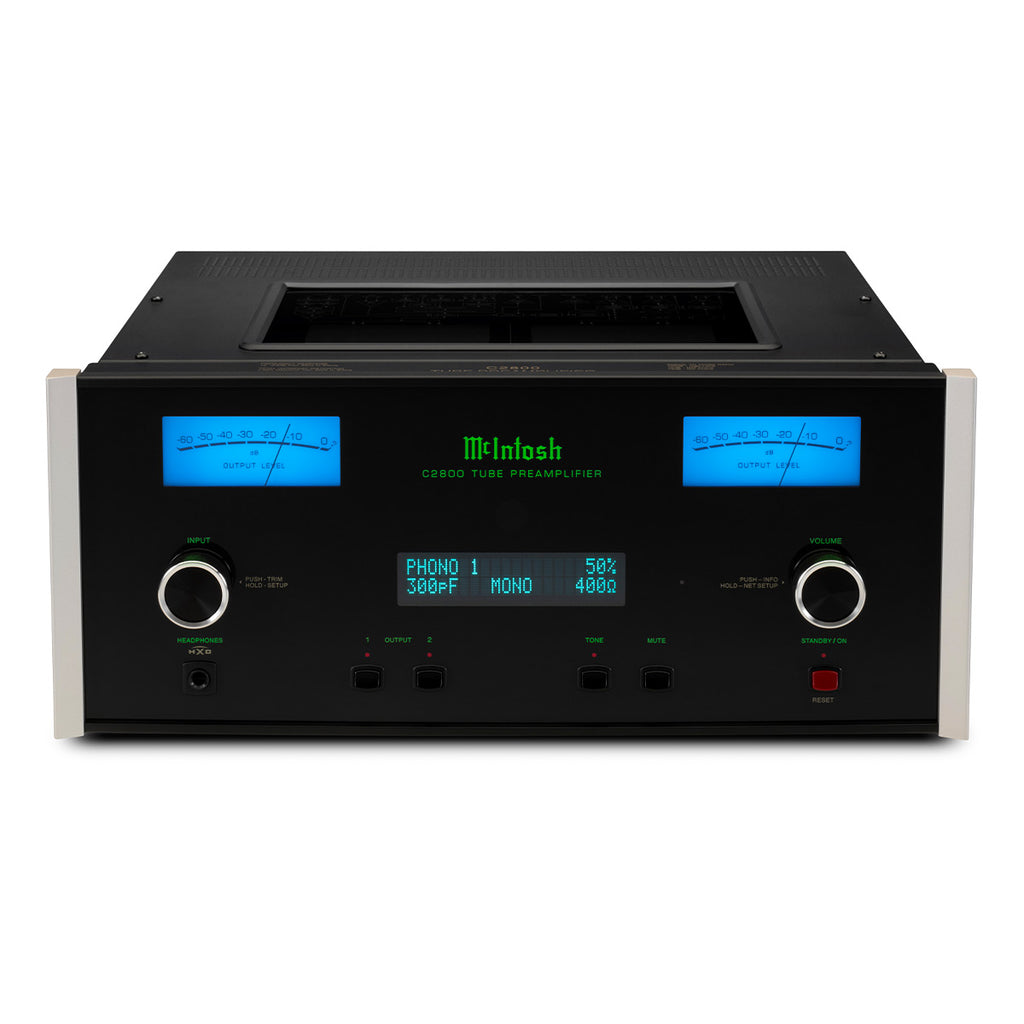

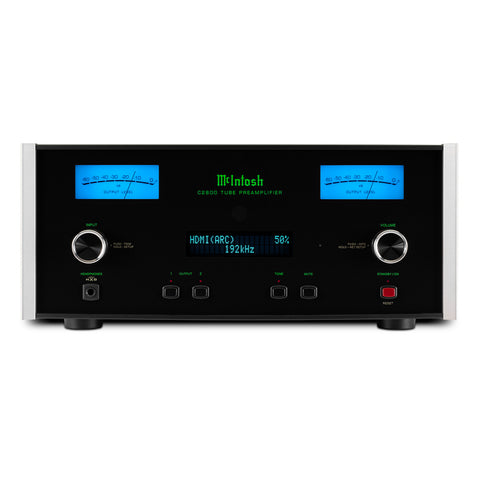

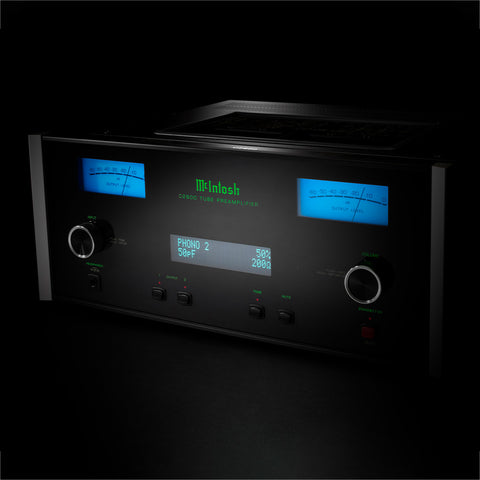

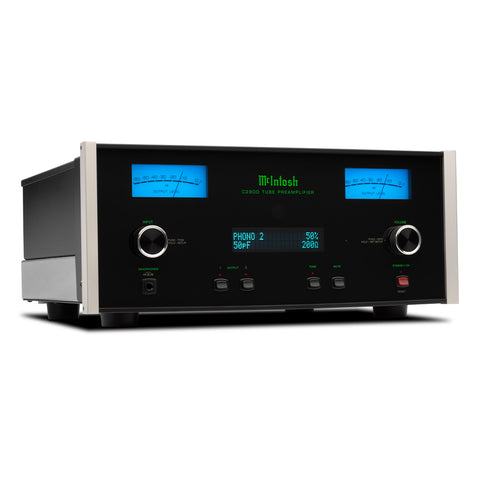

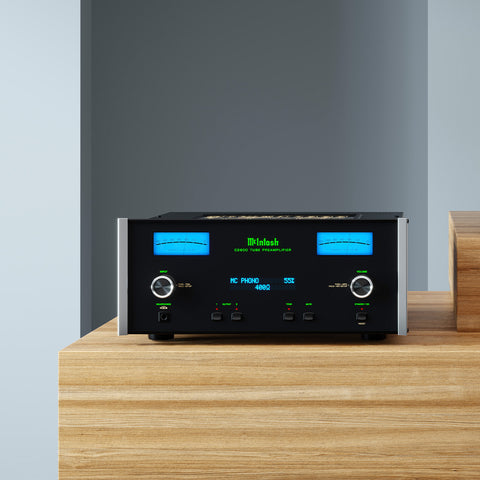

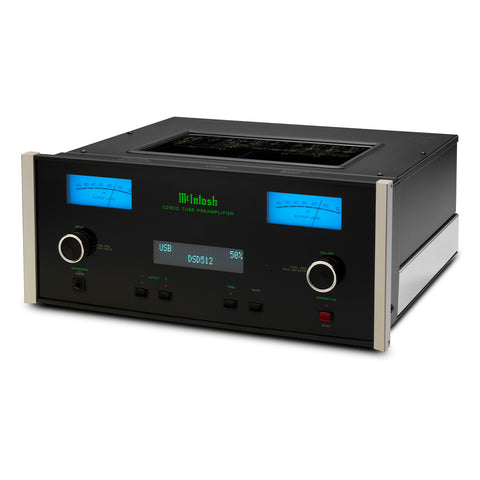

The C2800 Vacuum Tube Preamplifier is a masterpiece of audio passion and engineering precision. Crafted for discerning audiophiles and music enthusiasts alike, performance has been woven into the very fabric of this audio treasure. The C2800 has proudly earned the McIntosh name.

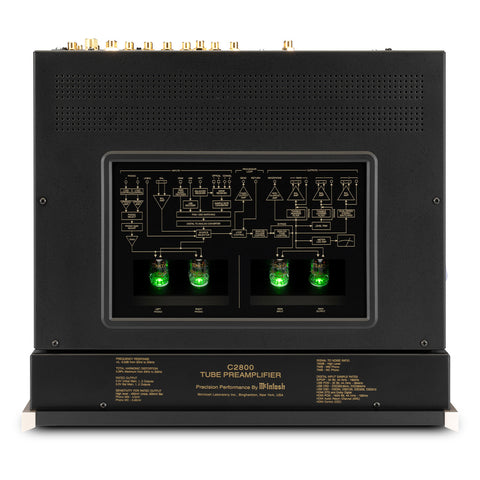

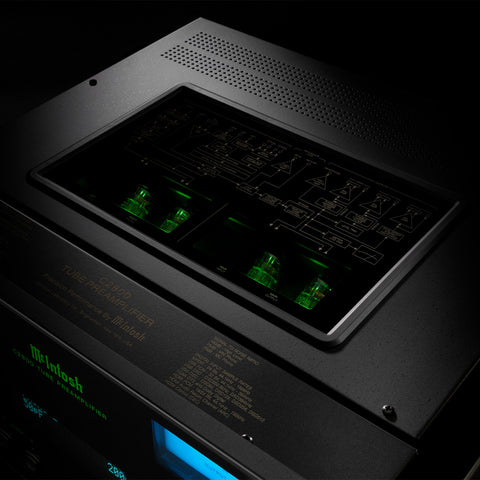

At the heart of the C2800 lies methodically designed vacuum tube circuitry. Leveraging the latest designs to all but eliminate noise and distortion, the C2800 reduces them to minuscule levels. Its four vacuum tubes, or valves, deliver a listening experience that transcends expectations.
ELECTRONIC SPECIFICATIONS
-
- Number of Channels
- 2
-
- Total Harmonic Distortion
- 0.08%
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz
-
- Maximum Volts Out (Balanced / Unbalanced)
- 16V RMS / 8V RMS
-
- Sensitivity High Level (Balanced / Unbalanced)
- 900mV / 450mV
-
- Sensitivity Phono (Moving Coil)
- 0.45mV
-
- Sensitivity Phono (Moving Magnet)
- 4.5mV
-
- Signal To Noise Ratio (High Level)
- 100dB
-
- Signal To Noise Ratio (Moving Coil)
- 75dB
-
- Signal To Noise Ratio (Moving Magnet)
- 75dB
-
- Voltage Gain (High Level)
- 15dB
-
- Voltage Gain (Moving Coil)
- Selectable 40dB, 46dB, 52dB, 58dB, or 64dB
-
- Voltage Gain (Moving Magnet)
- Selectable 40dB, 46dB, 52dB, 58dB, or 64dB
-
- Input Impedance (Balanced / Unbalanced)
- 44K ohm, 22K ohm
GENERAL SPECIFICATIONS
-
- Multi-Chassis or Single
- Single, two layer
-
- Output Meters
- Yes
-
- Vacuum Tube or Solid State
- Vacuum Tube
(3) 12AX7A and (1) 12AT7
-
- Power Consumption (On)
- 75 Watts
WEIGHTS & DIMENSIONS
-
- Unit Dimensions (W x H x D)
- 17.5" (44.45cm) x 7.625" (19.4cm) x 16.5" (41.9cm)
-
- Unit Weight
- 28 lbs (12.5kg)
-
- Shipping Weight
- 43.5 lbs (19.7kg)
