The Matrix Audio TT-1 Digital Audio Transport is a versatile mid-range hi-fi digital source designed to elevate modern streaming and file-based playback systems. Built on the same advanced streaming hardware as Matrix Audio’s M Series, it combines a powerful processing core with an enhanced display and the intuitive MA Player OS and MA Remote App for seamless control on iOS and Android. The TT-1 supports local, NAS, and cloud music playback, with an internal NVMe SSD slot powered by an ultra-low-noise supply for fast, silent storage. Its shareable storage can also function as a NAS for other streamers on the network. Dual femtosecond clocks provide precise timing for both 44.1kHz and 48kHz sampling families, ensuring low-jitter digital output. Comprehensive connectivity includes optical, coaxial, AES/EBU, IIS-LVDS, and USB DAC outputs, plus Wi-Fi 6 and Gigabit Ethernet. Smart wake-up, trigger control, and optional linear power supply support make the TT-1 a refined, future-ready digital transport for high-performance audio systems.
Matrix Audio TT-1 Digital Audio Transport (Silver)
- $1,999.00
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The Matrix Audio TT-1 Digital Audio Transport is a versatile mid-range hi-fi digital source designed to elevate modern streaming and file-based playback systems. Built on the same advanced streaming hardware as Matrix Audio’s M Series, it combines a powerful processing core with an enhanced display and the intuitive MA Player OS and MA Remote App for seamless control on iOS and Android. The TT-1 supports local, NAS, and cloud music playback, with an internal NVMe SSD slot powered by an ultra-low-noise supply for fast, silent storage. Its shareable storage can also function as a NAS for other streamers on the network. Dual femtosecond clocks provide precise timing for both 44.1kHz and 48kHz sampling families, ensuring low-jitter digital output. Comprehensive connectivity includes optical, coaxial, AES/EBU, IIS-LVDS, and USB DAC outputs, plus Wi-Fi 6 and Gigabit Ethernet. Smart wake-up, trigger control, and optional linear power supply support make the TT-1 a refined, future-ready digital transport for high-performance audio systems.
- Enjoy Local & Cloud Music: Mount your NAS drive to the device, allowing you to create a music library directly from your NAS. If your music is stored in the cloud, such as Baidu Netdisk, it can also be mounted directly on the device.
- SSD Storage Fast And Quiet: The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer.
- Shareable Internal Storage: With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.
- Smart Wake Up & Trigger Control. Whether playing local music or online streaming audio, the device can be automatically woken up. And the back-end DAC or amplifier can be started through the trigger connection, which is automatic and convenient without any manual operation.
- Dual Femtosecond Clock. Equipped with two ultra-low phase noise femtosecond clocks, each dedicated to serving as the clock reference for 44.1kHz and 48kHz sampling rates and their multiples. Powered by independent low-noise linear regulators, and with intelligent control through FPGA, it automatically handles frequency division and switching operations. This design lays a solid foundation for low-jitter digital audio output.

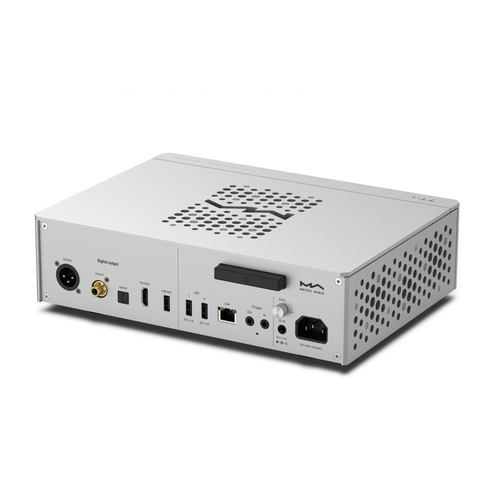

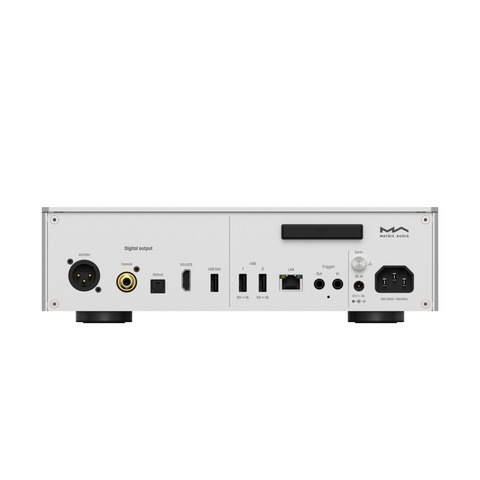

- Multiple Interfaces. Optical, coaxial, AES/EBU and IIS-LVDS output ports are available, which can easily connect to various digital audio devices such as DACs and amplifiers to meet your diverse audio connection needs. If you connect it to an active speaker with digital input, you can also enable the digital volume function, no need to add an additional speaker controller, and the volume can be adjusted easily.
- Dedicated Interface for Lossless Audio. The TT-1 features an audio-specific USB DAC interface, meticulously optimized to reduce transmission noise. With precisely calibrated transmission impedance, it ensures audio signals are transmitted without any loss at the physical transmission layer, delivering every detail of sound with exceptional fidelity.
- Flexible Connection Options. If wired connection is inconvenient for you, the TT-1’s Wi-Fi 6 connectivity offers a simple and convenient solution. To ensure optimal sound quality and stable performance during high resolution audio streaming, it is recommended to give priority to use a wired connection.
- Option For Linear Power. The TT-1 is specially designed with an DC power input to unlock its full performance potential with adding a linear power supply. When both external power and AC power are connected, the system prioritizes the external power supply and disconnects the AC power, retaining only the ground connection. Additionally, the product is equipped with a power filter and multiple low-noise LDOs to power each circuit unit independently, ensuring pure and stable power delivery in every aspect.
- Digital Output
- COAXIAL, OPTICAL & AES/EBU
- PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- DSD 2.8MHz (DoP)
- IIS LVDSPCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHzDSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz
- USB DAC: Depends on the specifications supported by the connected USB DAC device. Not higher than PCM 32Bit/768kHz and DSD 24.58MHz.The USB DAC port provides a maximum of 5V/1A low-noise power supply.
- Network: LAN10/100/1000 MbpsWi-Fi2.4 GHz / 5 GHz
- USB
- USB 3.0 * 2The USB port provides a maximum power of 5V/1A.The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.
- Trigger
- Trigger in: DC 6-12V<10mATrigger outDC 12V/50mA MAX
- MA Player
- Controller appMA Remote AppLocal Playback
- Format Supported: MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE、ISO
- PCM 16-24Bit/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
- DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz
- Roon Ready: PCM 16-24 Bit /44.1 kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
- DSD 2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz
- QQMusic The audio specs depend on the service provider
- AirPlay 2 The audio specs depend on the service provider
- DLNA/UPnP The audio specs depend on the service provider
- TIDAL Connect The audio specs depend on the service provider
- Spotify Connect The audio specs depend on the service provider
- Qobuz Connect The audio specs depend on the service provider
- vTuner The audio specs depend on the service provider
- Radio Paradise The audio specs depend on the service provider
- Storage Extension: M.2 2280 2260 2242 NVMe PCIe SSD slot *1The maximum power specification provided by the expansion slot is DC 3.3V/3A.
- Power Specs
- AC Input
- Wide voltage switching power supply
- Power Voltage: AC 100V-240V 50/60Hz
- Power Consumption: < 35W
- DC Input
- External power voltage: DC 12V ±10%
- External power wattage: Larger than 35W
- Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)
- Weight & Size
- Weight 2.76kg (6.08 pounds)
- Size Width: 280 mm (11.02 inches)
- Depth: 210 mm (8.27 inches)
- Height: 82 mm (3.23 inches)
- Accessories
- Power cable *1Printed material *1
