AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system. AMP 20 is rated at 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, and is built on Marantz exclusive HDAM and high-efficiency low-distortion Class D amplification.

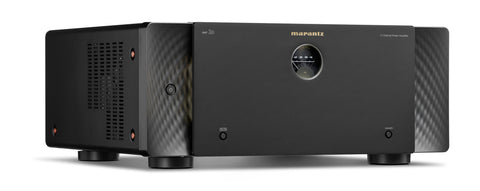

Marantz AMP 20 12 Channel Reference-Level Power Amplifier
$6,000.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system. AMP 20 is rated at 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, and is built on Marantz exclusive HDAM and high-efficiency low-distortion Class D amplification.
FEATURES
Ultimate Performance: AMP 20’s custom-developed Class D amplification and refined HDAM-SA2 technology create the most incredible theatrical experience possible in your home. It cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance. Separate power supplies for line level and high-power stages ensure total signal purity from input to output.
Sound Master Tuned: Our Marantz Sound Master meticulously tuned AMP 20 for amazing performance with careful parts selection to create outstanding sound in your home. Making sound the Marantz way is a seamless fusion of art and science, practiced by creators who balance and select components individually for their sonic qualities—they are the Sound Masters.
Timeless Style: Excellence is heard and seen. AMP 20 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance. AMP 20 is elegantly constructed using steel and aluminum casework while the subtle texture molded into the front panel is lit by the dimmable soft glow of sidelights on either side of our iconic porthole design.
Endlessly Customizable: Comprehensive connectivity options ensure AMP 20 will always deliver the perfect results to suit your home theater. Marantz has provided a rich assortment of connections and configuration options to make AMP 20 your ideal amplifier. While each of the 12 channels can operate independently, channel pairs can also be switched into bi-amp mode for isolating frequency bands from each other or switched into BTL mode to produce up to 400 watts per channel into 8 ohms for your highest output demands.
Effortlessly Powerful: AMP 20 gives you 12 channels of commanding power in a single enclosure, each rated at 200-watt-per-channel to perform at extraordinarily high levels with no loss in fidelity. Custom Class D amplification is highly efficient, and strategically incorporated whisper-quiet fans keep the unit running optimally even under highly dynamic conditions.
Complete Compatibility: Gold-plated RCA and high-grade XLR connectors accept audio input from most surround processors. Custom Marantz SPKT-1+ binding posts are ergonomic and provide the best possible coupling to loudspeaker cables. Low-distortion, high-power output provides ample drive to virtually any loudspeaker configuration to maximize performance.
TECHNICAL SPECS
Main Amplifier In: Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
Speaker Terminal: SPKT-1+
Number of Speaker Terminals: 12
Bi-Amp Drive / BTL Drive: Yes / Yes
Level Meter: Yes
Chassis: Copper Plated
RS232 Control: Yes
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Input / Output: 1 / 1
Number of Power Amps: 12
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL: 200W / 400W
