DESCRIPTION
This bundle includes (1) Marantz AV 20 13.4 Channel Balanced AV Preamplifier and (1) Marantz AMP 10 Reference 16 Channel Amplifier With 200W and Custom HDAM
Experience exceptional sound and cinematic precision with the Marantz AMP 10 and AV 20—a refined combination built for immersive, high-performance home theater. With elite 16-channel amplification and advanced AV processing, every detail is delivered with depth, clarity, and effortless control.

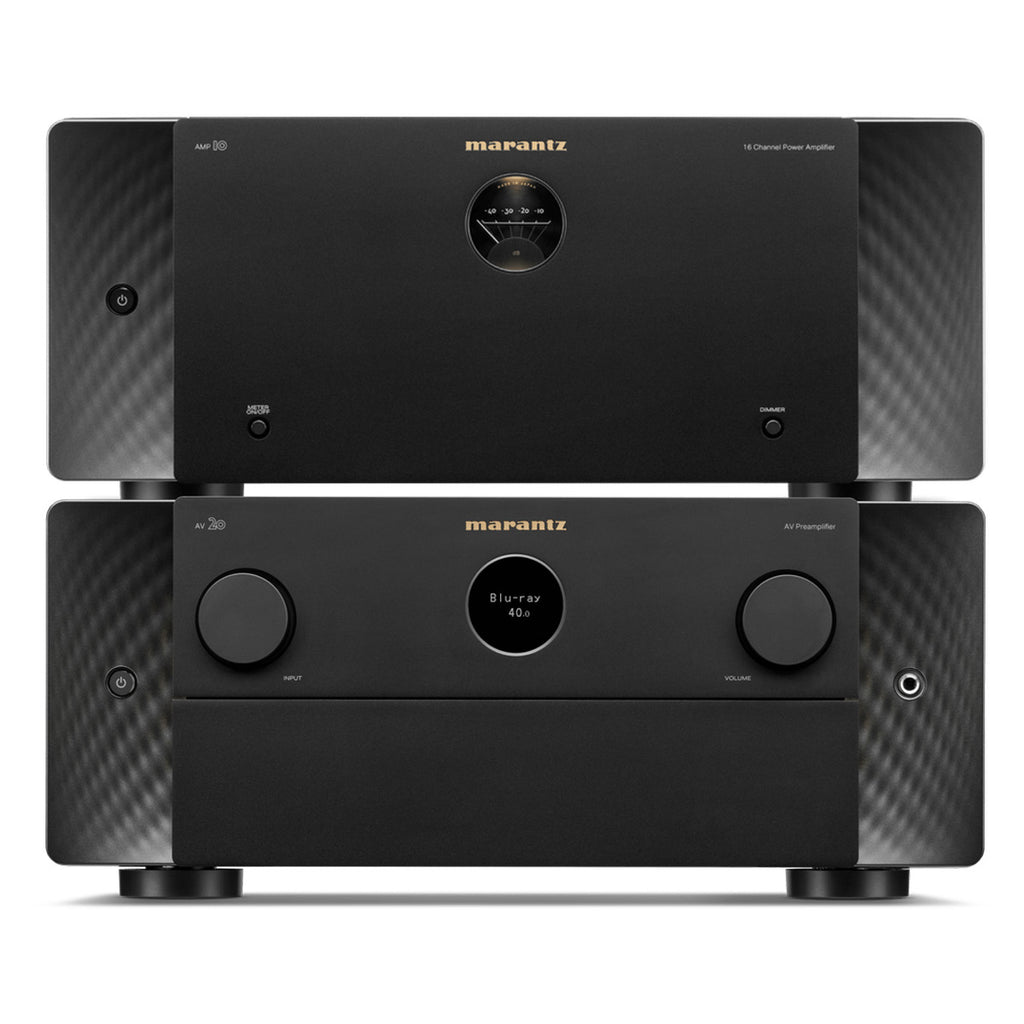

Marantz AMP 10 and AV 20 Home Theater System Bundle
- $12,500.00
-
Regular price
$14,000.00
Save $1,500.00 (10%)
- FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
DESCRIPTION
This bundle includes (1) Marantz AV 20 13.4 Channel Balanced AV Preamplifier and (1) Marantz AMP 10 Reference 16 Channel Amplifier With 200W and Custom HDAM
Experience exceptional sound and cinematic precision with the Marantz AMP 10 and AV 20—a refined combination built for immersive, high-performance home theater. With elite 16-channel amplification and advanced AV processing, every detail is delivered with depth, clarity, and effortless control.
FEATURES
AV 20:
- Reference-Quality Performance: AV 20 is engineered to create the most memorable home theater experiences possible. Powerful Analog Devices advanced 32-bit processing decodes all the latest surround formats with the lowest possible distortion and the utmost accuracy. Enjoy dynamic and precise sound thanks to nine state-of-the-art 32-bit high precision 2 channel DACs with dedicated jitter reduction. The discrete HDAM-SA3 preamplifier stage feeds 13.4 channels of output via both RCA and XLR sockets to provide the best possible signal to a partnering amplifier.
- Sound Master Tuned: Our Marantz Sound Master meticulously tuned AV 20 for amazing performance with careful parts selection to create outstanding sound in your home. Making sound the Marantz way is a seamless fusion of art and science, practiced by creators who balance and select components individually for their sonic qualities — they are the Sound Masters.
- System Matching: Make sure you get the best possible performance from your AV 20 by combining it with other Marantz products. Pairing the AV 20 with the Marantz AMP 20 power amplifier gives you 12 channels of amplification and a complete Sound Master Tuned experience.

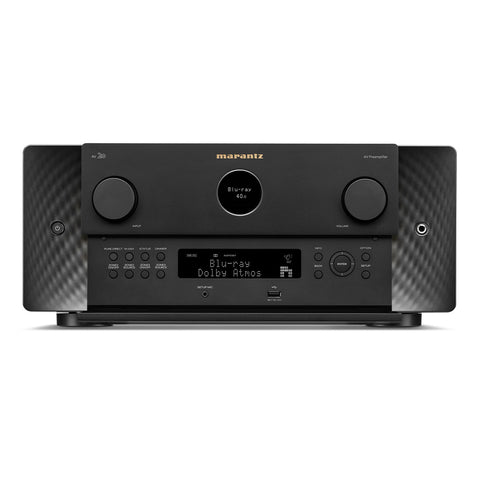

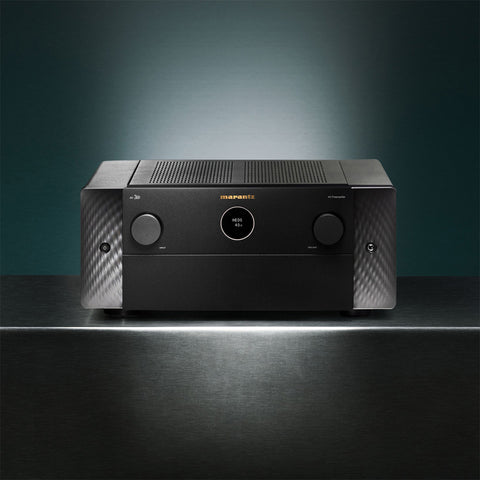

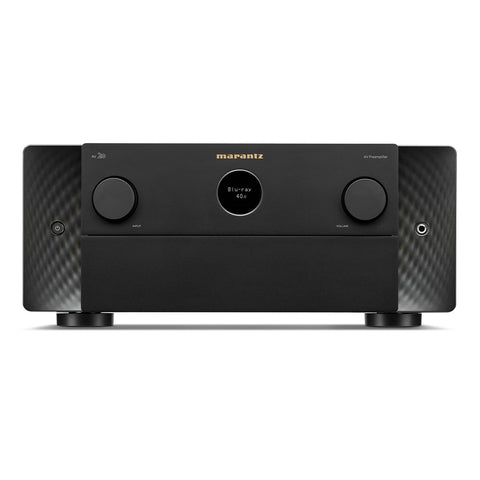

- Timeless Style: Excellence is heard and seen. Timelessly elegant, AV 20 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance. AV 20 is constructed using steel and aluminum casework and knobs while the subtle texture molded into the front panel is lit by the dimmable soft glow of sidelights on either side of the control surface, which features the iconic porthole design.
- Endlessly Customizable: Comprehensive connectivity options and extensive optimization ability ensures AV 20 will always deliver the perfect results to suit your home theater. Marantz has provided 13.4 channels of configurable speaker outputs plus included Audyssey MultEQ XT32, so even challenging acoustic spaces can become ideal listening environments. Optional Dirac Live Room Correction, complete with available Bass Control and Active Room Treatment upgrades, allows for fully optimized sound in even the most challenging acoustic conditions.
- Effortless Control: While AV 20 may be comprehensively featured, everyday use and setup is not complicated. An included quick-start guide and extensive on-screen setup make configuration easy. The metal backlit remote control provides access to the most often used features while advanced HDMI connectivity allows you to use a TV remote for power and volume. The AV 20 also responds to voice commands from Siri.
- Complete Compatibility: Seven HDMI inputs, plus digital, analog and phono inputs ensure connectivity to virtually any other components you may have. All HDMI inputs are 8K compatible, allowing any source to be sent at 8K or upscaled to the same resolution. Balanced RCA outputs, including provision for four individual subwoofers, are complemented by Zone Two and Zone Three preouts and two additional HDMI outputs, supporting extensive multi-room functionality.

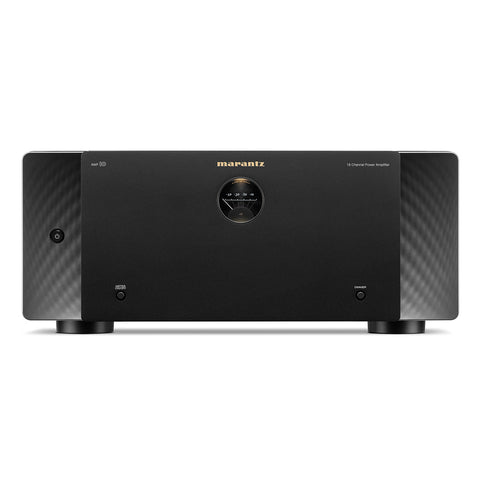

AMP 10:
- Peerless Performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
- Technology Leader: AMP 10 is engineered using best-in-class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.

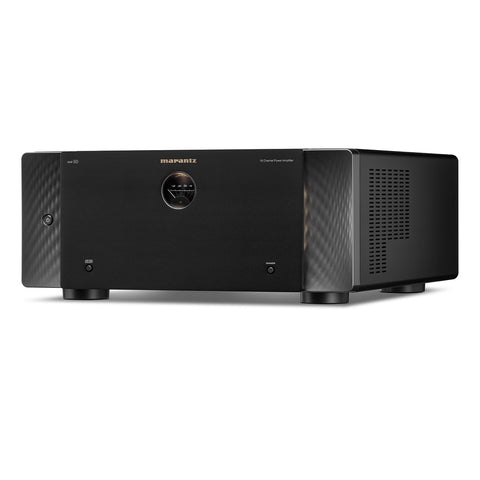

- Exquisite Design: A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.
- Ultimate Performance: We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.
- Style: Excellence is heard and seen. AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
- Customizability: Thoughtfully curated connectivity options and selectable amplifier modes let you make AMP 10 your own.
- Powerful: AMP 10 gives you 16 channels of commanding power, deftly nuanced.
TECHNICAL SPECS
AMP 10:
- Multi-Room / CI: IP Control / RS232 Control / Web Control / App Control: No / Yes / No / No
- IR Flasher In: Yes
- Marantz Remote Bus: Yes
- DC Trigger Input/ Output: 1 / 1
- Front Display: Level Meter
- Firmware Update by Network / USB / RS232C: No / No / No
- Auto Power off: Yes

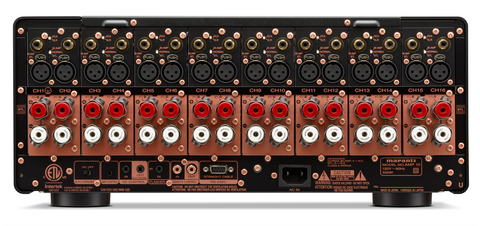

- Inputs/Outputs:
- Main Amplifier in: Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
- Speaker Terminal: SPKT-1+
- Number of Speaker Terminals: 16
- Bi-Amp Drive /BTL Drive: Yes / Yes
- Level Meter: Yes
- Chasiss: Copper Plated
- Number of poweramps: 16
- Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL: 200W / 400W
- Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal: 400W
- Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal: 200W
- 70% Guarantee (Normal/Bi-Amp/BTL): Yes
- 100% Guarantee (Normal/Bi-Amp): Yes
- Metal Front Panel: Yes
- Pre-Programmed / Learnable / LCD Display: No / No / No
- Power Consumption in W: 500
- Power Consumption No-Sound in W: 140W
- Standby Consumption in W: 0.2
- Maximum Dimensions: 17.4 x 19.2 x 7.4
- Weight in lbs.: 43.7
AV 20:
- HDMI:
- Total HDMI Inputs: 7 (rear)
- HDCP 2.3 Support: Yes
- HDMI Outputs: Main / Zone 2 / 1
- HDMI Upscaling: 1080p/4K to 8K
- GUI Overlay on HDMI: Yes
- HDMI 2.1 (8K/60Hz AB / 4K/120Hz AB): Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-Through (In/Out): 7 / 2 (up to 40 Gbps)
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
- Enhanced ARC: Yes
- ALLM (Auto Low Latency Mode) Pass-Through for Gaming: Yes
- Variable Refresh Rate / Quick Frame Transport: Yes / Yes
- HDMI Pass-Through in Standby Mode: Yes
- DSD Audio Capability: Yes
- Auto LipSync: Yes
- Multi-Room:
- HEOS Multi-Room Integrated: Yes
- HEOS Link Compatibility (IR / IP): Yes / Yes
- Multi-Room Zones: 3
- Zone Audio Source (HDMI / Optical, Coax / Network, USB / Analogue): Yes (2 ch) / Yes (2 ch) / Yes / Yes
- Zone Audio Output (Speaker / Pre-Out): No / Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
- IR Flasher In / Marantz Remote Bus: Yes / Yes
- DC Trigger Output: 3
- HDMI Diagnostics: Yes
- Multichannel Surround Technologies:
- DTS: DTS-HD, DTS:X, DTS:X Pro, DTS Virtual:X, DTS Neural:X (13ch)
- Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- IMAX: IMAX Enhanced
- Auro 3D / 360 Reality Audio / MPEG-H: Yes / Yes / Yes
- Multichannel Stereo: Yes
- Max. Number of Processing (Pre-Amp) Channels: 13.4
- Sound Enhancements:

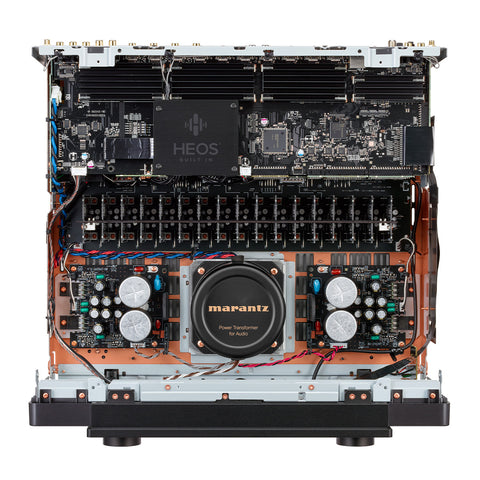

- Copper-Plated Chassis / Toroidal Power Transformer: Yes / Yes
- Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM): Yes / Yes (SA3, monolithic)
- Pure Direct / Gold-Plated RCA Terminals: Yes / Yes
- Clock Jitter Reducer: Yes
- Dirac Live Upgradability: Yes
- Compressed Audio Enhancer (MDAX2): Yes
- Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC: Yes / Yes / Yes
- Audyssey MultEQ XT32: Yes
- Network & Streaming:
- Wi-Fi / Bluetooth / Ethernet: Yes / Yes / Yes
- HEOS Multi-Room and Streaming: Yes
- Bluetooth Retransmit for Headphones: Yes
- Apple HomePod Compatibility: Yes
- Lossy Formats: MP3, WMA, AAC
- Lossless Formats: FLAC, FLAC HD 192/24, ALAC, ALAC 192/24, WAV, WAV 192/24
- DSD Audio Streaming: Yes (2.8/5.6 MHz)
- Gapless Playback: FLAC, ALAC, WAV, DSD
- TuneIn / AirPlay 2 / Spotify: Yes / Yes / Yes
- Roon-Ready: Yes
- Other Streaming Services: Amazon Music, TIDAL, Deezer, Napster, SoundCloud
- Remote App Compatibility (Smartphones): Marantz AVR Remote
- Remote App Compatibility (Tablets): Android / iOS / Amazon Kindle

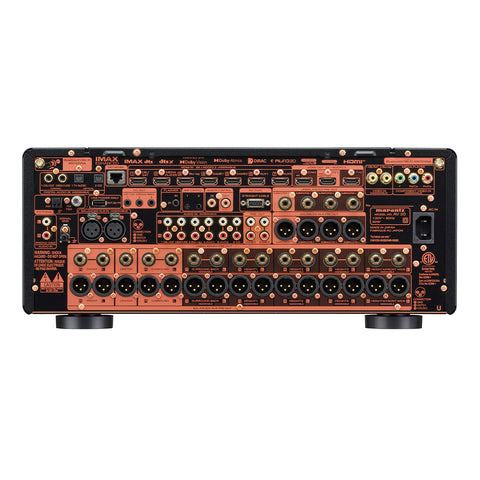

- Inputs / Outputs:
- Video Composite In / Out: 2 / 0
- Component In / Out: 1 / 0
- HDMI In / Out: 7 / 3
- Multi-Room Video Out (Video / HDMI): No / Yes
- Audio Analogue In: 6 (1 × XLR)
- Phono (MM) In: Yes
- Digital In (Optical / Coaxial): 2 / 2
- Multi-Room Out (Analog / Digital): 2 / 0
- Multichannel Pre-Amp Out: Yes (15.4 RCA, 15.4 XLR)
- Subwoofer Out: 4 (independent) RCA, XLR
- Other Speaker: A / B Assignable Pre-Out
- Bi-Amp Drive: Assignable Pre-Out
- Front USB Input / USB Audio: Yes / Yes
- USB Power Supply (Rear): Yes
- AM/FM Tuner: Yes
- General:
- Metal Front Panel: Yes
- System Remote Control: RC051SR
- Backlit: Yes
- Power Consumption: 90 W
- Standby Consumption: 0.2 W
- CEC Standby Consumption: 0.5 W
- Network Standby Consumption: <2.0 W
- Maximum Dimensions
- Antenna, Horizontal (W × D × H): 17.4 × 18.0 × 7.5 in
- Antenna, Vertical (W × D × H): 17.4 × 18.0 × 10.0 in
- Without Antenna (W × D × H): 17.4 × 17.2 × 7.5 in
- Weight: 33.1 lbs
- Others:
- Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
- Dirac Live: Upgradeable
- Front Display: 2-Line FLD, Port Hole OLED
- Graphic User Interface: Modern HD GUI
- GUI Languages: 3
- Setup Assistant / Smart Select: Yes / Yes
- Firmware Update by Network / USB: Yes / Yes
- Variable Crossover / Optimized Bass Redirection / Bass Sync: Yes / Yes / Yes
- Auto Power Off / Sleep Timer: Yes / Yes
PRODUCT INFORMATION:
Model: AMP10+AV20 | Barcode: 880569357650
