DESCRIPTION

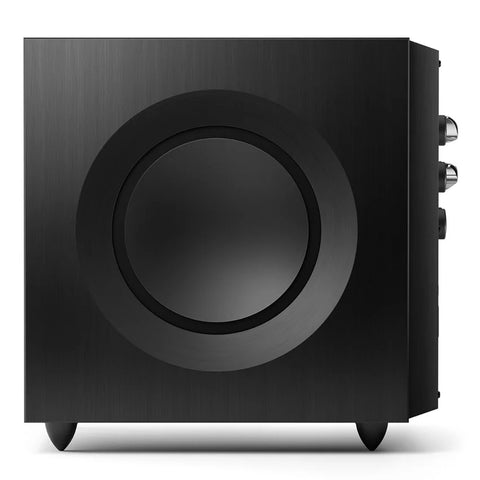

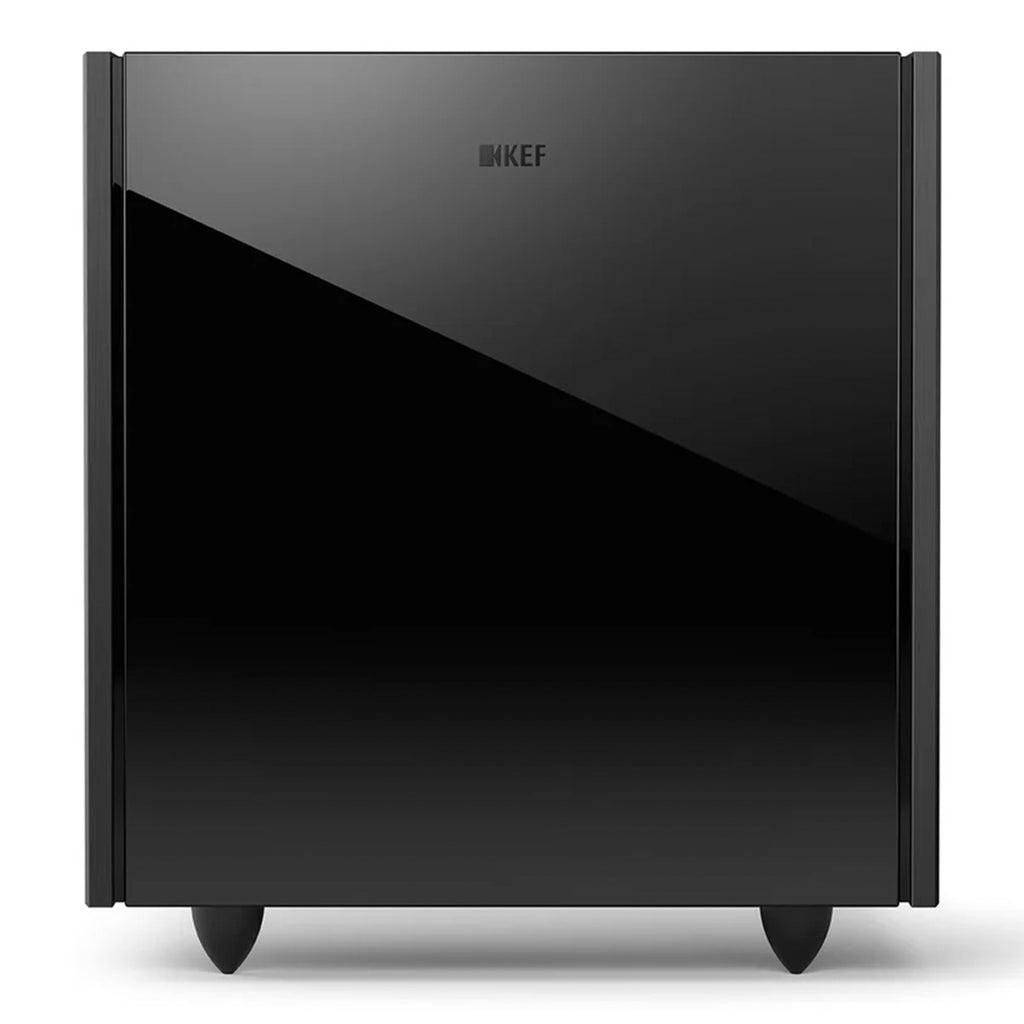

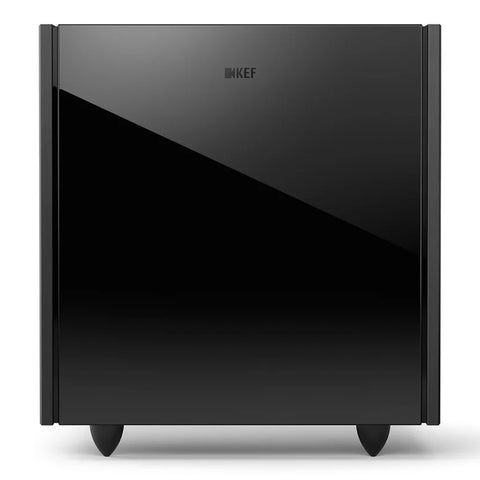

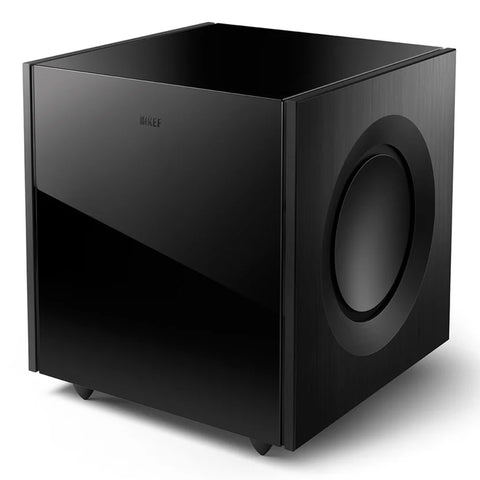

Twin Driver 'Force-Cancelling' Subwoofer
Delivering exceptional bass precision and control with zero distortion, Reference 8b is a truly extraordinary subwoofer. For power with accuracy the Reference 8b sub has two 500W Class D amplifiers, each driving a 228mm (9 inch) long-throw, ultra-low distortion driver. These are connected back-to-back in a heavily braced, acoustically inert cabinet. The result is low distortion bass with effortless body and weight.
Features
Two 9” Long-Throw, Force-Cancelling Bass Drivers
Powerful 500W Class D Amplifier
Sealed Cabinet Design Ensures Tight, Accurate Bass
Advanced DSP Optimizes Performance
SPECIFICATIONS

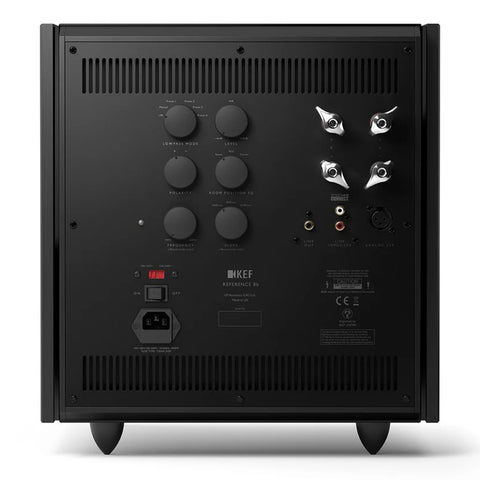

Inputs
RCA phono sockets
Analog XLR socket
Speaker level inputs
Frequency Range (Free Field): 18Hz (-6dB)
Frequency Response: 24Hz at 90dB output in free-space mode (±3dB)
Net Internal Volume: 23L
Maximum Output: 110dB (peak sound pressure level at 1m 50Hz)
Amplifier Type: 2 x 500 W Class D with switched mode power supply and DSP based control section
Drive Units: LF 2 x 225 mm (9in.)
Power Requirements: 100V - 120V / 220V - 240V ~50/60Hz
Power Consumption: 1000W
Link Out: RCA phono socket
Variable Low Pass Filter
Variable frequency: 40Hz to 160Hz
Variable slope: 12dB/oct, 18dB/oct, 24dB/oct
LFE mode: 350Hz, 18dB/oct
Weight: 34kg (75lbs.)
Dimensions (W x H x D): 14.4 x 15.7 x 16.8”
