DESCRIPTION
THX® Certified Ultra Speaker with MAT™

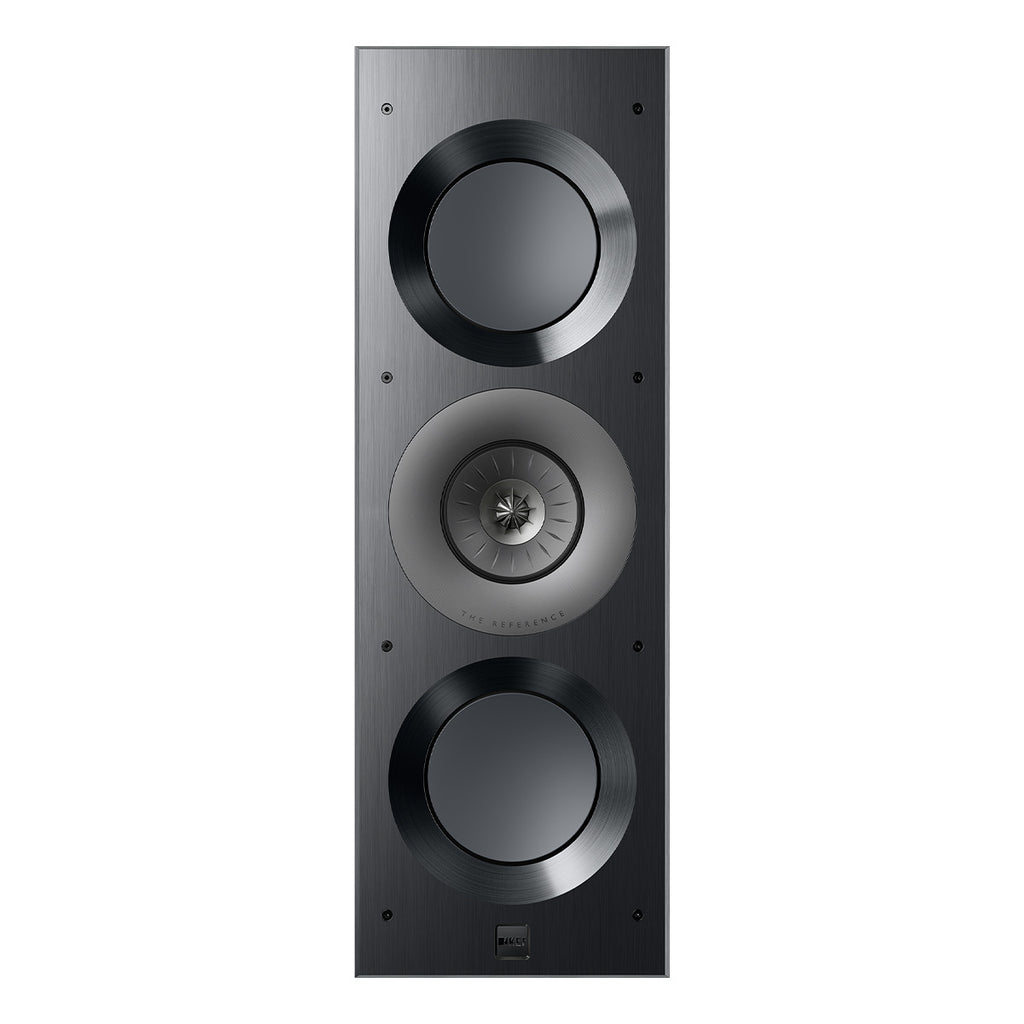

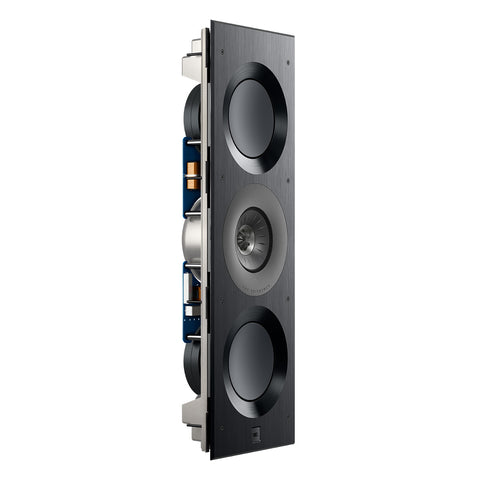

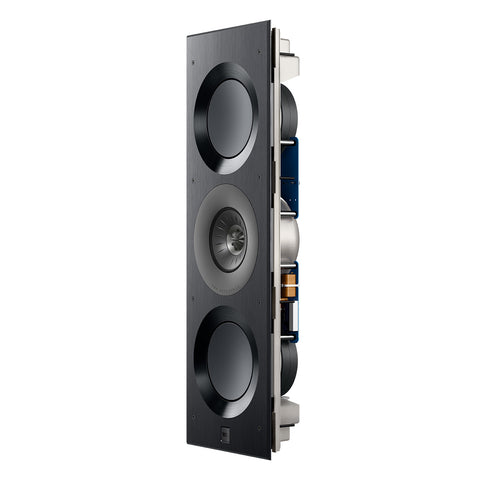

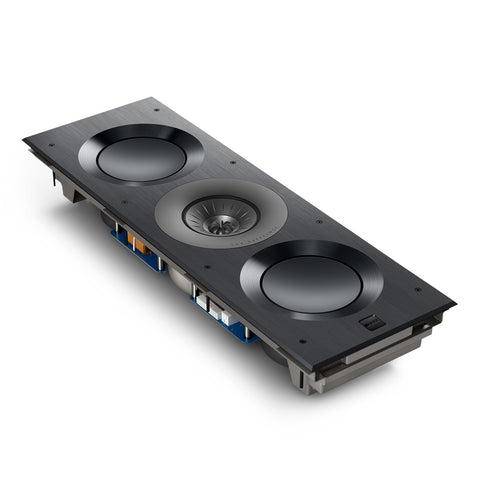

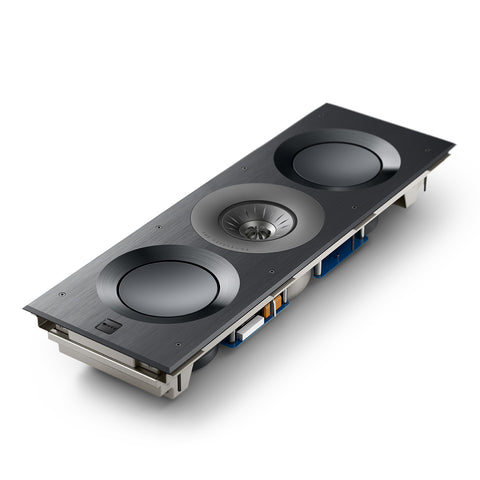

The Ci3160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximize its full potential and proudly carries the THX Certified Ultra designation. Together with two 6.5” hybrid aluminum bass drivers, it delivers the most dynamic audio experience for home theatres.
Features
12th Generation Uni-Q driver array
Dual 6.5” Bass Drivers with Hybrid Aluminum Cones
Aluminum baffle minimizes vibration and distortion
Metamaterial Absorption Technology (MAT)
Flush-Mount Design
THX Ultra Certified
Uni-Q®
Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.
THX Certified
Ci3160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.
True Bass Definition
Two hybrid aluminum bass drivers for tight, deep, controlled bass.
Total Attention to Detail
The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best.
Hide Your Speakers, Not Your Sound
The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment.
SPECIFICATIONS
Series: R Series
Nominal Impedance: 4Ω
Sensitivity (2.83V/1m): 89dB
Frequency Response (±6 dB) open-backed: 43Hz - 28kHz
Frequency Range (-10 dB): 33Hz - 45kHz
Nominal Coverage (degrees): 150°
Crossover Frequency: 640Hz, 2.6kHz
Drive Units
LF: 2 x 160mm (6.5in.)
MF: 160mm (6.5in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Recommended Amplifier Power: 50 - 350 W
Recommended High-pass Filter (Hz): 35Hz - 80Hz
Product External Dimensions (W X H X D): 9.06 x 26.77 x 4.16”
Cut-out Dimensions (H X W): 25.98 x 8.23”
Net Weight: 26.4 lbs.
Mounting Depth From Surface: 99mm (3.9in.)
Optional Rough In Frame: RIF3160L
Ideal Rear Volume (L): 60
Minimum Rear Volume (L): 30
Max SPL (dB): 110dB
Certification: THX® Certified Ultra
Wall Thickness (Maximum): 40mm (1.58in.)
Wall Thickness (Minimum): 6mm (0.24in.)
