DESCRIPTION

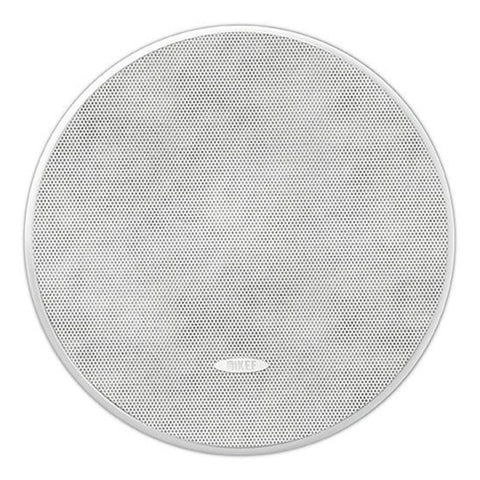

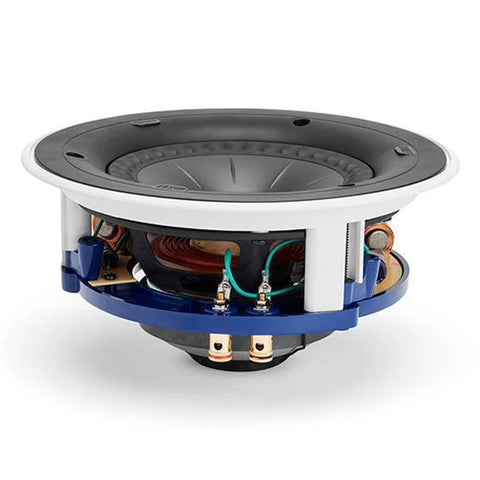

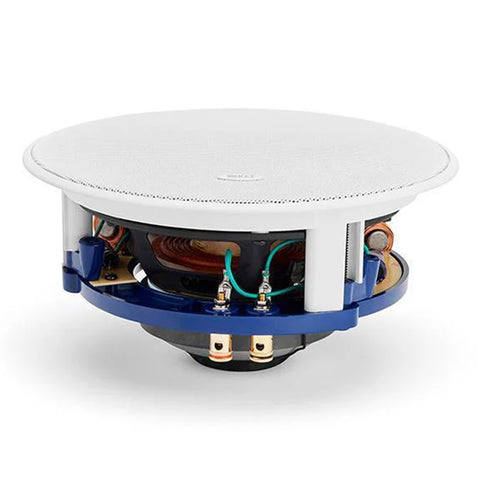

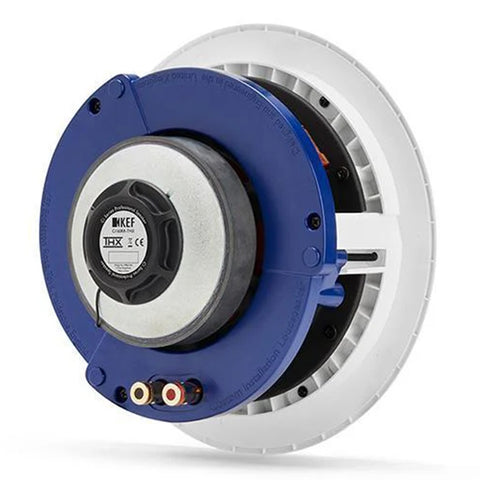

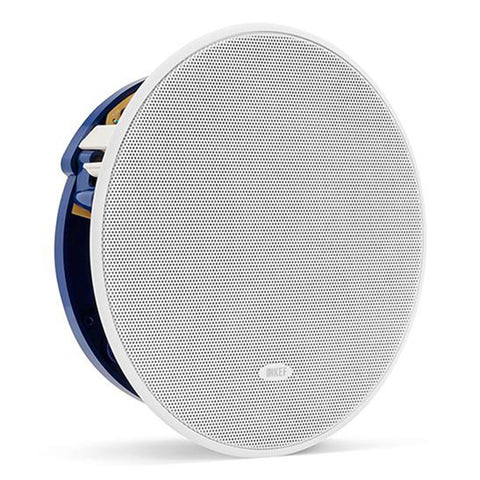

Ci160RR-THX is an ultra-high-performance loudspeaker featuring KEF's signature Uni-Q technology, designed for discreet in-ceiling or in-wall installation. As part of the Ci-R Series and a THX® Certified Ultra architectural loudspeaker, Ci160RR-THX is engineered to maintain exceptional sound quality at high outputs.
Features
THX® Certified Ultra Performance
Uni-Q® Driver Array
ide Frequency Response
High Sensitivity and Power Handling
Weather-Resistant Design (IP64)
Technology

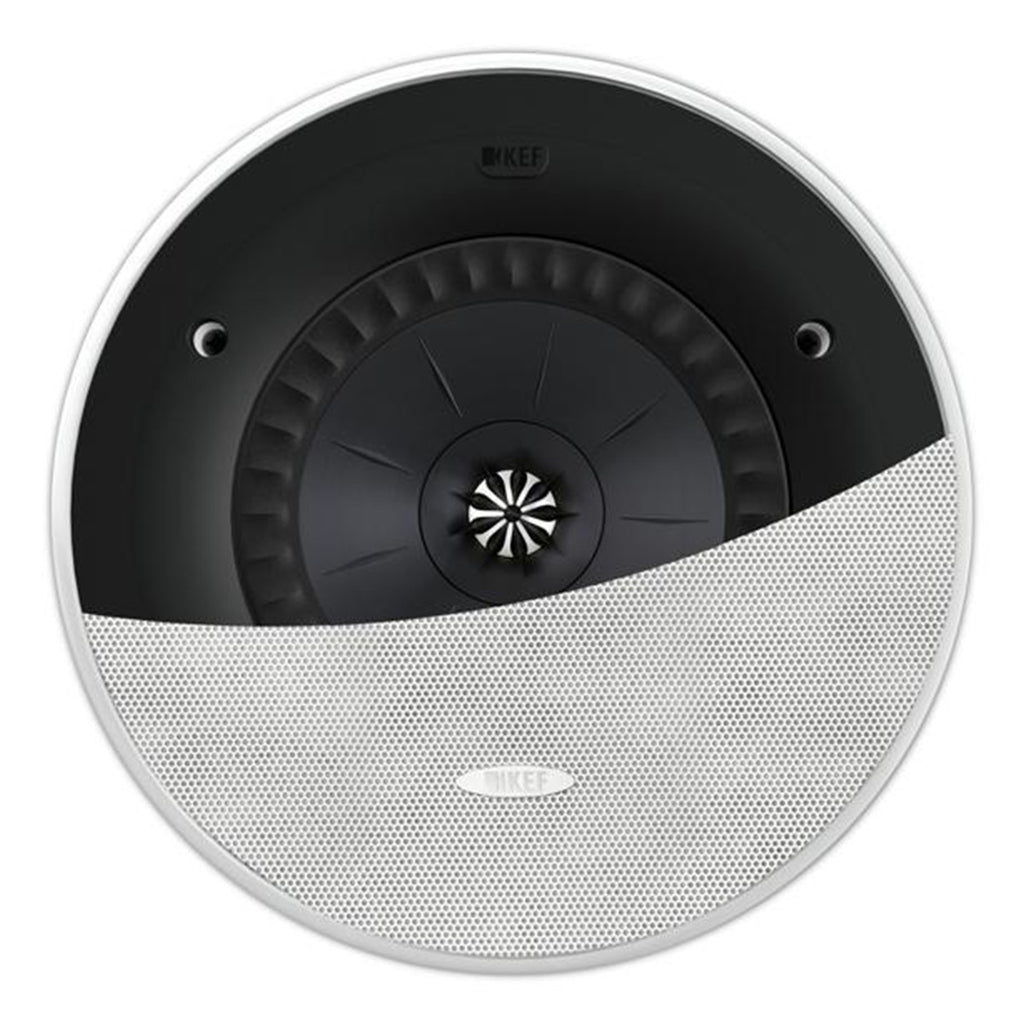

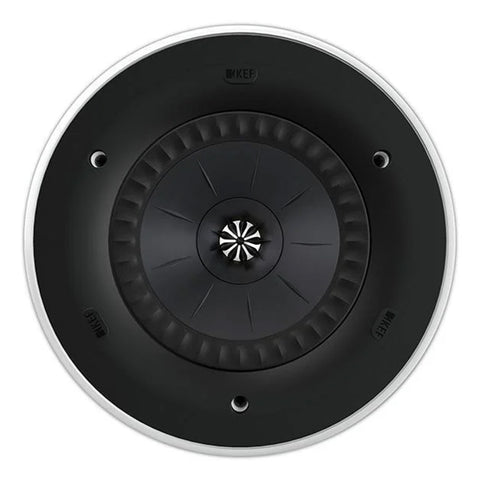

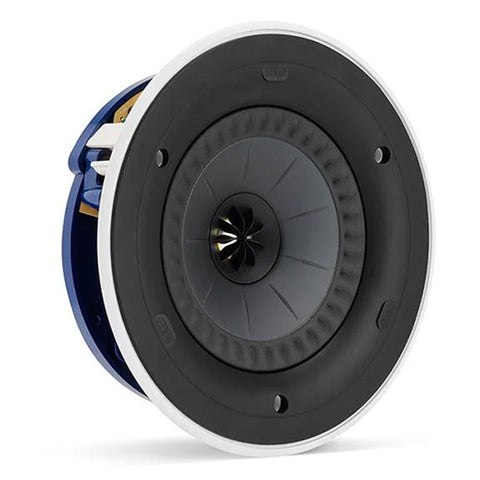

Ci160RR-THX’s Uni-Q® array boasts a 25mm high frequency tweeter mounted in the acoustic center of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a universal cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.
SPECIFICATIONS
Nominal Impedance: 4 Ohms
Sensitivity: 90dB (2.83V/ 1m)
Frequency Response (±6DB) Open-Backed: 52Hz - 24kHz
Frequency Range (-10DB): 38Hz-30kHz
Nominal Coverage (Degrees): 130
Optional Rough In Frame: RIF160R
Recommended Amplifier Power: 10-190W
Recommended High-Pass Filter (HZ): 38Hz
Product External Dimension
Diameter: 234.6mm (9.24in.)
Depth :115mm (4.53in)
Cut-Out Dimensions
Diameter: 196mm (7.71in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.460in.)
Ceiling Thickness (Minimum): 4mm (0.160in.)
Mounting Depth from Surface: 110mm (4.33in.)
MAX SPL (DB): 105
Crossover Frequency: 2.1kHz
Driver Unit
LF: 165mm (6.5in.) Uni-Q
HF: 25mm (1in.)
Net Weight: 2.94kg (6.48Ibs.)
Certification: THX ULTRA
Safety And Regulatory Compliance: IP64
