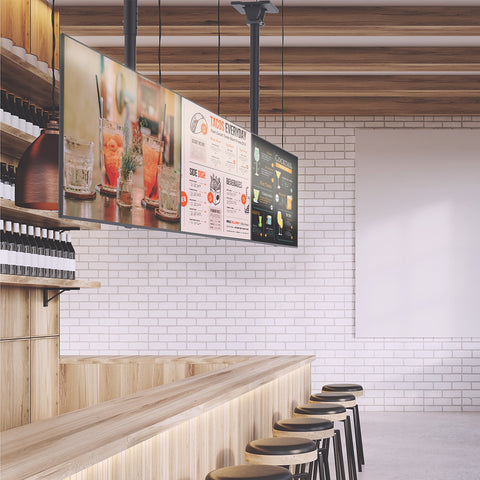

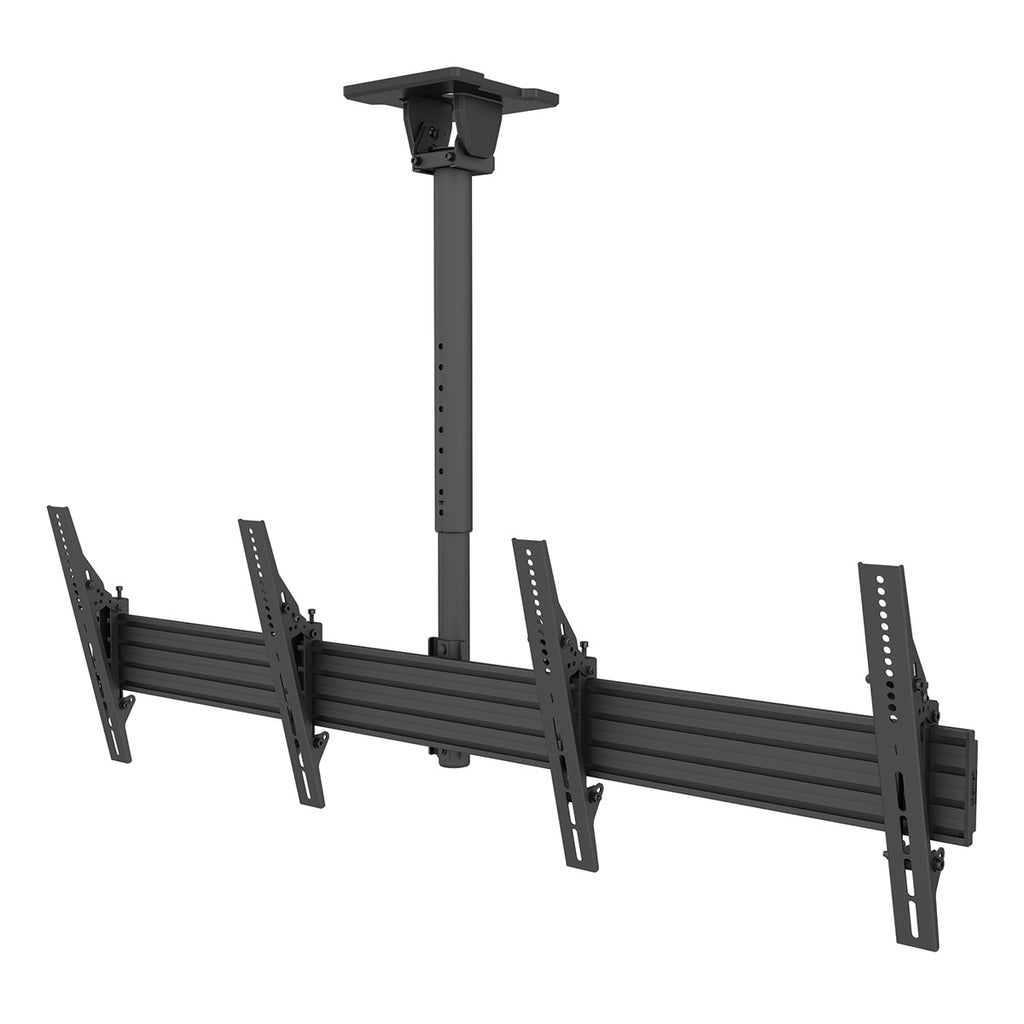

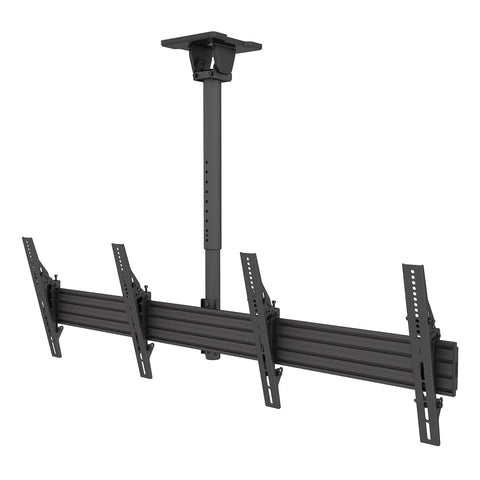

The MB Series Telescoping Ceiling Mount System is the perfect solution for commercial AV installations where wall space is limited. Designed for menu boards, digital signage, and multi-screen displays, the modular rail system supports two to four screens from 40” to 60” and up to 66 lb each. The adjustable rails allow displays to be mounted side by side in portrait or landscape orientation, while precision leveling screws help ensure clean, even alignment across every screen. Short and long pole options provide flexible height adjustment from 12.7” to 39.3” from the ceiling, making it easy to achieve proper line-of-sight in a variety of spaces. The ceiling plate swings up to 90° for installation on flat ceilings, sloped ceilings, support beams, or vertical surfaces. Integrated cable management routes wires through the hollow extension pole and mounting plate, helping create a clean, professional installation.
Features
- Fits Most 40" - 60" TVs
- Supports Up To 132 Pounds Total

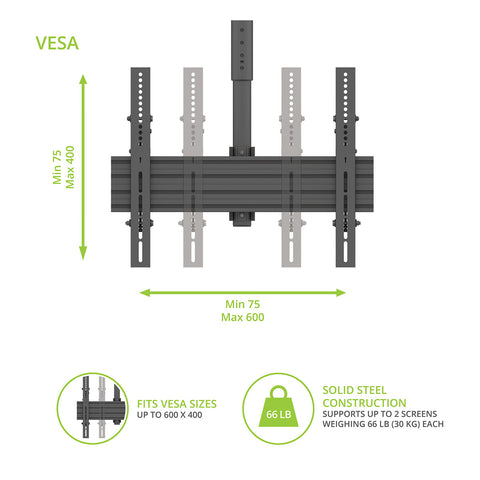

- VESA 75 x 75 - 600 x 400
- Tilts +15° To -6°
- 360° Swivel
- Short Pole Adjusts From 12.7" To 17"
- Long Pole Adjusts From 24.3" To 39.3"
- Portrait Or Landscape Orientation
- 1" Height Adjustment Increments
- Ceiling Plate Tilts Up To 90°
- Integrated Cable Management
- Modular Rail System
- Steel, Aluminum & Plastic Construction
- Includes Mounting Hardware
- Five-Year Warranty

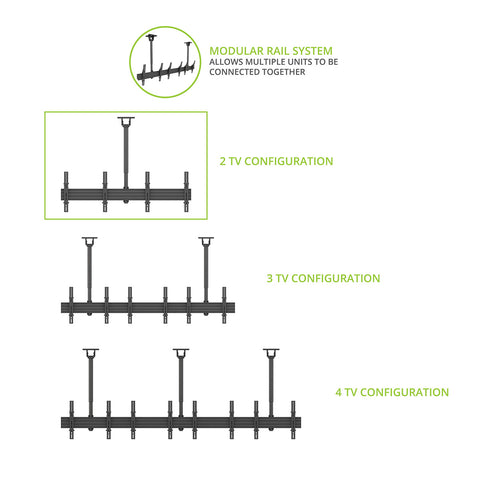

Modular Design
Available in configurations for two to four screens, the MB Series uses a modular rail system that allows displays to be placed adjacent to one another for menu boards, signage, and other commercial applications.
Easy Installation
Lightweight ceiling plates install independently from the rest of the mounting system, while the ceiling plate can swing up to 90° for use on flat ceilings, sloped ceilings, support beams, or vertical surfaces.
Precision Leveling
Each mounting bracket includes micro height adjustment, allowing you to level and align multiple screens for a clean, professional finished look.

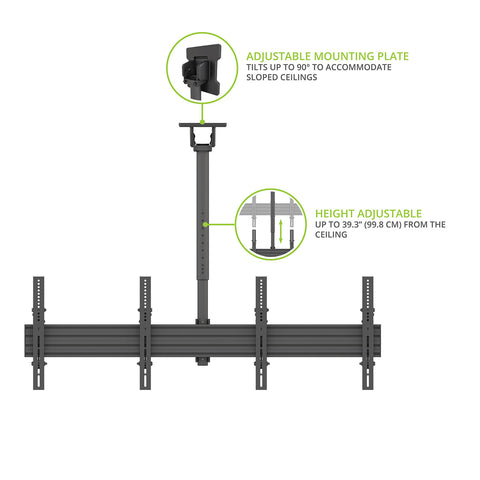

Adjustable Height
The telescoping extension pole lets you position the center of the TV mounting plate between 24.3” and 39.3” from the ceiling, or from 12.7” to 17” when using the short pole setup.
Easy Tilt
Mounting brackets provide 5°, 10°, or 15° of forward tilt to improve line-of-sight, with up to 6° of backward tilt to compensate for screen lean while keeping displays aligned.

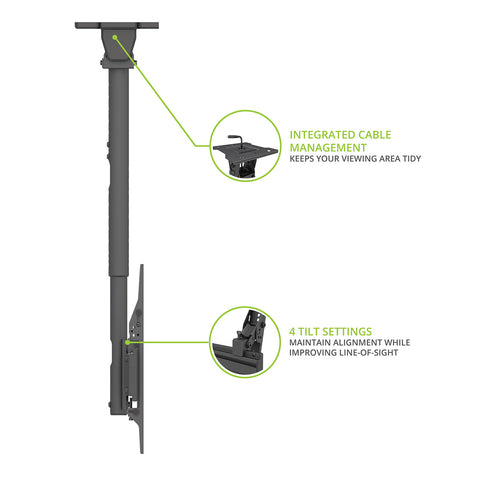

Cable Management
The hollow extension pole provides a clear path for routing cables, while an opening in the mounting plate allows wiring to continue through the ceiling for a clean installation.
