DESCRIPTION

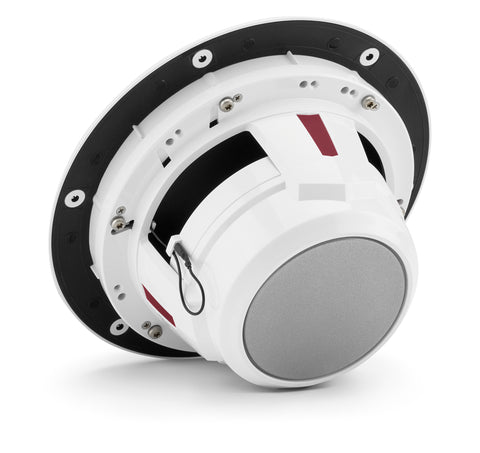

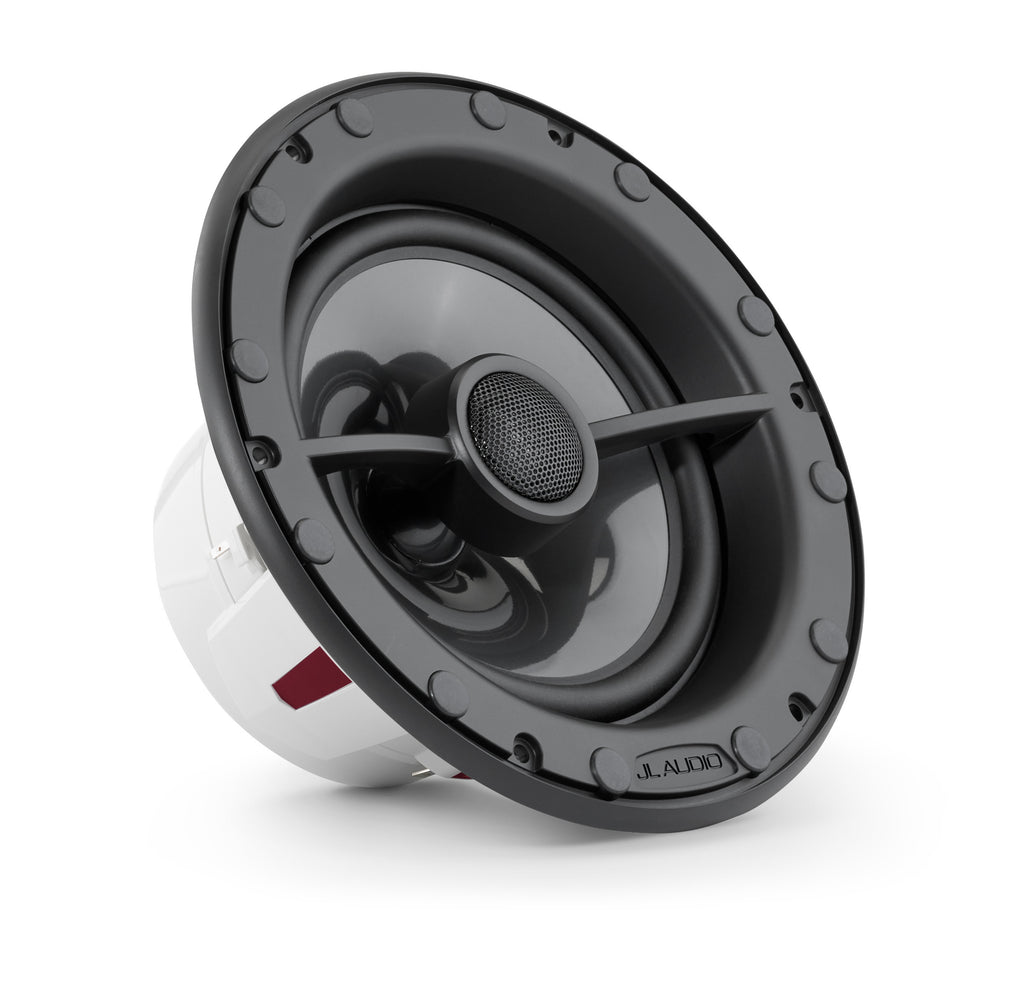

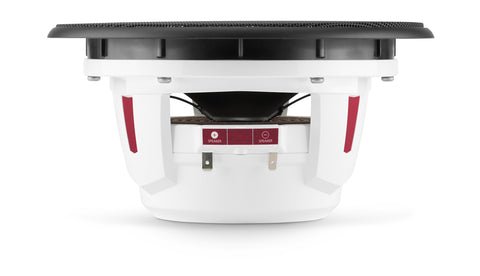

Pavilion™ in-ceiling speakers are designed for outstanding audio performance and durability in outdoor residential settings. They feature a low-profile bezel, integrated tweeter bridge, and flush-mount grille for a discreet appearance. The innovative mounting system ensures secure installation across various ceiling materials, and the mesh grille attaches magnetically and can be painted to match décor.

These speakers are equipped with a 7.7-inch DMA-optimized woofer for enhanced output and a 1.0-inch silk dome tweeter, both designed to withstand harsh outdoor environments while delivering clear high frequencies, even at high volumes. A weatherproof 2-way passive crossover and tweeter protection circuit further ensure durability.

For optimal sound, amplifiers between 80-160 W per channel are recommended, although they can be used with as little as 40 W. All Pavilion™ speakers are made at JL Audio's Miramar, Florida factory using global components.



JL Audio Pavilion PV-FX7 Outdoor In-Ceiling Speaker

  • Sale
  • $ 650
  • FREE SHIPPING
Free standard shipping on all orders within the continental US.


CONTACT YOUR NEAREST SHOWROOM
FOR CONCIERGE EXPERIENCE
Timonium - 410.308.1650
Columbia - 410.381.2100
Gaithersburg - 301.296.6202

Dedicated Support from Start to Finish

  • Concierge-Level Experience tailored to your needs
  • Assistance with Troubleshooting and Product Insights
  • Expert help for Product Set-Up
  • Fast & Free Shipping on all orders
DESCRIPTION

Pavilion™ in-ceiling speakers are designed for outstanding audio performance and durability in outdoor residential settings. They feature a low-profile bezel, integrated tweeter bridge, and flush-mount grille for a discreet appearance. The innovative mounting system ensures secure installation across various ceiling materials, and the mesh grille attaches magnetically and can be painted to match décor.

These speakers are equipped with a 7.7-inch DMA-optimized woofer for enhanced output and a 1.0-inch silk dome tweeter, both designed to withstand harsh outdoor environments while delivering clear high frequencies, even at high volumes. A weatherproof 2-way passive crossover and tweeter protection circuit further ensure durability.

For optimal sound, amplifiers between 80-160 W per channel are recommended, although they can be used with as little as 40 W. All Pavilion™ speakers are made at JL Audio's Miramar, Florida factory using global components.



FEATURES
  • Satin Black includes Black Trim Ring & Black Grille
  • Satin White includes White Trim Ring & White Grille
  • Sold individually
TECHNICAL SPECS
  • Continuous Power Handling (RMS): 80 W
  • Recommended Amplifier Power (RMS): 40 - 160 W / Ch.
  • Efficiency: 91.0 dB @ 1 W / 1 m
  • Nominal Impedance: 4 Ω
  • Frequency Response: 45 Hz - 25 KHz ± 3 dB
  • Frame Outer Diameter: 9.13 in / 232 mm
  • Bolt Hole Circle Diameter: 8.18 in / 208 mm
  • Frontal Grille Protrusion*: 0.38 in. / 10 mm
  • Mounting Hole Diameter: 7.625 in / 194 mm
  • Mounting Depth: 4.26 in. / 108 mm
  • Net Weight: 5.35 lb / 2.43 kg

*Frontal grille protrusion measured from mounting surface
