DESCRIPTION

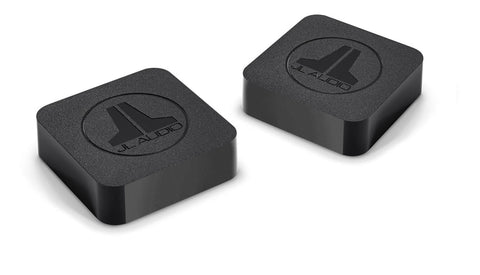

The JLINK™ TRX system uses advanced wireless technology to deliver high-fidelity sound throughout your home without the need for RCA signal cables. Operating at 2.4 GHz, it wirelessly connects two line-level audio devices up to 100 feet (30 meters) apart, enabling crystal-clear stereo sound transmission. The system is compatible with most audio equipment via RCA connectors, and its compact design allows the transmitter and receiver to be discreetly hidden. It also includes a JLINK™ port for direct connection to compatible JL Audio products. Ideal for installations with remote sources, long cable runs, or challenging layouts, the JLINK™ TRX offers flexibility in positioning audio equipment.
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Fast & Free Shipping on all orders
DESCRIPTION
The JLINK™ TRX system uses advanced wireless technology to deliver high-fidelity sound throughout your home without the need for RCA signal cables. Operating at 2.4 GHz, it wirelessly connects two line-level audio devices up to 100 feet (30 meters) apart, enabling crystal-clear stereo sound transmission. The system is compatible with most audio equipment via RCA connectors, and its compact design allows the transmitter and receiver to be discreetly hidden. It also includes a JLINK™ port for direct connection to compatible JL Audio products. Ideal for installations with remote sources, long cable runs, or challenging layouts, the JLINK™ TRX offers flexibility in positioning audio equipment.
FEATURES
Outstanding fidelity in subwoofer and full-range applications
Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)
RCA-type input/output connectors are compatible with most audio equipment
Up to 3 JLINK™ transmitters can be used concurrently (3 channels to choose from)
Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter
Receiver includes JLINK™ port for use with compatible JL Audio products
TECHNICAL SPECS
S/N Ratio: 80 dB @ 1 kHz, 500 mV
THD+N: 0.02% @ 1 kHz, 500 mV
Crosstalk: >75 dB @ 1 kHz, 500 mV
Frequency Response: 16 Hz – 22 kHz (+0, -1dB)
Wireless Range: 100 feet / 30 meters (typical)
Wireless Channels: 3 available, selectable via switch
Latency: 14 mS
Operating Temperature: 32 to 104° F / 0 to 40° C
AC Power Adaptor: 1 A, 5 volts DC

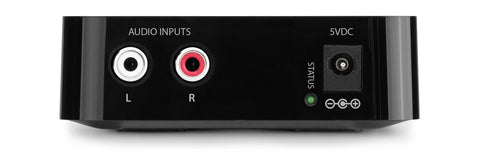

Transmitter Specifications
Input Impedance: 25 kΩ
Outputs: Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
Receivers Supported: Up to 4
Bit Depth/Sample Rate: 16 Bit / 48 kHz
Power Requirements: 200 mA, 5 volts (via AC adaptor)
Height (H): 1.12 in / 28.5 mm
Width (W): 3.5 in / 89 mm
Depth (D): 3.5 in / 89 mm
Inputs: Analog, left and right RCA-type

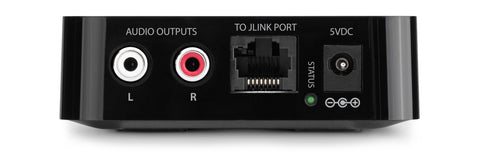

Receiver Specifications
Inputs: Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
Outputs: Analog, left & right RCA-type Analog via JLINK port to compatible product
Output Impedance: 250 Ω
Full Scale Output Voltage: 1.2 V
Power Requirements: 100 mA, 5 volts (via AC adaptor or JLINK port)
