DESCRIPTION
The CR-1 Active Subwoofer Crossover is designed to seamlessly integrate subwoofers with main speakers, enhancing dynamics, imaging, and low-level detail for a more cohesive sound experience. Developed by audiophiles, it offers precise tuning features and a commitment to analog signal purity.
It uses two banks of precision Linkwitz-Riley low-pass and high-pass filters, with DACs for superior tracking and left/right channel balance. The CR-1 also includes unique damping controls to improve acoustic summing and a rotary control for adjusting subwoofer-to-main speaker levels.
Built with high-quality components like precision resistors, audio-grade op-amps, and film capacitors, CR-1 minimizes distortion and noise. It’s adaptable for studio, mastering, and audiophile two-channel setups, and features a bypass for switching between two-channel and multi-channel systems. The CR-1 is the ultimate tool for subwoofer integration, delivering an exceptional listening experience.

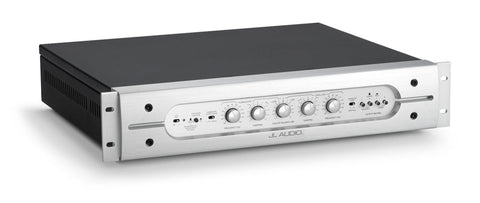

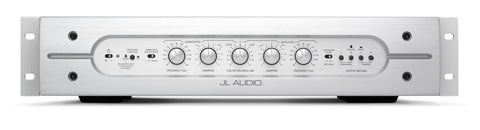

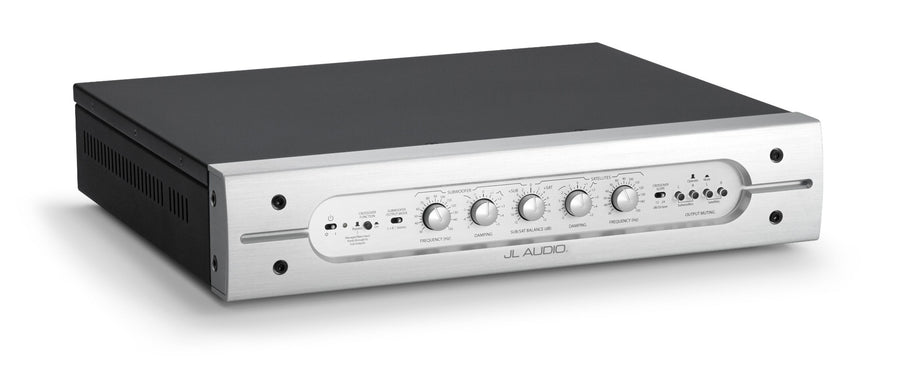

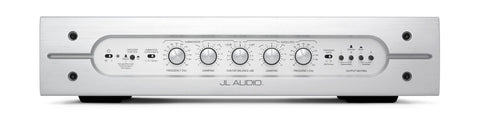

JL Audio CR-1 Active Subwoofer Crossover
Sale
$ 3,500
FREE SHIPPING
Free standard shipping on all orders within the continental US.
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Fast & Free Shipping on all orders
DESCRIPTION
The CR-1 Active Subwoofer Crossover is designed to seamlessly integrate subwoofers with main speakers, enhancing dynamics, imaging, and low-level detail for a more cohesive sound experience. Developed by audiophiles, it offers precise tuning features and a commitment to analog signal purity.
It uses two banks of precision Linkwitz-Riley low-pass and high-pass filters, with DACs for superior tracking and left/right channel balance. The CR-1 also includes unique damping controls to improve acoustic summing and a rotary control for adjusting subwoofer-to-main speaker levels.

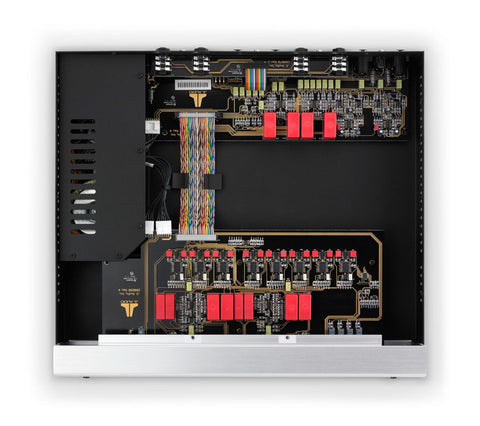

Built with high-quality components like precision resistors, audio-grade op-amps, and film capacitors, CR-1 minimizes distortion and noise. It’s adaptable for studio, mastering, and audiophile two-channel setups, and features a bypass for switching between two-channel and multi-channel systems. The CR-1 is the ultimate tool for subwoofer integration, delivering an exceptional listening experience.
FEATURES
Crossover Function: Bypass or On, selectable via front panel switch
Subwoofer Output Modes: Mono L+R or Stereo, selectable via front panel switch
Crossover Frequency Range: 30 Hz – 150 Hz, variable with independent high-pass and low-pass filter frequency controls on front panel
Subwoofer/Satellite Balance Control: +/– 12 dB, fully variable via front panel knob
Filter Damping Controls: Q: 0.3 - 1.4 @ 12 dB/octave, via front panel knob, Q: 0.16 - 4.0 @ 24 dB/octave, via front panel knob
For either slope, Q = 0.5 at top dead center “0” mark
Filter Slope(s): 12 dB/octave or 24 dB/octave,
Linkwitz-Riley selectable via front panel switch
Output Muting: independent for each output, via front panel push-button switches
Ground Lift: Isolated/Grounded, via rear panel switch
