DESCRIPTION

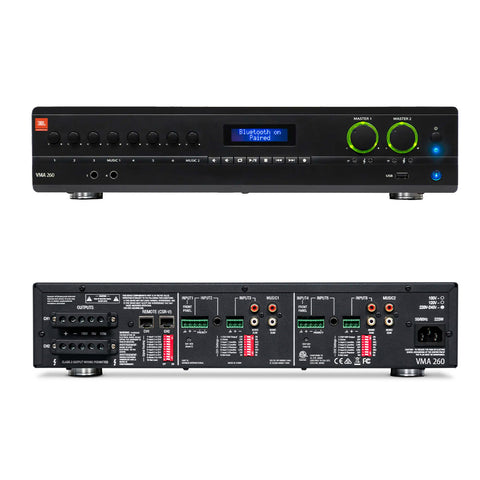

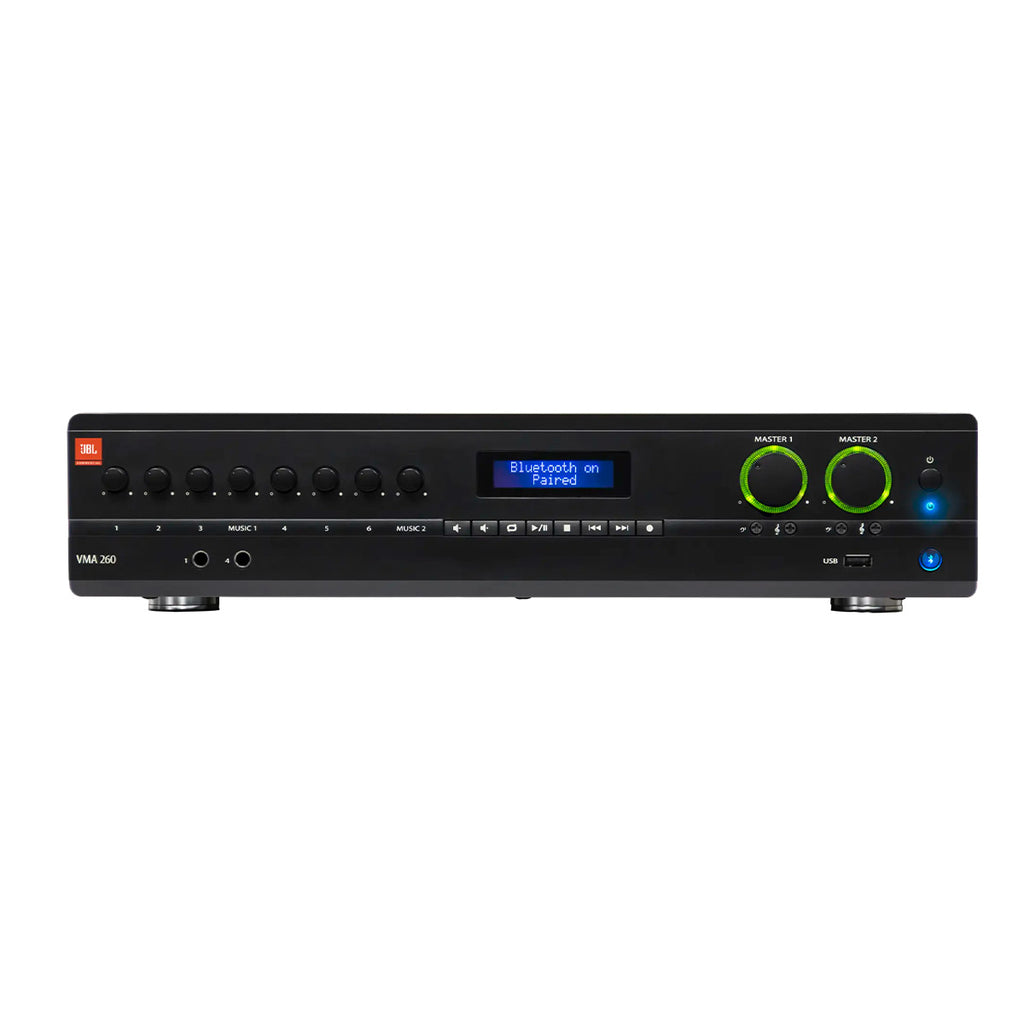

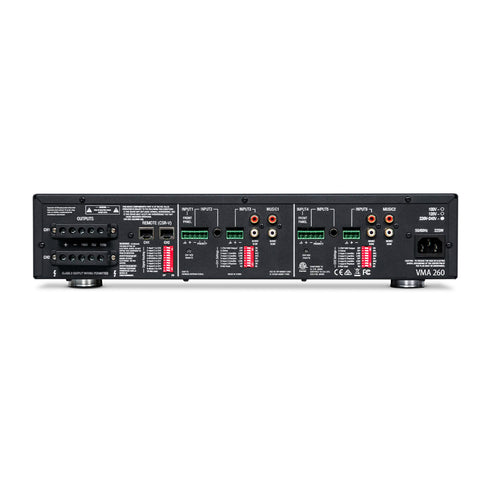

The VMA260 is a compact 60W commercial mixer amplifier designed for flexible multi-source audio systems. It delivers 60 watts per channel into 4 or 8 ohms with low distortion, and supports both low-impedance and 70V/100V distributed audio systems. With eight inputs, two outputs, and independent bass and treble controls per channel, it offers versatile system tuning and integration. The unit provides a wide frequency response, solid signal-to-noise performance, and built-in phantom power for microphone inputs, making it well-suited for paging, background music, and small-to-medium commercial installations.
Features
8 Inputs with 2 Outputs of 60-Watts of Power
Independent Bass and Treble Controls for Each Output Channel
100V and 70V Output, or 4Ω/8Ω
Paging Chime, and Priority Muting
Works with JBL CSR-V Wall Controllers
Balanced Mic/Line Inputs; RCA (.775V) Inputs
Rack Mounting Hardware Included
SPECIFICATIONS
Max Output Power per Channel: 60W into 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD
Insertion Loss: 1dB maximum (70V & 100V outputs)
Number of Inputs: 8
Number of Outputs: 2
Tone Controls: Bass ±14dB @ 50Hz; Treble ±14dB @ 10kHz
Input Sensitivity: Mic Input: 5.5mVRMS; Line Input: 1.3VRMS; RCA Input (stereo in): 130mVRMS
Frequency Response:
4/8 Ω Output: 20Hz–20kHz, ±2dB
70V/100V Outputs: 80Hz–15kHz, ±3dB
Total Harmonic Distortion (THD): <0.5%, 20Hz–20kHz
Signal to Noise Ratio: >76dB
Input Impedance:
Mic: 400 Ω
Line: 20 kΩ (balanced)
RCA: 50 kΩ
Phantom Power: 27VDC
Crosstalk: -70 dB
Nominal AC Line Voltages: 100V, 120V, 220V, 220–240V, 50/60 Hz
Minimum Load Impedance: 4 Ω, 80 Ω, 160 Ω
Operating Temperature/Humidity: 0°C to 35°C @ 95% R.H. (non-condensing)
Storage Temperature: -20°C to 85°C
Net Weight: 25.5 lbs.
Dimensions (W x H x D): 17.0 × 3.5 x 16.3"
Shipping Weight: 30.8 lbs.
