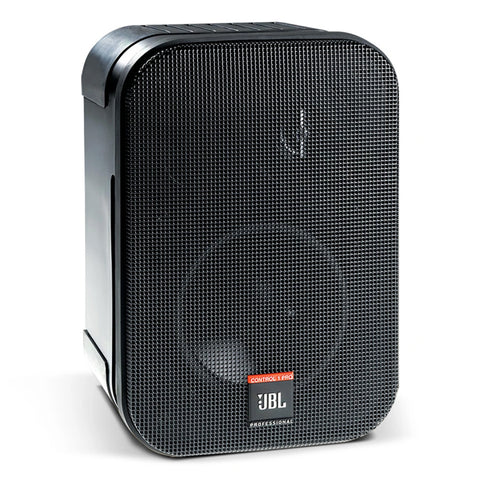

CSS-1S/T is a versatile, compact two-way loudspeaker for 100V or 70V distributed speaker lines or 8 ohm direct mode. Its 135 mm low frequency driver and 19 mm polycarbonate dome tweeter deliver full-range sound for foreground or background music with strong speech clarity. The included wall-mount bracket allows flexible aiming, and the cabinet can also sit on a shelf.
Features
- 10 Watt Multi-Tap Transformer
- 100V Or 70V Lines
- 8 Ohm Direct Setting
- Included Wall-Mounting Bracket
- Full-Range Sound Quality
- Maximum Speech Clarity
Applications

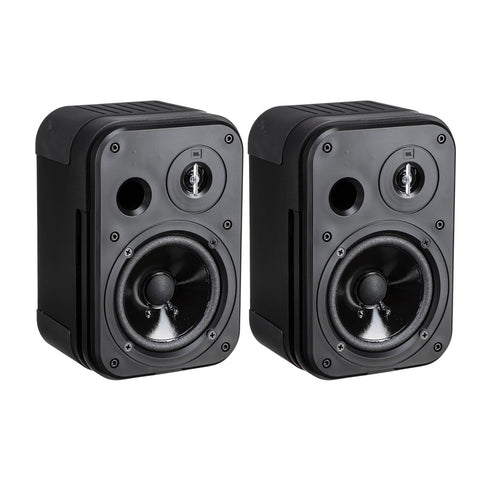

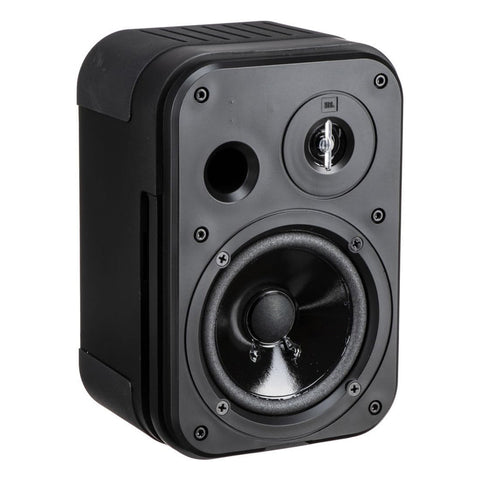

CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5¼ inch) low frequency loudspeaker and 19 mm (¾ inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.
Transformer & Power
A multi-tap, multi-voltage transformer provides taps of 10 and 5 Watts when driven from a 100V distributed speaker line and 10, 5 and 2.5 Watts when driven from a 70V distributed speaker line. Tap selection is accomplished via a switch that is accessed from the back panel. The speaker has a power handling of 60 Watts continuous average pink noise (100 hrs continuously) when set in its 8 Ohm Direct setting.
Mounting
The rugged enclosure is fitted with an included, easy-to-install ball-type wall-mount bracket that can pivot to aim the speaker in a variety of directions, or the speaker can be aimed straight out from the wall. The flat bottom surface of the cabinet allows the speaker to be set on a surface such as a shelf.
