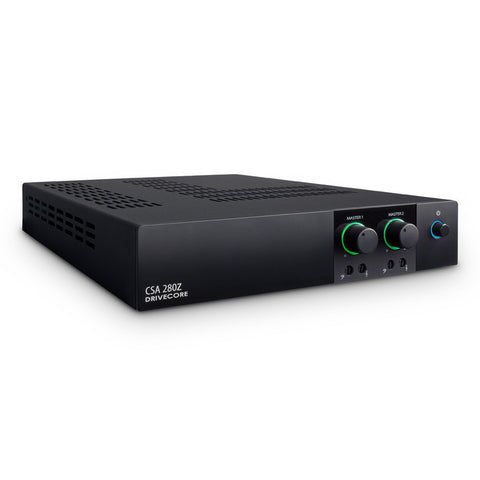

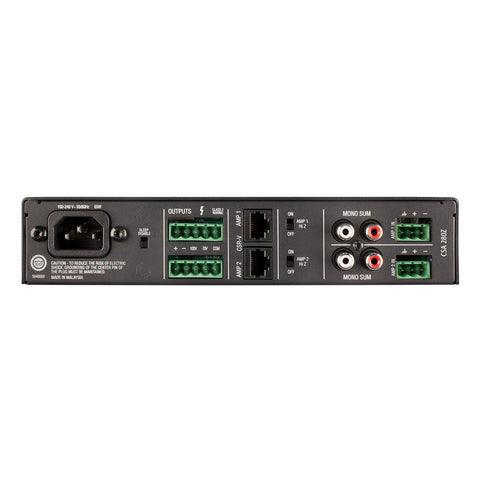

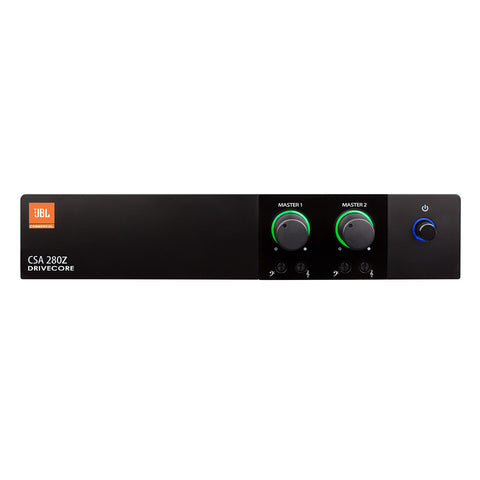

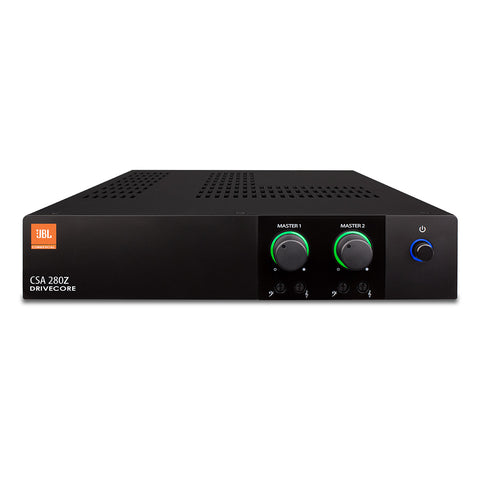

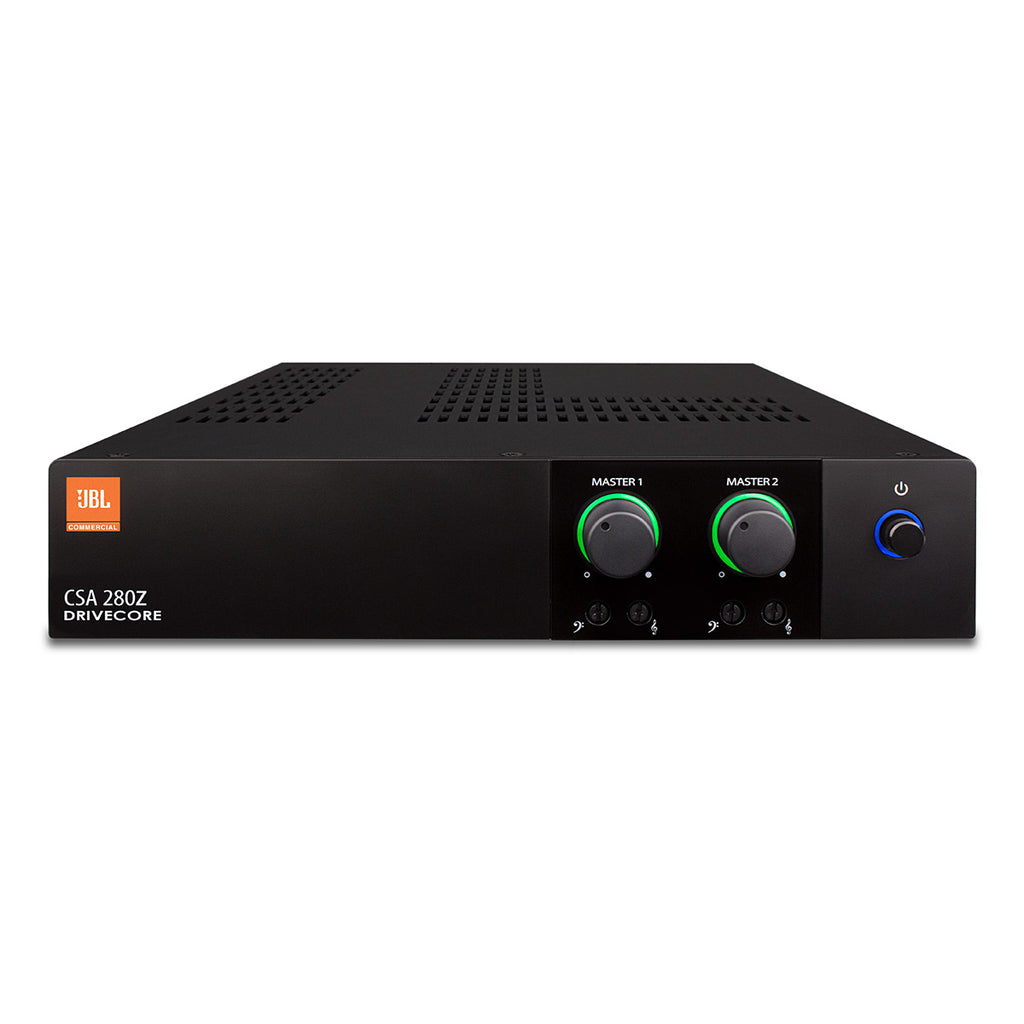

JBL Professional CSA 280Z 2 x 80W Commercial Series Power Amplifier
$630.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, we continue to set new standards in commercial power amplifier technology. Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every Commercial Series amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.
Features
2 Output Channels with 80W Per Channel
Built-in 70V and 100V
Fanless, Space-Saving 1U Design
Sleep Mode Disable Function
Energy-Efficient Amplifier
Energy Star® Certified
Universal Power Supply
SPECIFICATIONS
Rated Power: 80W
Output Channels: 2
Insertion Loss: 1 dB Maximum
Input Sensitivity: 1.4V RMS
Frequency Response: +/- 0.5dB
Total Harmonic Distortion: <0.5%
Signal-To-Noise Ratio: >100dB
Input Impedance Euro Block: 20 kΩ Balanced
Input Impedance RCA: 50 kΩ
Maximum Input Level: +22dBu Nominal
Crosstalk: >70 dB
Bass Control: +/-10dB @100Hz
Treble Control: +/-10dB @10kHz
Nominal AC Line Voltages: 100-240V, 50/60 Hz
Minimum Load Impedance Low-Z: 4 Ω
Minimum Load Impedance 70V: 60 Ω
Minimum Load Impedance 100V: 120 Ω
Operating Temperature/Humidity: 0°C To 35°C @ 95% R.H. Non-Condensing
Storage Temperature: -20°C To 85°C
Net Weight: 8.8 lb
Dimensions (W x H x D): 8.6 in x 1.7 in x 11.9"
DESCRIPTION
By combining years of innovation, invention and insight from HARMAN brands, JBL® Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore™ Technology, we continue to set new standards in commercial power amplifier technology. Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every Commercial Series amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz.
Features
2 Output Channels with 80W Per Channel
Built-in 70V and 100V
Fanless, Space-Saving 1U Design
Sleep Mode Disable Function
Energy-Efficient Amplifier
Energy Star® Certified
Universal Power Supply
SPECIFICATIONS
Rated Power: 80W
Output Channels: 2
Insertion Loss: 1 dB Maximum
Input Sensitivity: 1.4V RMS
Frequency Response: +/- 0.5dB
Total Harmonic Distortion: <0.5%
Signal-To-Noise Ratio: >100dB
Input Impedance Euro Block: 20 kΩ Balanced
Input Impedance RCA: 50 kΩ
Maximum Input Level: +22dBu Nominal
Crosstalk: >70 dB
Bass Control: +/-10dB @100Hz
Treble Control: +/-10dB @10kHz
Nominal AC Line Voltages: 100-240V, 50/60 Hz
Minimum Load Impedance Low-Z: 4 Ω
Minimum Load Impedance 70V: 60 Ω
Minimum Load Impedance 100V: 120 Ω
Operating Temperature/Humidity: 0°C To 35°C @ 95% R.H. Non-Condensing
