DESCRIPTION

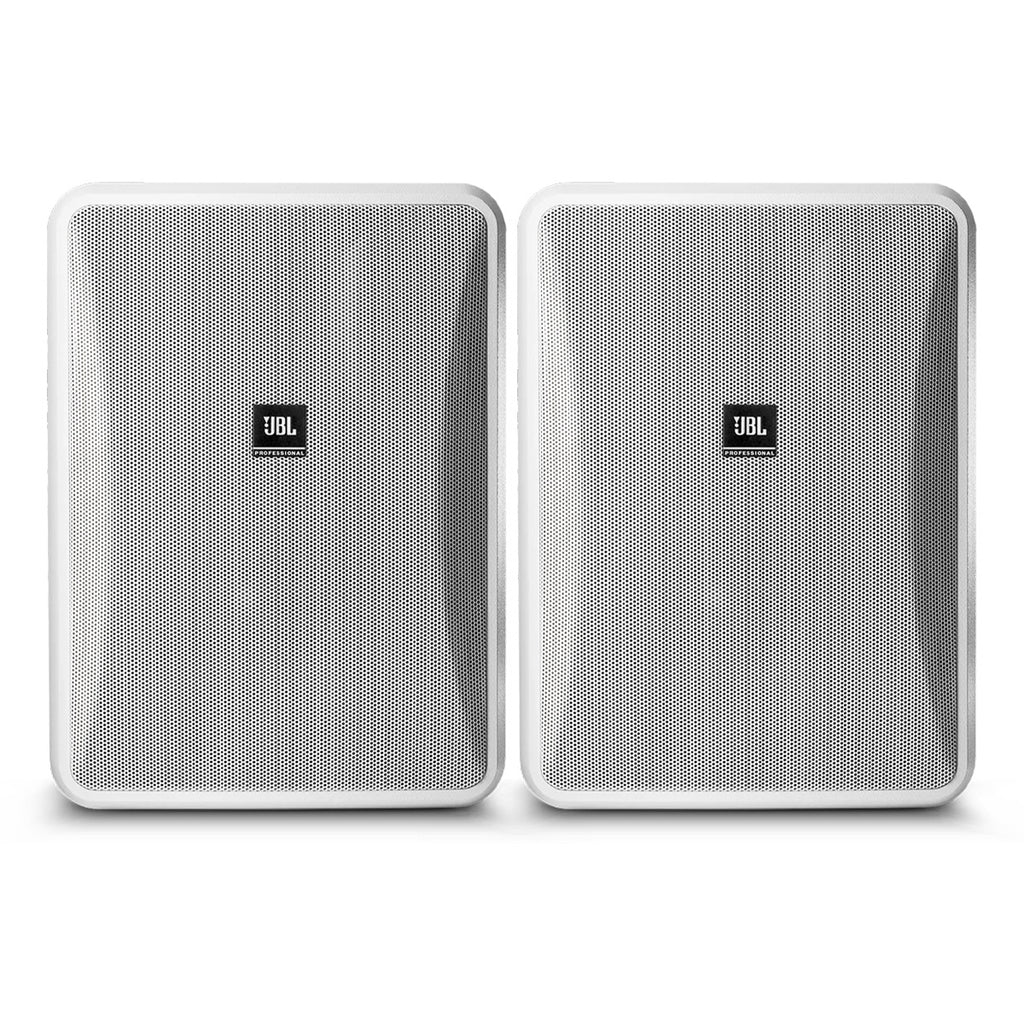

The Control® 28-1L is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
Features
8” Woofer with Woven Fiberglass Cone
1” PEI Diaphragm Tweeter with Fluid Cooling
Contemporary, High-Design Appearance
Built-In InvisiBall® Mounting Hardware
Weather Resistant Enclosure & Transducers
Wide 100° x 100° Coverage
120 Watt Power Handling (240 Watt program)
Broad Frequency Response: 45 Hz – 20 kHz
SPECIFICATIONS
General
Frequency Range (-10 dB): 45 Hz to 20 kHz
Frequency Response (+/-3 dB): 62Hz - 16 kHz
Power Rating: 240 W Continuous Program (2 hrs) ; 120 W (480W peak), Continuous Pink Noise (2 hrs) ; 90 W (360W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dB peak)
Low Frequency Transducer: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency Transducer: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Dimensions
Dimensions (W x H x D): 11.1” x 15.2” x 8.6”; 10.9” deep total when mounted on InvisiBall wall-mount bracket.
Net Weight: 13.5 lbs.
Design
Enclosure Material: High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Installation
InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Environmental
IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
Termination
Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating: ROHS-compliant
