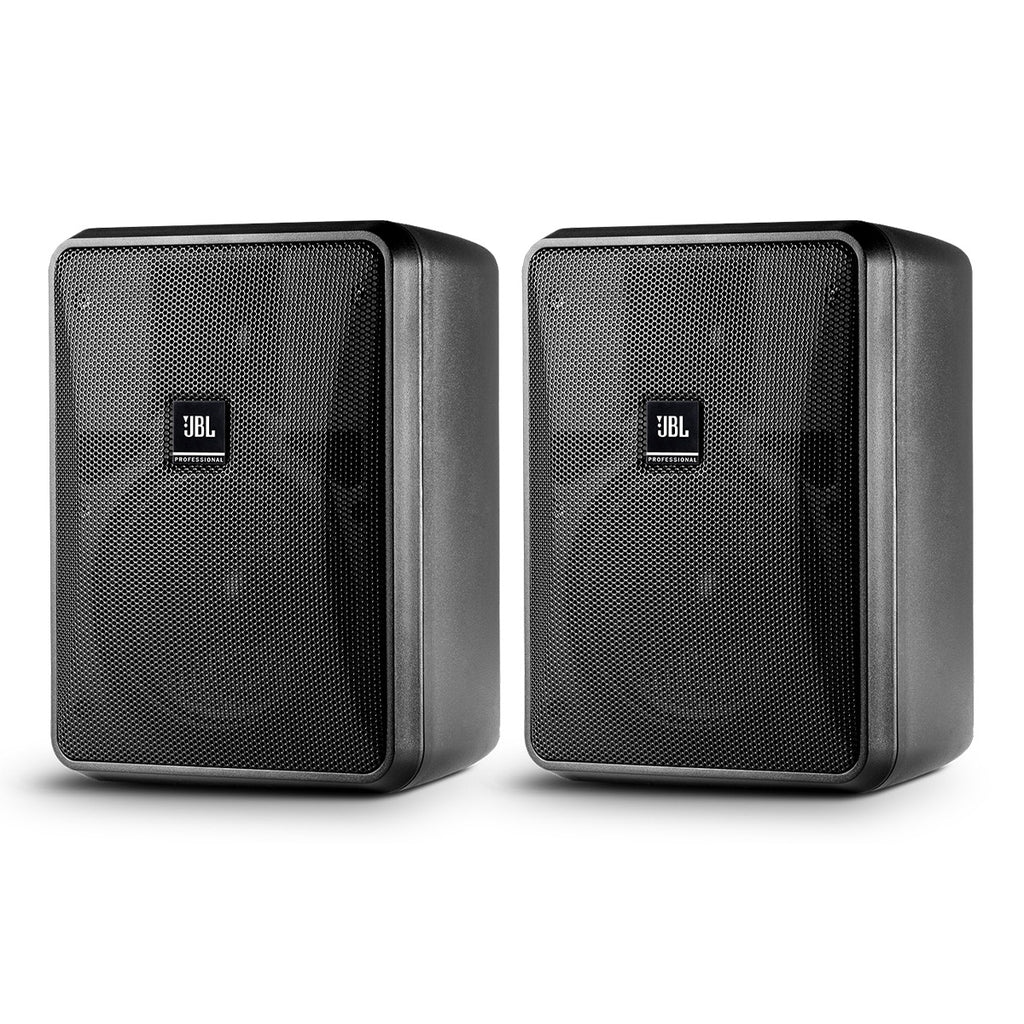

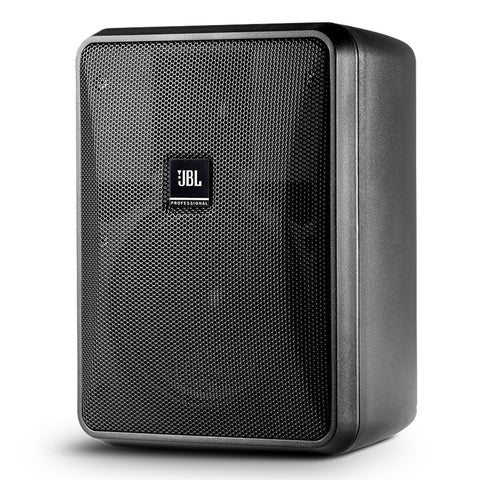

JBL Professional Control 25-1L 8-Ohm 2-Way 5.25 Inch Indoor/Outdoor Speaker - Pair (Black)
$412.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The Control® 25-1L is a two-way 5-¼” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail, restaurants, hospitality, education & other compact indoor/outdoor music or paging applications.
Features
5-¼” Woofer with Woven Fiberglass Cone
3/4” PEI Diaphragm Tweeter with Fluid Cooling
Built-in InvisiBall® Mounting Hardware
Weather Resistant Enclosure & Transducers
Wide 100° x 100° Coverage
100 Watt Power Handling (200 Watt Program)
Broad Frequency Response of 60 Hz – 20 kHz
SPECIFICATIONS
General
Frequency Range (-10 dB): 60 Hz to 20 kHz
Frequency Response (+/-3 dB): 85Hz - 17 kHz
Power Rating: 200 W Continuous Program (2 hrs) ; 100 W (400W peak), Continuous Pink Noise (2 hrs) ; 75 W (300W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL: 110 dB ave. Continuous Pink Noise (116 dB peak)
Low Frequency Driver: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency Driver: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Included Accessories: InvisiBall™ wall-mounting system, 6 mm x 100 mm hex key
Dimensions (H x W x D): 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight: 3.0 kg (6.7 lbs)
Design
Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.

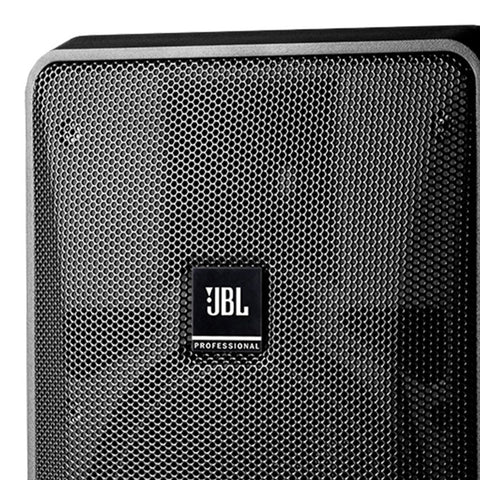

Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Installation
InvisiBall wall-mounting system included.
Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&- WH) U-bracket.
Secondary safety attachment loop point on back panel.
Environmental
IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV.
Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray.
Termination
Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers.
Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2).
Agency Rating: ROHS-compliant
DESCRIPTION
The Control® 25-1L is a two-way 5-¼” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1L an excellent choice for a wide variety of applications, including retail, restaurants, hospitality, education & other compact indoor/outdoor music or paging applications.
Features
5-¼” Woofer with Woven Fiberglass Cone
3/4” PEI Diaphragm Tweeter with Fluid Cooling
Built-in InvisiBall® Mounting Hardware
Weather Resistant Enclosure & Transducers
Wide 100° x 100° Coverage
100 Watt Power Handling (200 Watt Program)
Broad Frequency Response of 60 Hz – 20 kHz
SPECIFICATIONS
General
Frequency Range (-10 dB): 60 Hz to 20 kHz
Frequency Response (+/-3 dB): 85Hz - 17 kHz
Power Rating: 200 W Continuous Program (2 hrs) ; 100 W (400W peak), Continuous Pink Noise (2 hrs) ; 75 W (300W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL: 110 dB ave. Continuous Pink Noise (116 dB peak)
Low Frequency Driver: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency Driver: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Included Accessories: InvisiBall™ wall-mounting system, 6 mm x 100 mm hex key
